Turn Signal Light Switch (in Lighting Switch) Inspection

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Check for continuity between terminals at each switch position as shown in the following figure. If check result is not as specified, replace.

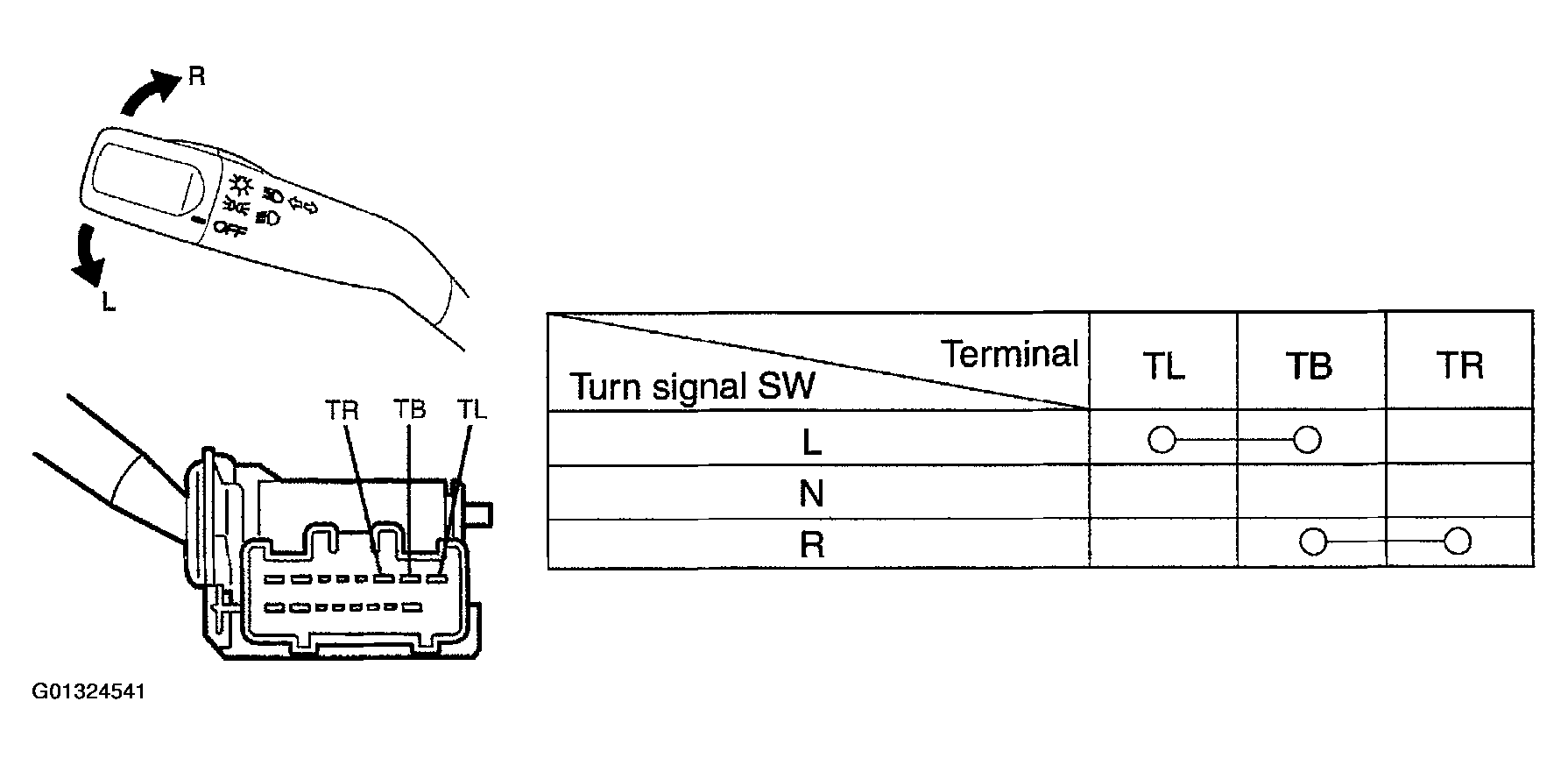

Fig 1: Inspecting Turn Signal Light Switch
G01324541Courtesy of SUZUKI OF AMERICA CORP.
