Headlight Diode Removal and Installation: Notes

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove heater blower unit referring to BLOWER UNIT REMOVAL AND INSTALLATION .
  2. Remove headlight diode (1) from main harness (2) as shown in the figure.

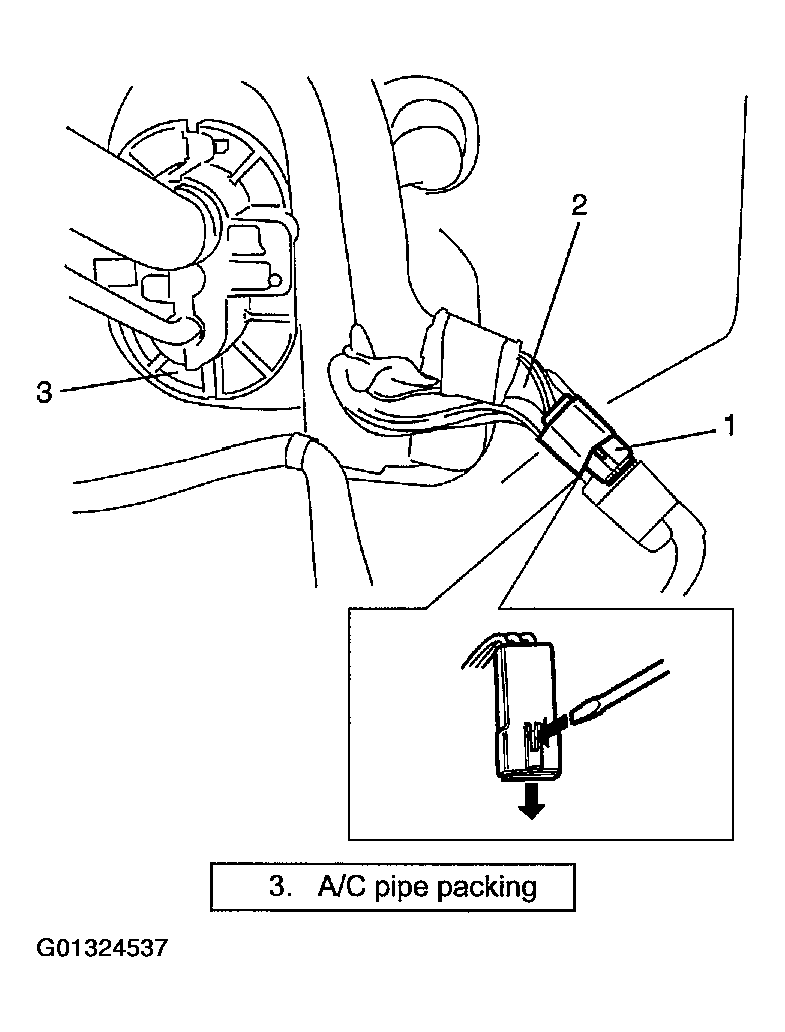

    Fig 1: Removing Headlight Diode From Main Harness
    G01324537Courtesy of SUZUKI OF AMERICA CORP.
