Headlight Bulb Replacement
WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Don't touch when the bulb is hot.

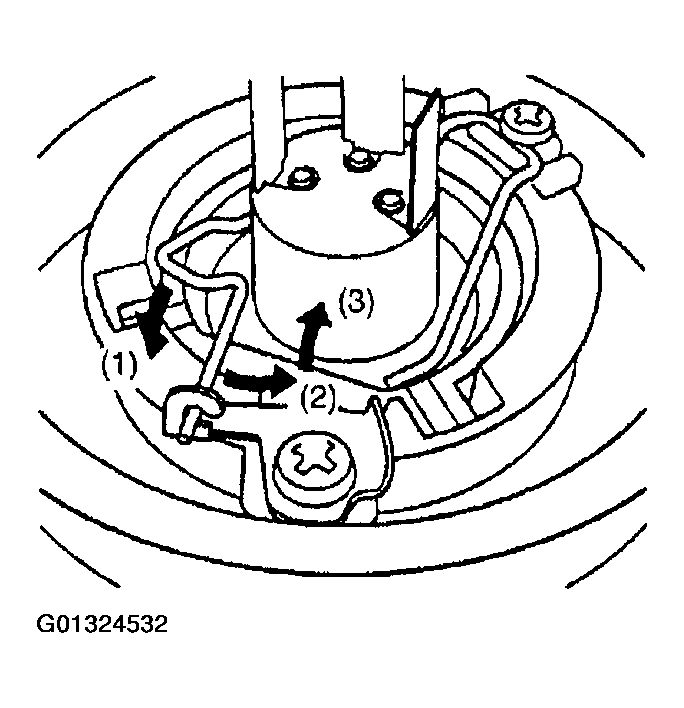

- Disconnect negative (-) cable at battery.
- Disconnect connector from bulb.
- Remove socket cover and bulb.
Courtesy of SUZUKI OF AMERICA CORP.
- Replace bulb and install in reverse removal procedure.
