Front Fog Light Relay Inspection

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative (-) cable from battery.
Remove front fog light relay (1) from fuse/relay box (2).

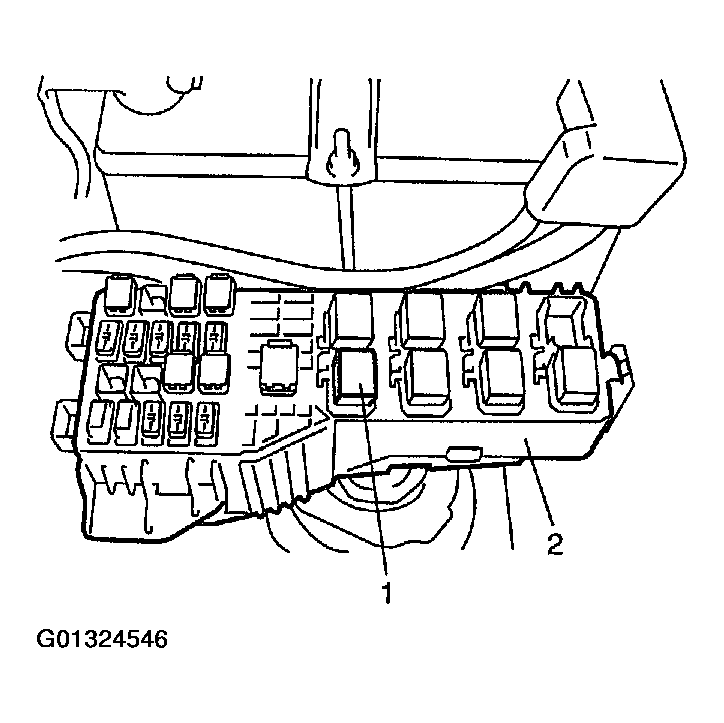

Fig 1: Locating Front Fog Light Relay
Courtesy of SUZUKI OF AMERICA CORP.
Check that there is no continuity between terminal "c" and "d". If there is continuity, replace relay.
Check that there is continuity between terminals "c" and "d" when a 12 V battery is connected to terminals "a" and "b".
If malfunction is found, replace it with a new one.

Fig 2: Checking Front Fog Light Relay
Courtesy of SUZUKI OF AMERICA CORP.
