Front Fog Light Bulb Replacement
WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- To avoid danger of being burned, don't touch when bulb is hot.
- Don't touch glass surface of bulb, to avoid deteriorate as the case may be unclear when bulb light on at dirty condition.
- Remove front fog light referring to FRONT FOG LIGHT REMOVAL AND INSTALLATION .

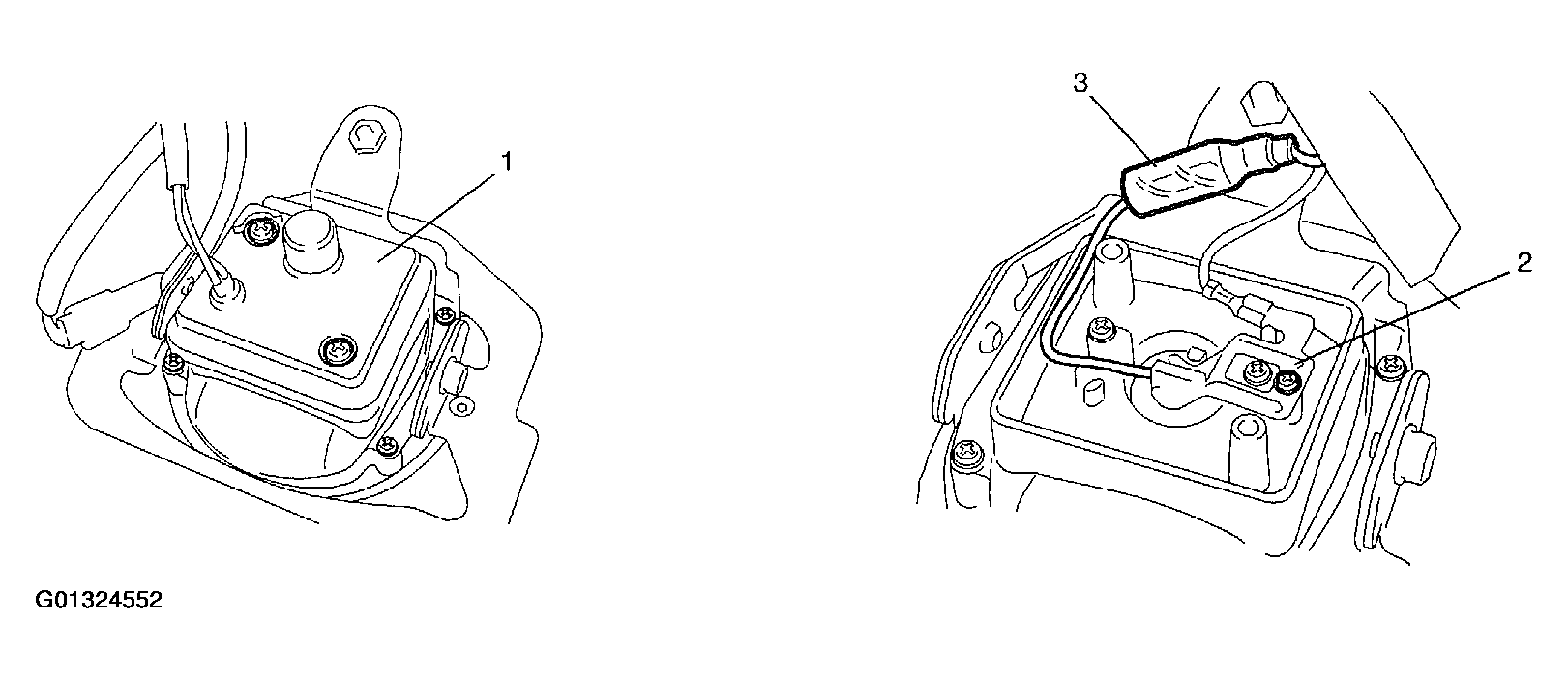

- Remove bulb cover (1) and bulb mounting plate (2).
- Disconnect connector (3).
- Pull out bulb.
- Replace bulb and install in reverse removal procedure.
