Instrument Panel Removal and Installation: Removal

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative (-) cable at battery.
Disable air bag system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
Remove console box (1).

Fig 1: Removing Console Box
Courtesy of SUZUKI OF AMERICA CORP.
Remove center lower garnish (1).

Fig 2: Removing Center Lower Garnish
Courtesy of SUZUKI OF AMERICA CORP.
Remove center garnish mounting screw (1) and then pull off center garnish.
Remove harness and controller cover (2).

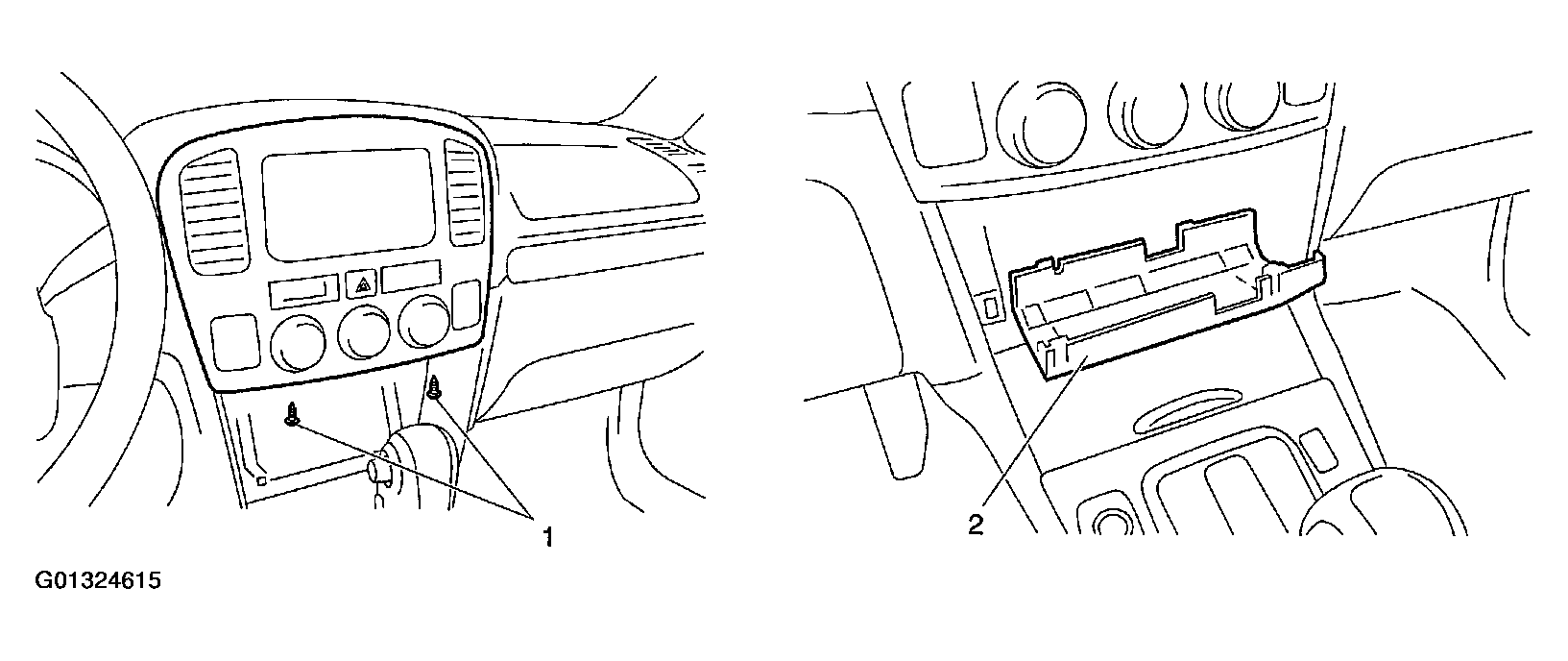

Fig 3: Remove Harness And Controller Cover
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect BCM connectors and HVAC control module connector from each controller.
Remove center garnish (1) with BCM (2) and HVAC control module.

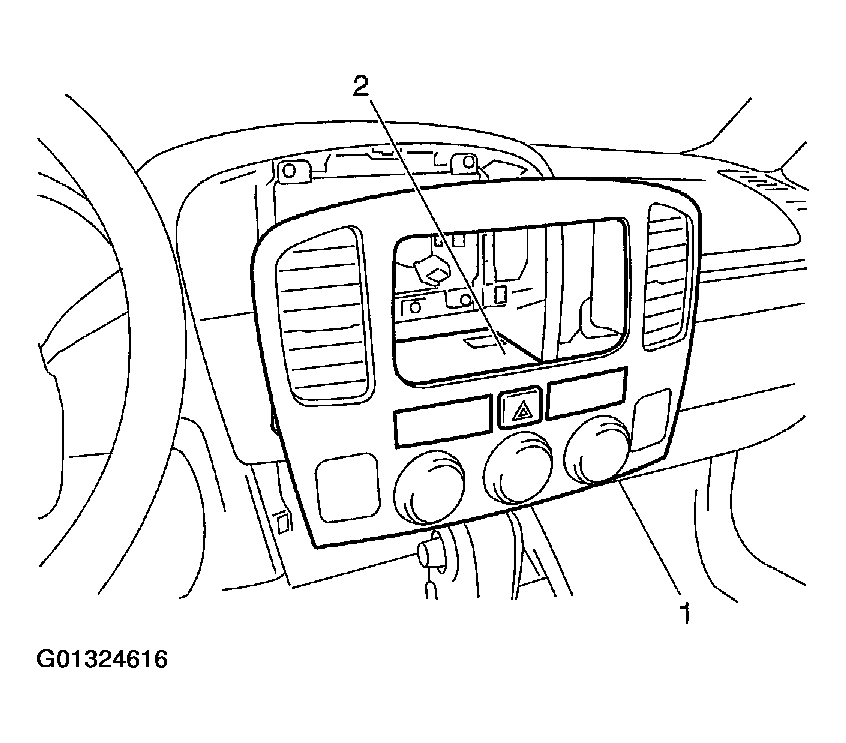

Fig 4: Removing Center Garnish
Courtesy of SUZUKI OF AMERICA CORP.
Remove passenger air bag (inflator). Refer to AIR BAG RESTRAINT SYSTEMS .
Remove glove box and column hole cover.
Remove steering column assembly. Refer to STEERING COLUMN REMOVAL AND INSTALLATION .
Disconnect speedometer connector and remove speedometer assembly referring to COMBINATION METER REMOVAL AND INSTALLATION .
Remove engine hood opener.
Disconnect couplers which need to be disconnected for instrument panel removal.
Remove front pillar trims.
Remove instrument panel mounting bolt referring to INSTRUMENT PANEL COMPONENTS .
Remove instrument panel.
CAUTION: For vehicle with Air Bag, instrument panel could not be removed with SDM coupler connected. Use care not to damage Air Bag harness.
