Illumination Controller Inspection
WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
- Remove illumination controller from instrument panel.

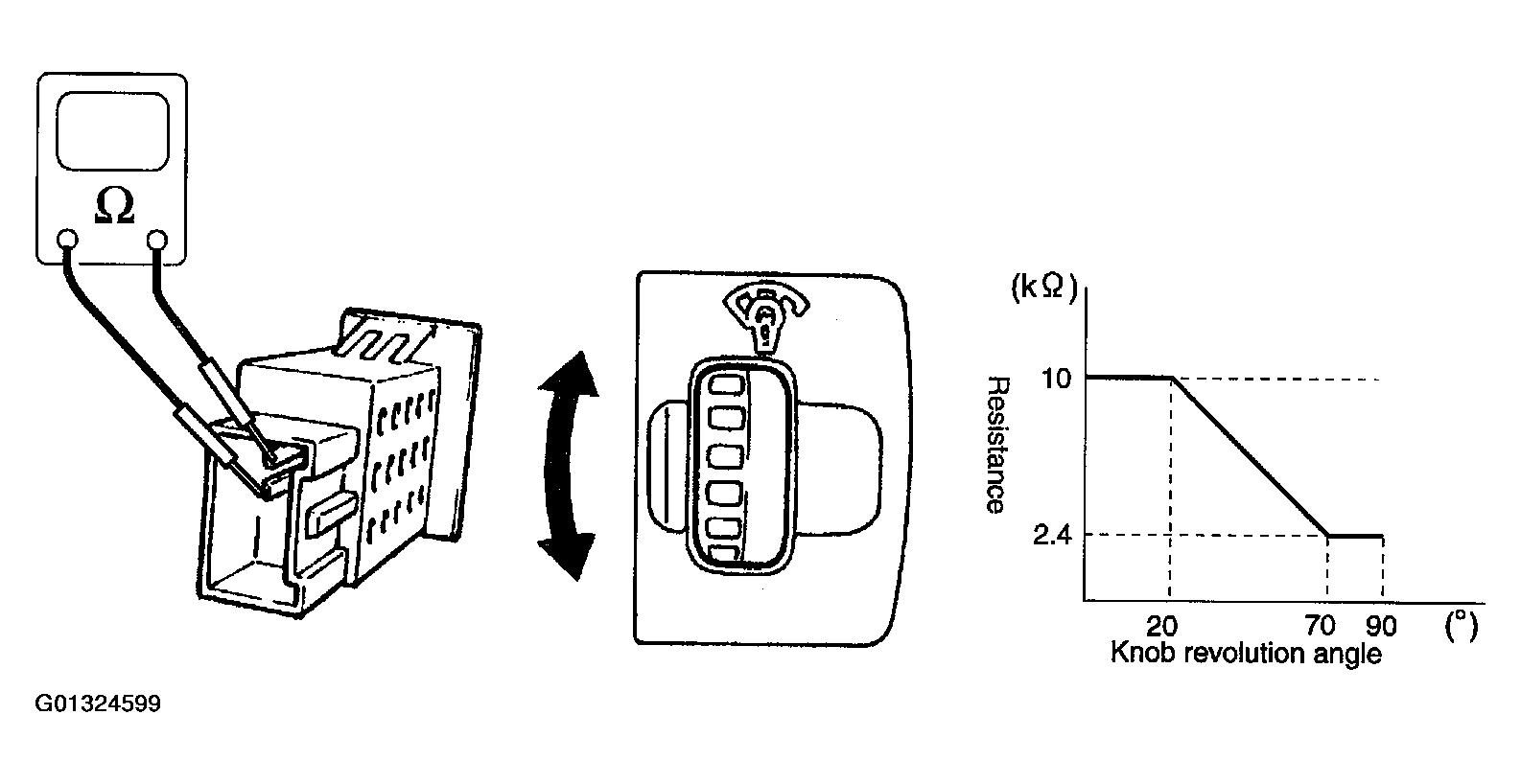

- Check resistance between terminals for illumination controller.
If measured value is out of specification, replace illumination controller.
