Ignition (Main) Switch On-Vehicle Inspection
WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect negative cable at battery.
- Disable air bag system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
- Disconnect main switch lead wire coupler.

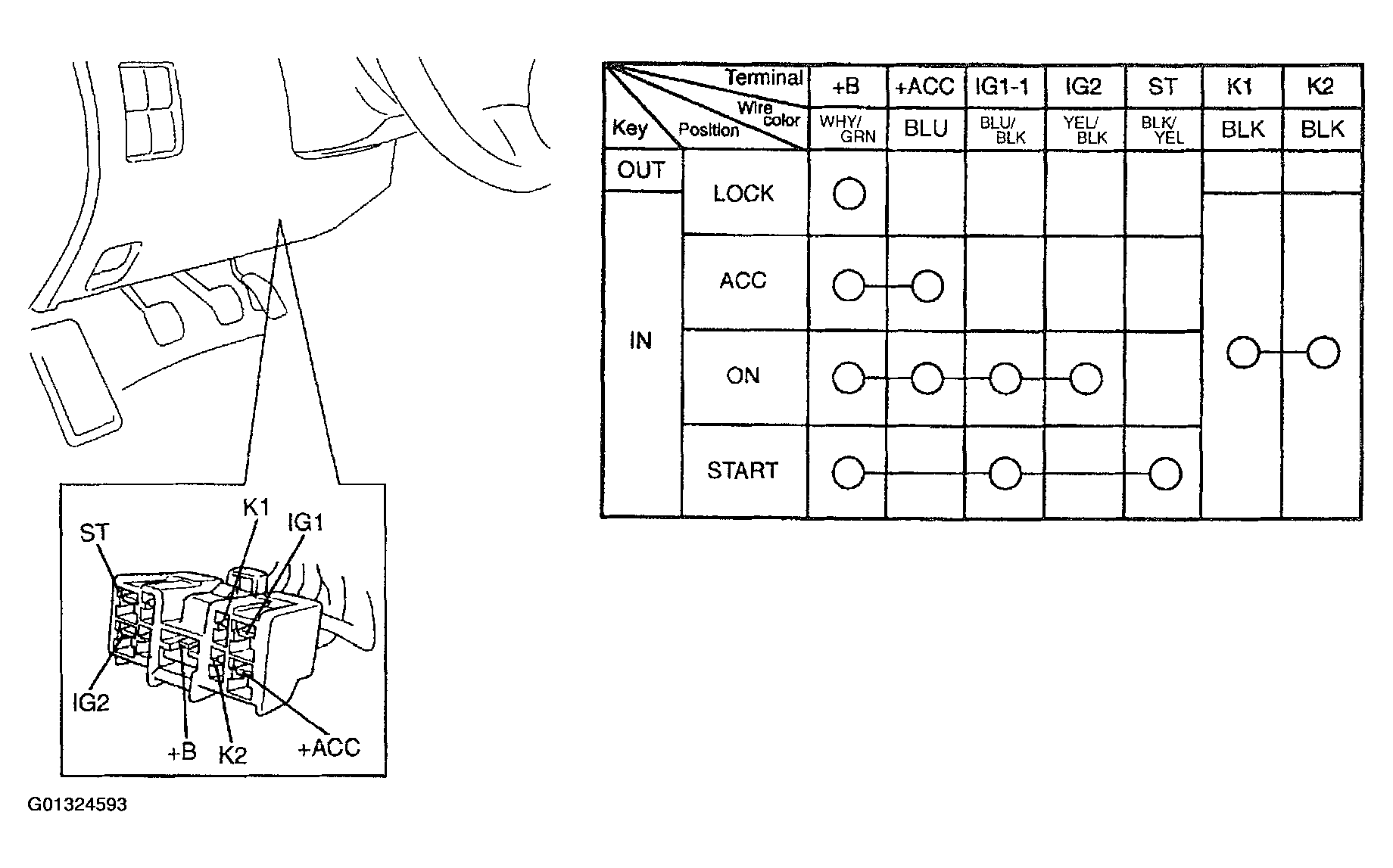

- Check continuity between terminals. Use circuit tester to check continuity at each switch position. If continuity is not obtained according to the table below, replace ignition (main) switch.
