Combination Meter Removal and Installation: Removal

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative cable (-) at battery.

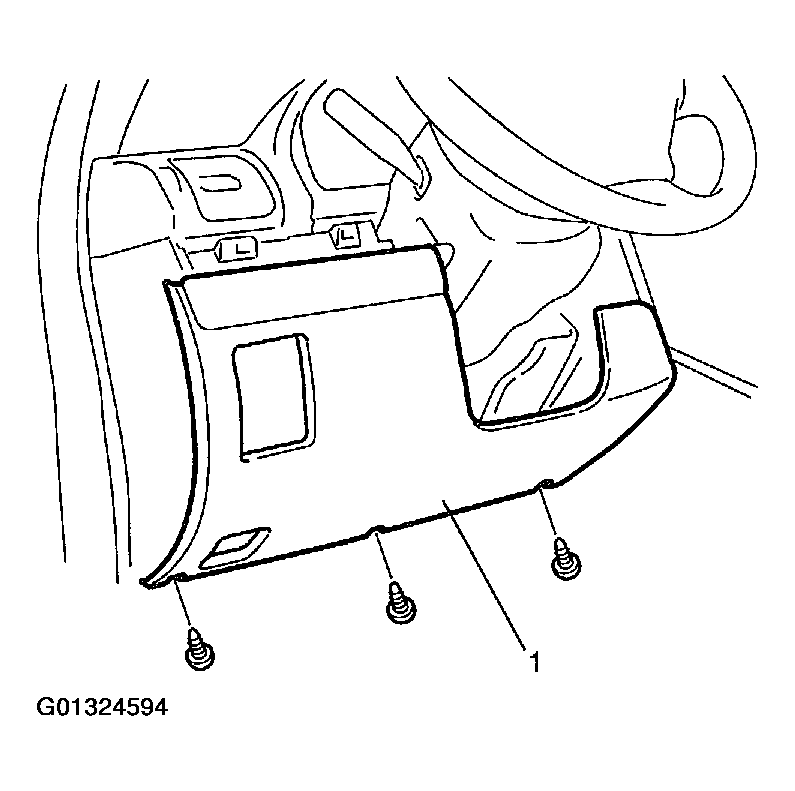

  2. Remove steering column hole cover (1).
  3. Disable air bag system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  4. Tilt steering column fully down position.
    Fig 1: Removing Steering Column Hole Cover
    G01324594Courtesy of SUZUKI OF AMERICA CORP.

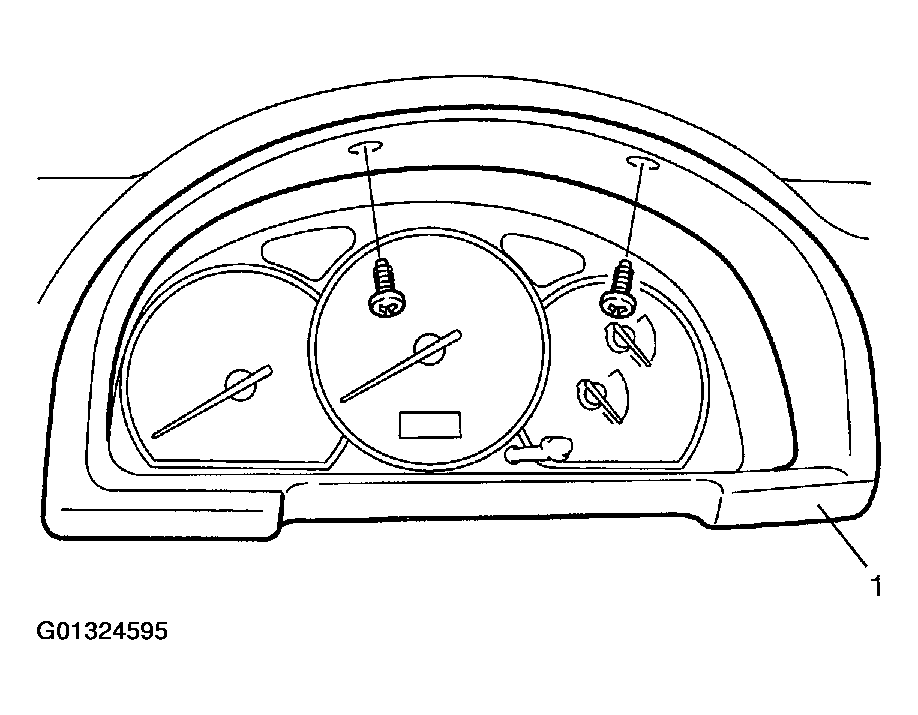

  5. Remove combination meter cluster panel (1).
    Fig 2: Removing Combination Meter Cluster Panel
    G01324595Courtesy of SUZUKI OF AMERICA CORP.

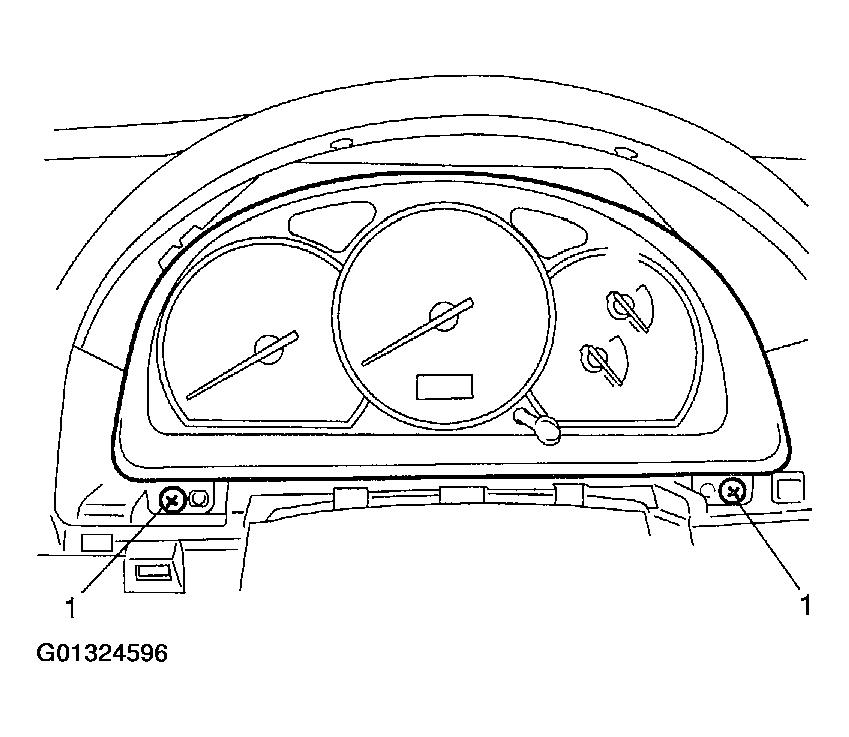

  6. Remove screws (1) fastening combination meter.
    Fig 3: Removing Screws
    G01324596Courtesy of SUZUKI OF AMERICA CORP.
  7. Disconnect couplers from combination meter.
  8. Remove combination meter from instrument panel.
