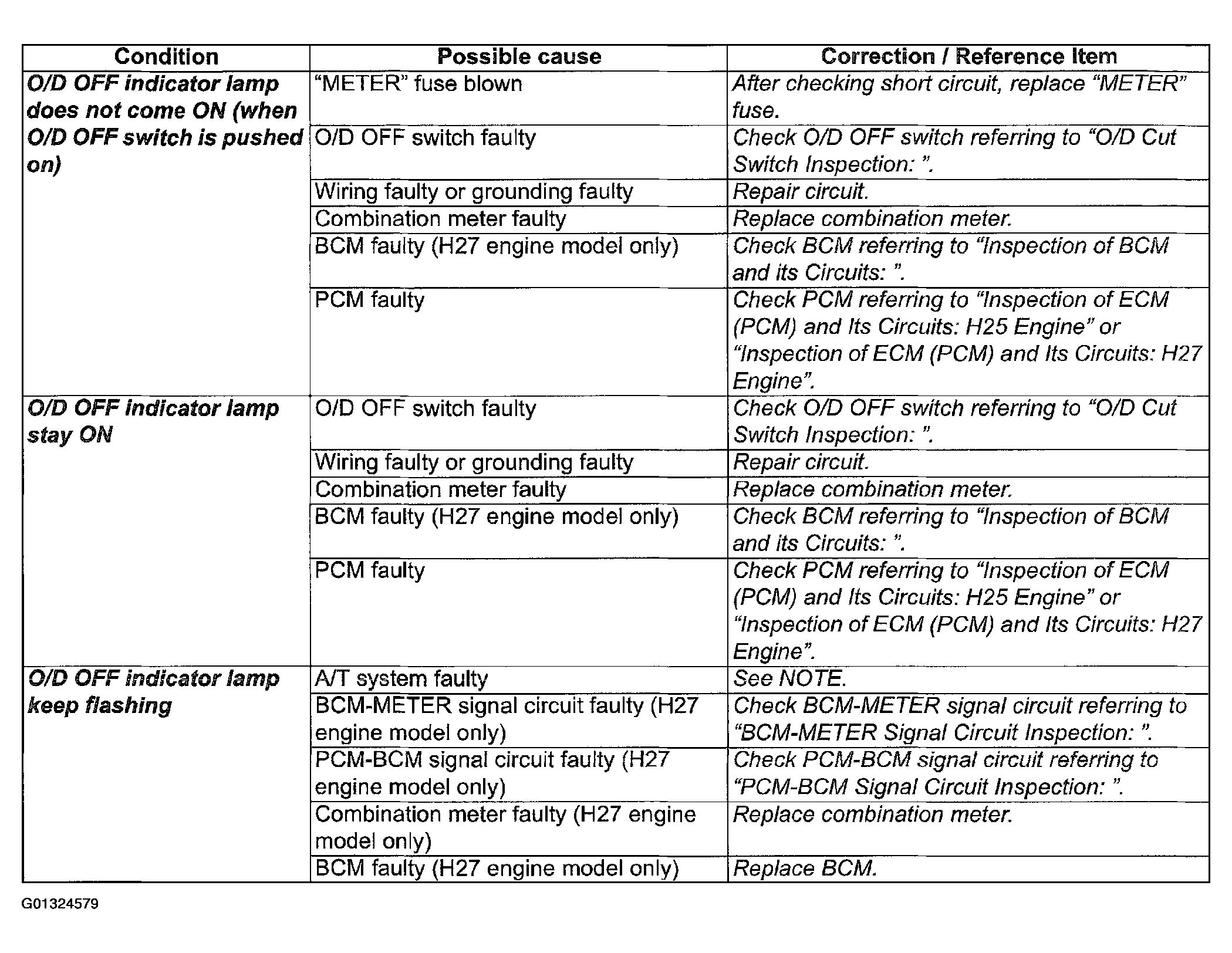

O/D OFF Indicator Lamp Symptom Diagnosis: Notes
WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If combination meter indicates the following conditions at the same time, check automatic transmission system referring to A/T SYSTEM CHECK
.
- O/D OFF indicator lamp keeps flashing.
- Selected A/T selector indicator comes ON.
- Charge warning indicator, BRAKE warning, DRL indicator, POWER indicator and washer level indicator are not flashing.
