Tightening Torque Specifications
WARNING:
This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

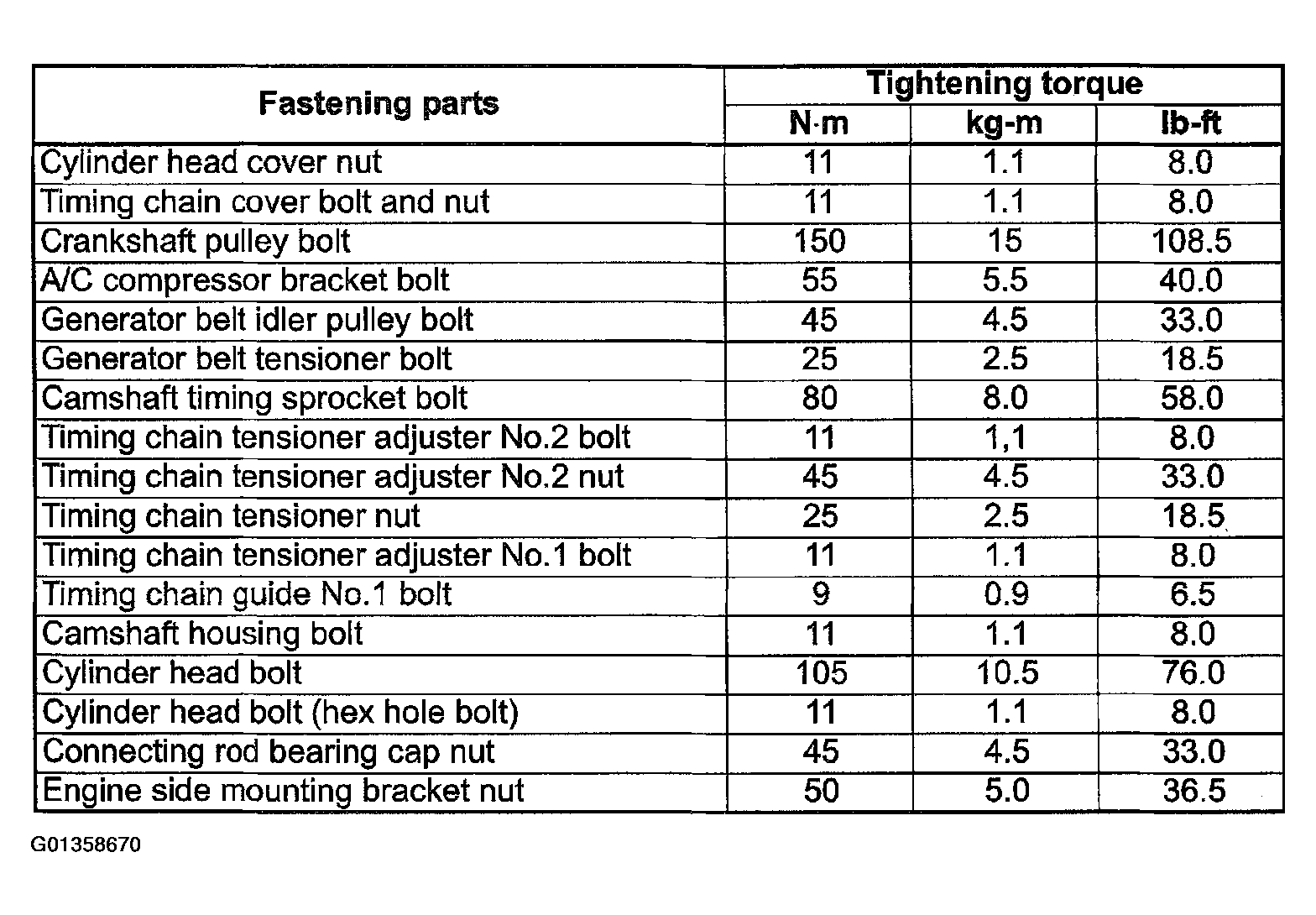

Fig 1: Tightening Torque Specifications Chart
Courtesy of SUZUKI OF AMERICA CORP.

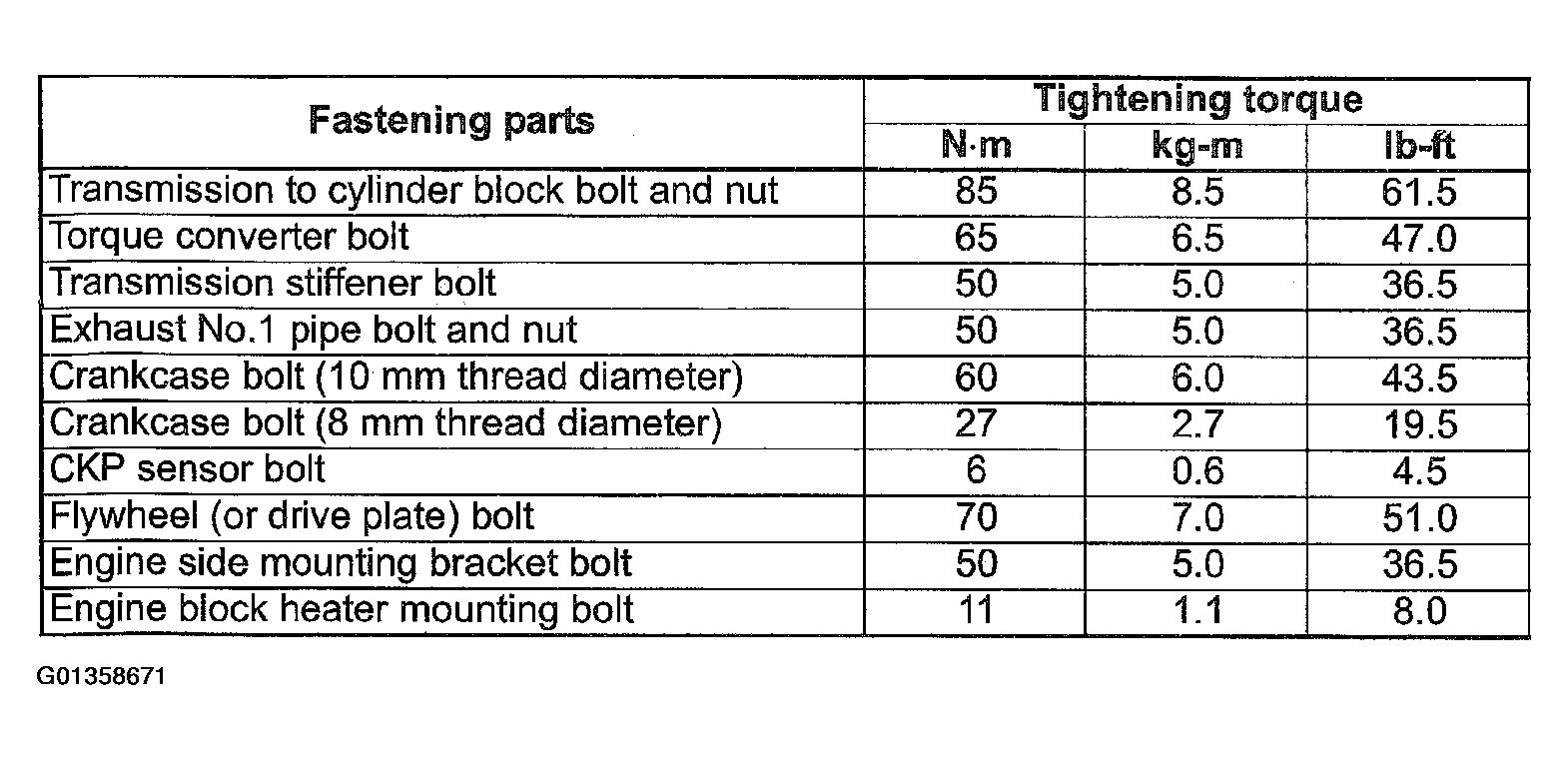

Fig 2: Tightening Torque Specifications Chart
Courtesy of SUZUKI OF AMERICA CORP.
