Timing Chain Cover Components
WARNING:
This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

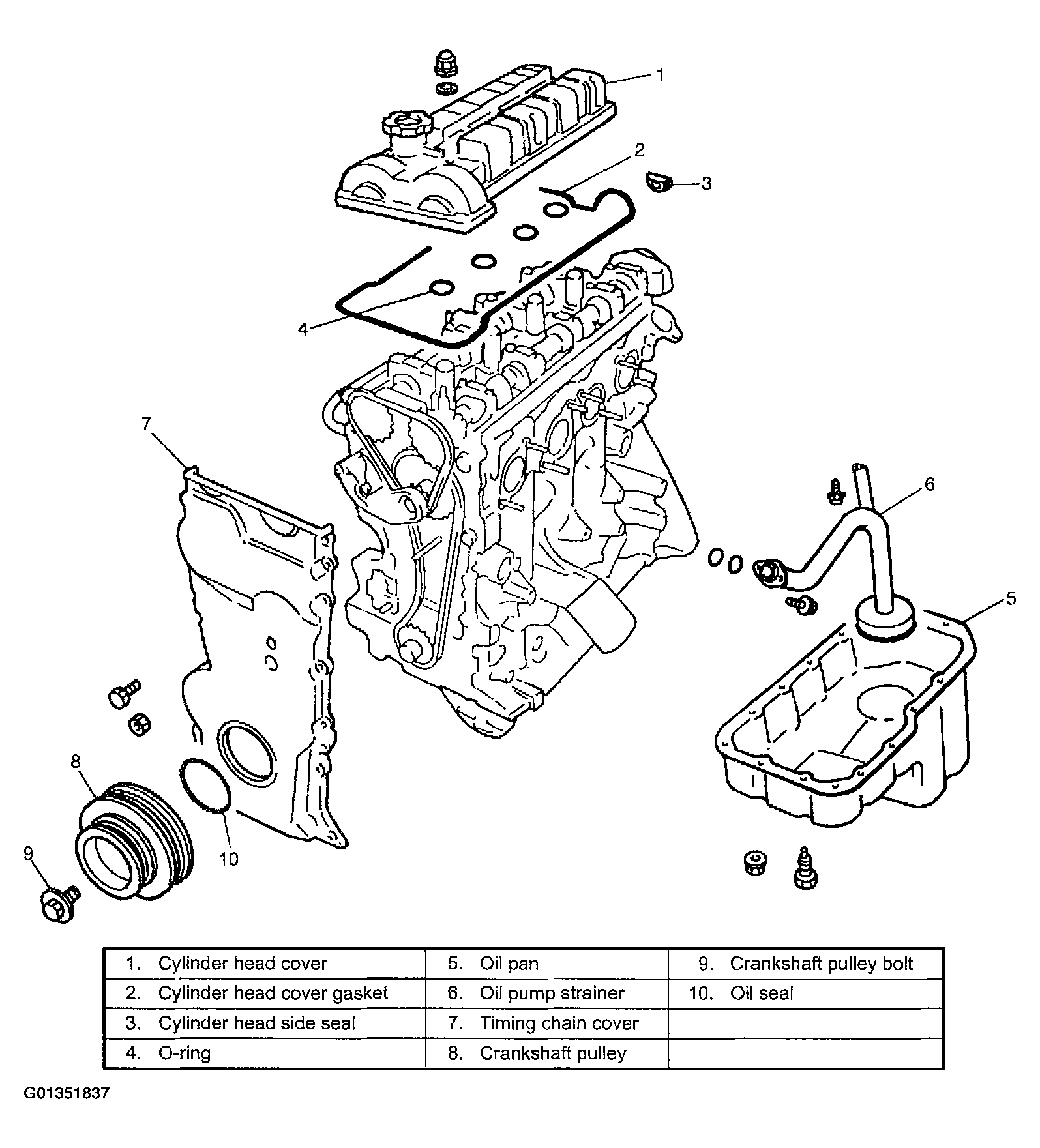

Fig 1: Identifying Timing Chain Cover Components
Courtesy of SUZUKI OF AMERICA CORP.
