Engine Mountings Components

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

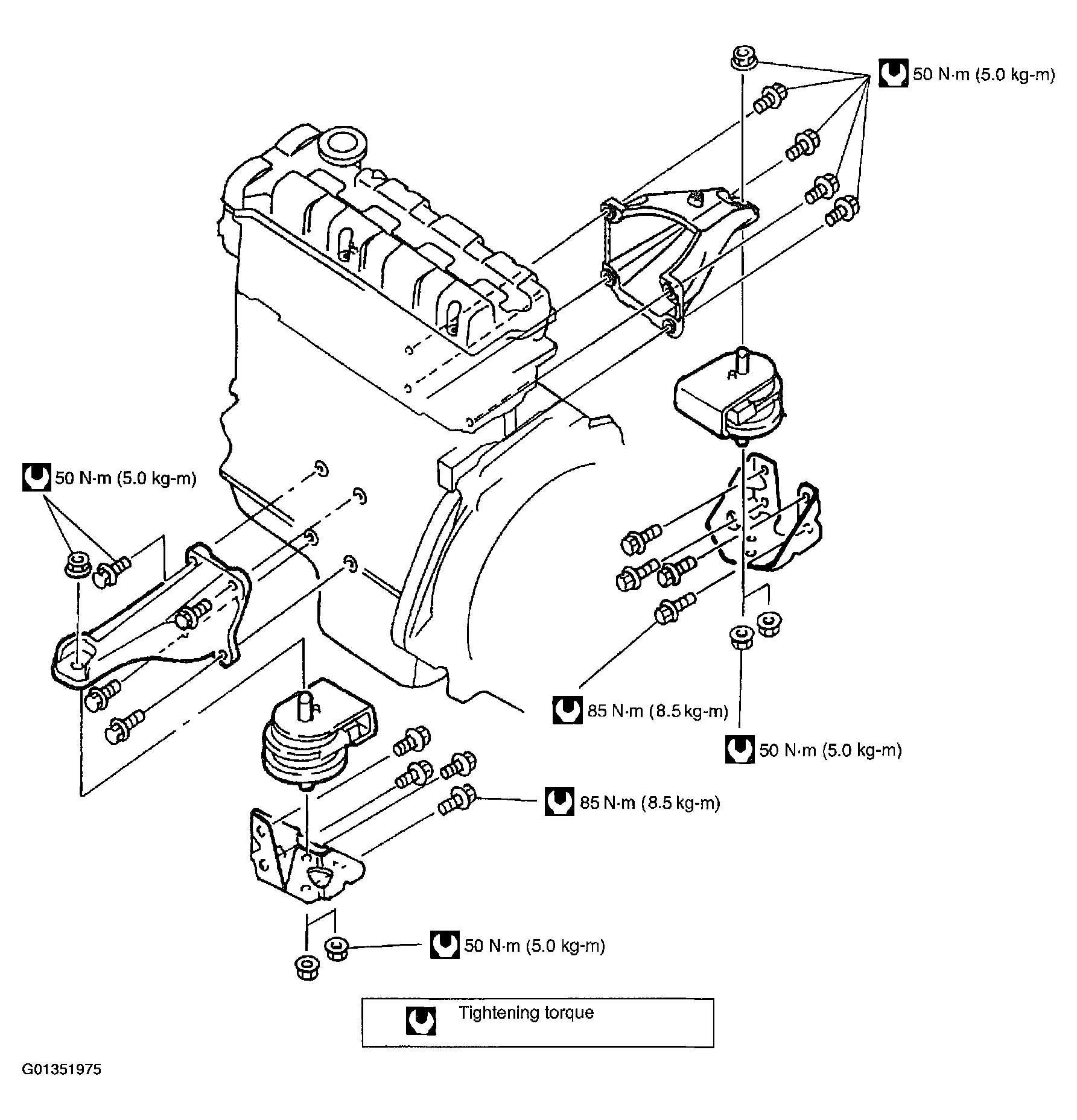

Fig 1: Identifying Engine Mountings Components
G01351975Courtesy of SUZUKI OF AMERICA CORP.
