Engine Block Heater Removal & Installation: Installation

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Reverse remove procedure for installation, noting the followings.

Install engine block heater (1) in the direction as shown in the figure.

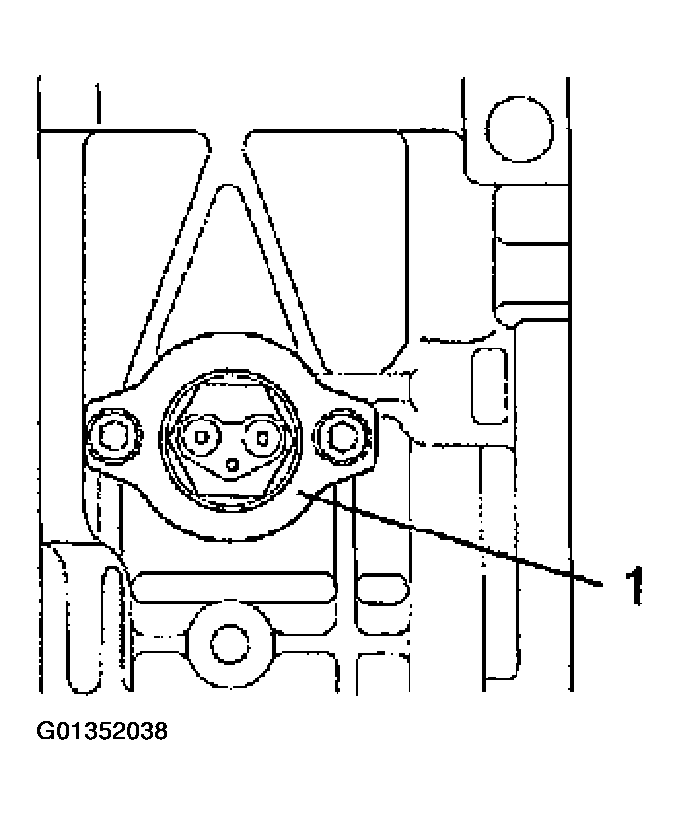

Fig 1: Identifying Engine Block Heater Installation Position
Courtesy of SUZUKI OF AMERICA CORP.
Tighten engine block heater mounting bolt (type A) to specified torque.
1. Apply thread lock cement to block heater bolt (1).
  1. "A": Thread Lock Cement 99000-32020
2. Tighten engine block heater mounting bolt to specified torque.
  Tighten torque
  1. Engine block heater mounting bolt (a): 11 N.m (1.1 kg-m, 8.0 lb-ft)
Fig 2: Identifying Engine Block Heater Mounting Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Use new exhaust manifold gasket.
Tighten exhaust manifold mounting bolts and nuts to specified torque. See EXHAUST MANIFOLD REMOVAL & INSTALLATION .
Refill cooling system with coolant, front different with gear oil, P/S system with specified fluid and engine with engine oil.
Finally, start engine and check for engine coolant leaks and exhaust gas leakage.
