Propeller Shaft Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Using special tool, remove 2 circlips.
Special tool
1. 09900-06108
Fig 1: Removing Circlip Using Special Tool
Courtesy of SUZUKI OF AMERICA CORP.
Using special tool, push spider bearing race out 3 - 4 mm (0.12 - 0.16 in.) from shaft yoke race.
NOTE: Before pushing it out, apply penetrate lubricant between bearing race and yoke race.

Special tool

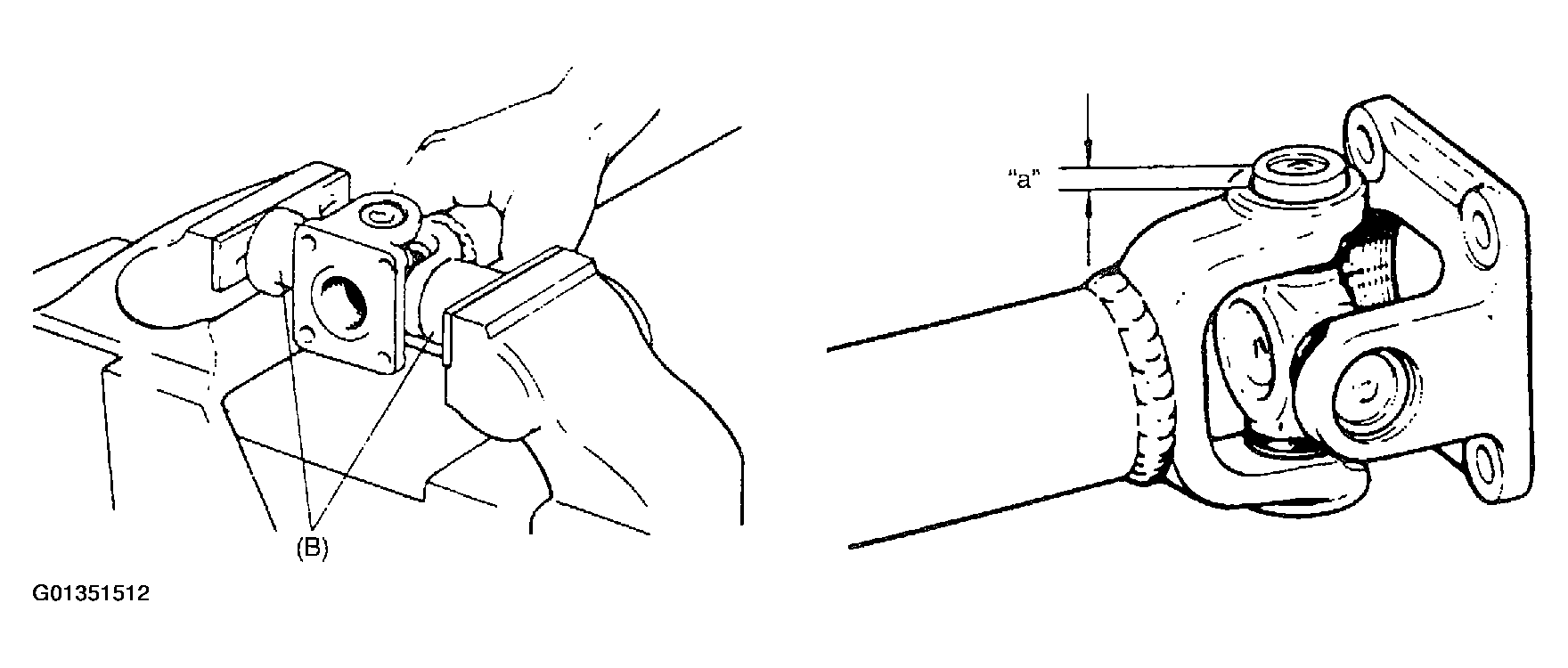

1. (B): 09926-48010
2. Spider bearing race installing position (length "a")
3. "a": 3 - 4 mm (0.12 - 0.16 in.)
Fig 2: Identifying Special Tool & Dimension "a"
Courtesy of SUZUKI OF AMERICA CORP.
Tapping yoke with a hammer, completely remove bearing race.

Fig 3: Removing Bearing Race From Propeller Shaft
Courtesy of SUZUKI OF AMERICA CORP.
Take out bearing race on the other side in the same way as in Steps 2) and 3).
Push out bearing race on flange yoke side as described in Steps 1) and 2), and then, holding bearing race in a vise (1), tap flange yoke and take out race. (See Fig 4 .)
Remove bearing race on the opposite side in the same way.
NOTE:
- Take care not to lose rollers in spider bearing race when removing it.
- Fit removed bearings temporarily in spider so that they can be reinstalled in their original positions.
Fig 4: Removing Bearing Race From Flange
Courtesy of SUZUKI OF AMERICA CORP.
