Propeller Shaft Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Make sure that rollers inside spider bearing race are all in place.
Make sure to apply grease to spider bearing race.
1. "A": Grease 99000-25030

  Fig 1: Applying Grease To Spider Bearing Race
  Courtesy of SUZUKI OF AMERICA CORP.

  CAUTION: In assembly, be sure to use new circlips, spider (1) and bearings (2). Reuse of circlips, spider (1) and bearings (2) once assembled is prohibited.

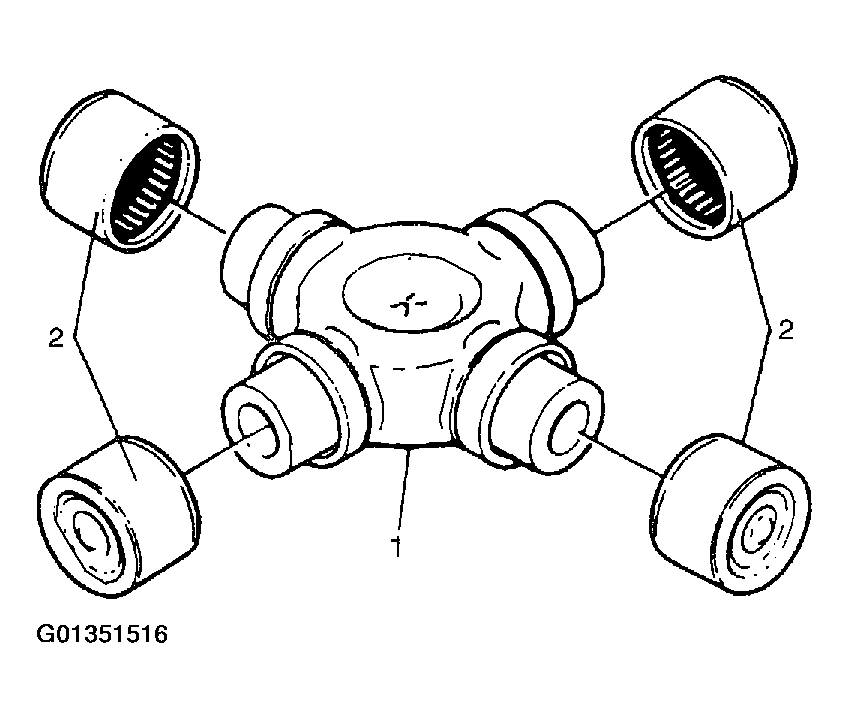

Fig 2: Identifying Universal Joint Components
Courtesy of SUZUKI OF AMERICA CORP.

Insert bearing race (2) into yoke (3), tapping it with a hammer (1), until it is flush with yoke face. When doing this, insert spider (4) into bearing race (2) to prevent rollers in bearing race (2) from coming out.

Fig 3: Installing Bearing Race Into Flange
Courtesy of SUZUKI OF AMERICA CORP.
Insert the other bearing race on the opposite side into yoke, tapping with a hammer until it is flush with yoke face.

Fig 4: Installing Bearing Race Into Propeller Shaft
Courtesy of SUZUKI OF AMERICA CORP.
Insert bearing races on the flange yoke side in the same way as described in Step 1) and 2).
Place a metal plate on bearing races when tapping then in to avoid damaging yoke.
Securely fit 4 circlips to shaft and flange yoke.
NOTE:
- After assembly, check to ensure that both shaft yoke and flange yoke move smoothly.
- Make sure that each circlip is fitted in groove securely.
