Removal & Installation (3.5L)
WARNING: This page is about a different car, the 2002 Isuzu Trooper, 2002 Isuzu Rodeo Sport, 2002 Isuzu Rodeo, 2002 Isuzu Axiom, and 2002 Honda Passport. However, it is still accessible from the selected car via links, so may be relevant.
- Release fuel system pressure. See FUEL SYSTEM PRESSURE RELEASE .
- Drain fuel tank by removing fuel tank drain plug. Replace drain plug and tightened to specification. ALWAYS replace fuel tank drain plug seal. See TORQUE SPECIFICATIONS .
- Remove fuel tank. See 3.5L procedure under FUEL TANK .

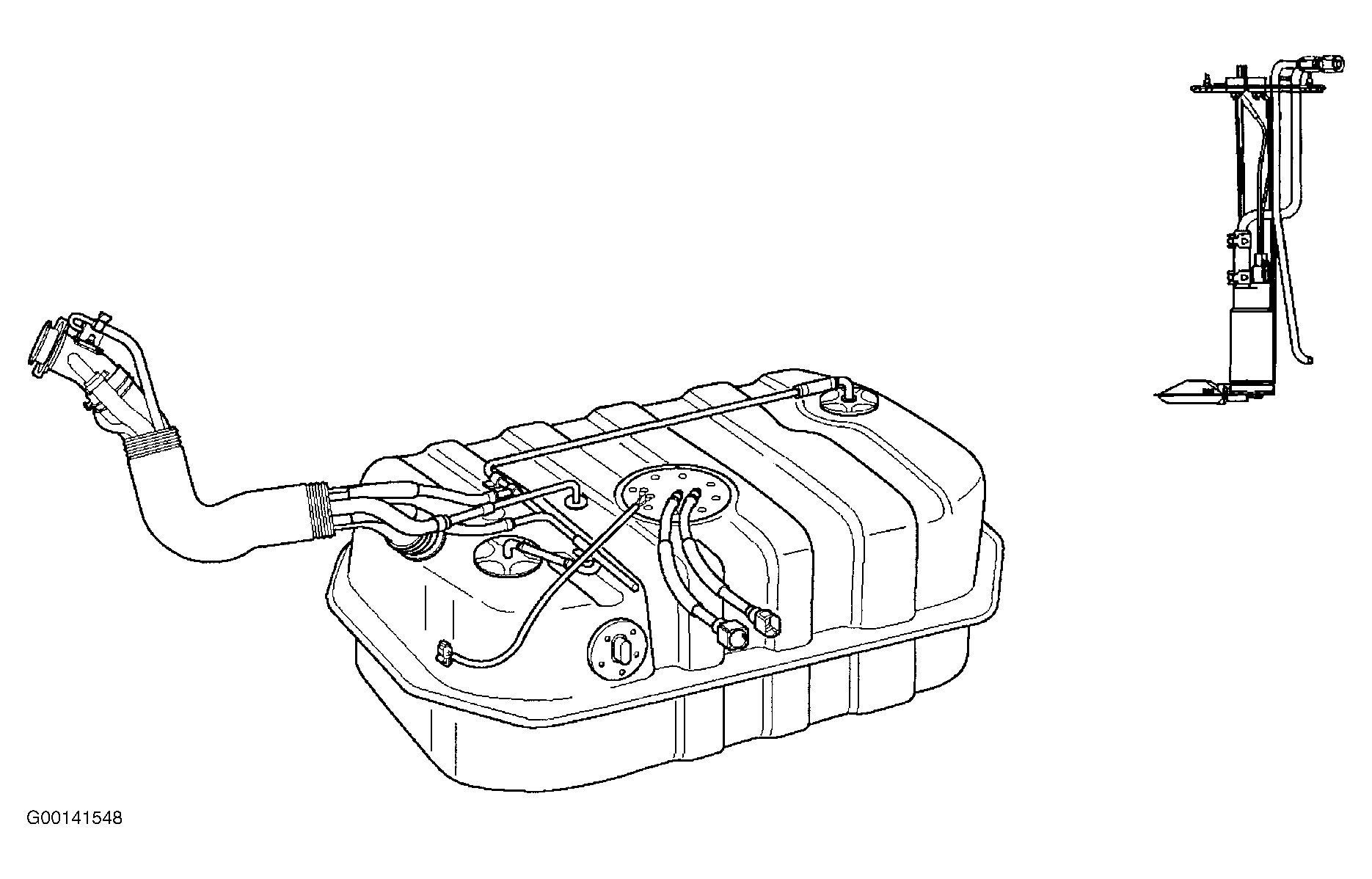

- Remove fuel pump assembly screws and remove fuel pump. See Fig 1.
- To install, reverse removal procedures. Tighten sending unit screws. See TORQUE SPECIFICATIONS . Run vehicle and check for fuel leaks.
