Removal & Installation (2.2L & 3.2L)

WARNING: This page is about a different car, the 2002 Isuzu Trooper, 2002 Isuzu Rodeo Sport, 2002 Isuzu Rodeo, 2002 Isuzu Axiom, and 2002 Honda Passport. However, it is still accessible from the selected car via links, so may be relevant.

Release fuel system pressure. See FUEL SYSTEM PRESSURE RELEASE . Remove fuel tank. See 2.2L and 3.2L procedure under FUEL TANK . Remove fuel feed and fuel return hoses at top of fuel tank. See Fig 1. Using Fuel Pump Lock Retainer Tool (J-39765) remove fuel pump lock retainer. See Fig 2.
To install, reverse removal procedure. See TORQUE SPECIFICATIONS . Run vehicle and check for fuel leaks.

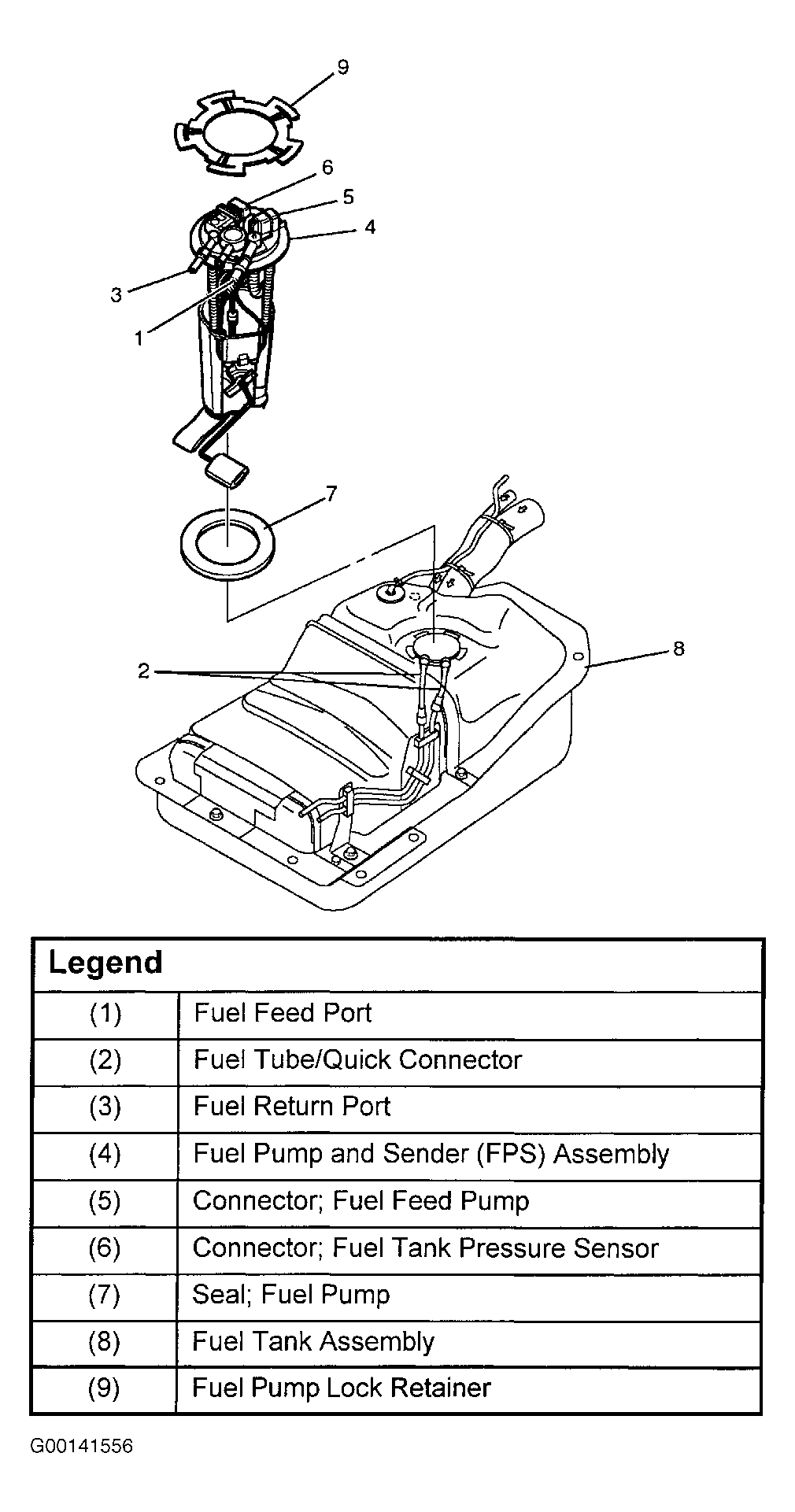

Fig 1: Removing & Installing Fuel Tank (2.2L & 3.2L)

Courtesy of ISUZU MOTOR CO.

Fig 2: Fuel Pump Lock Retaining Tool

Courtesy of ISUZU MOTOR CO.
