Removal & Installation
WARNING: This page is about a different car, the 2002 Isuzu Trooper, 2002 Isuzu Rodeo Sport, 2002 Isuzu Rodeo, 2002 Isuzu Axiom, and 2002 Honda Passport. However, it is still accessible from the selected car via links, so may be relevant.

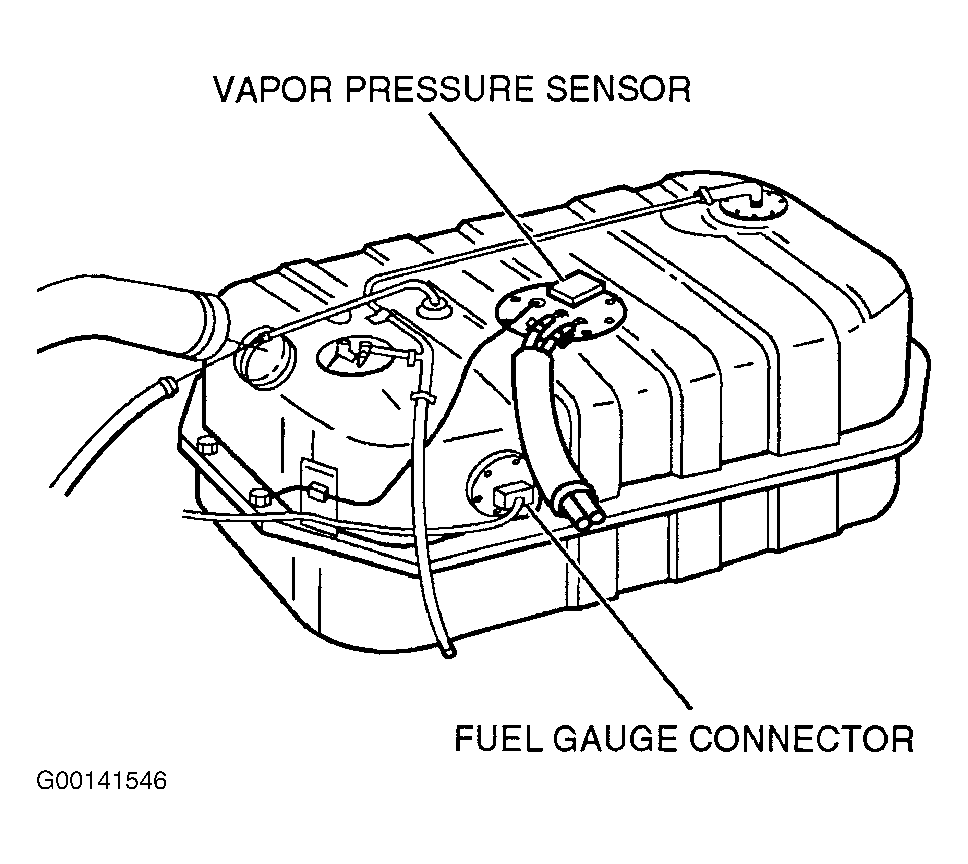

Remove in-tank fuel pump assembly. See FUEL PUMP under FUEL SYSTEM. Carefully pry Fuel Vapor Pressure (FVP) sensor from top of fuel tank. See Fig 1. Carefully inspect sensor and sensor grommet for cracks or tears. Install grommet to fuel pump assembly. Install FVP senor by inserting nipple firmly into grommet. Twist and push sensor until wide portion of sensor shows on other side of grommet. Finish installation by reversing removal procedure.
