Removal & Installation (2.2L)
WARNING: This page is about a different car, the 2002 Isuzu Trooper, 2002 Isuzu Rodeo Sport, 2002 Isuzu Rodeo, 2002 Isuzu Axiom, and 2002 Honda Passport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
It is possible to install EGR valve 180° from correct position. Ensure that base of valve is placed so that it aligns properly to mounting flange.

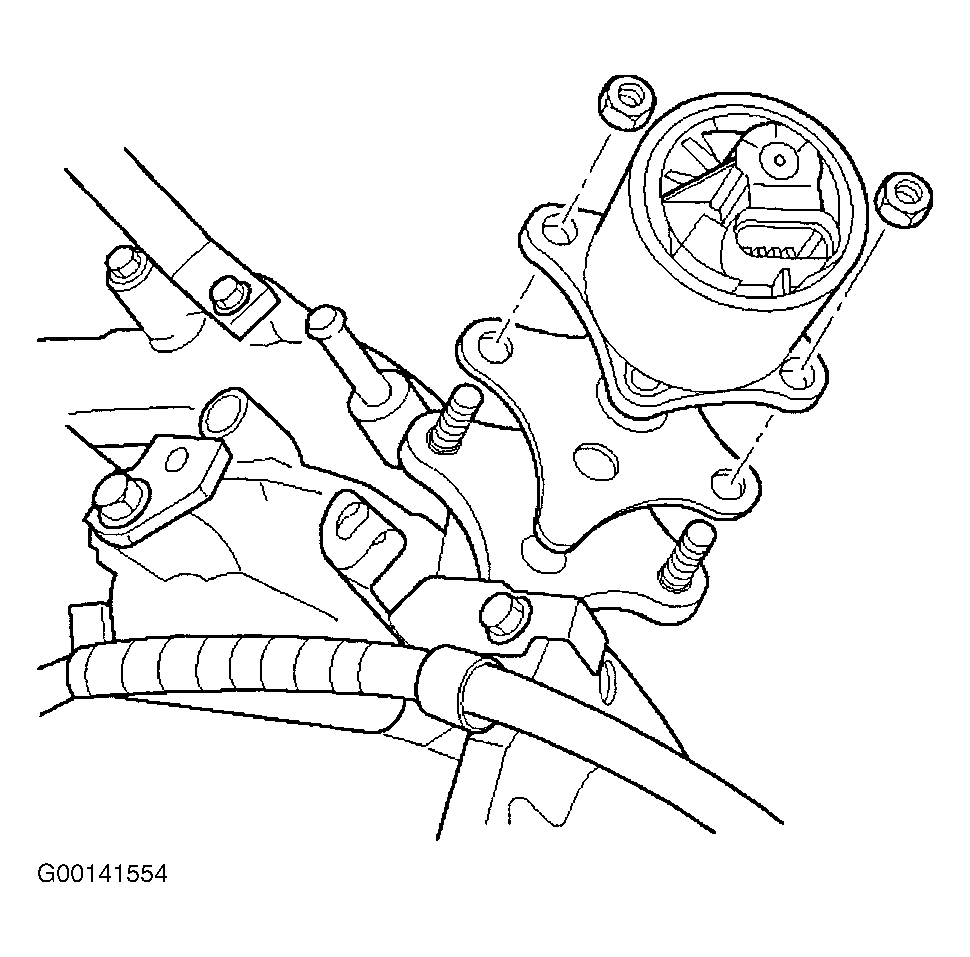

Disconnect EGR valve harness connector. Disconnect IAT sensor harness connector. Remove air intake pipe. Remove crankcase breather hose. Remove EGR valve bolts. See Fig 1. Remove EGR valve and gasket. To install, place NEW gasket on intake manifold. Install EGR valve. Tighten bolts to specification. See TORQUE SPECIFICATIONS . To complete installation, reverse remaining removal procedure.
