Water Pump Removal and Installation: Removal

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative cable at battery.
Drain coolant.
Remove radiator outlet hose from thermostat cap (2).
Remove heater outlet pipe bolt (1).

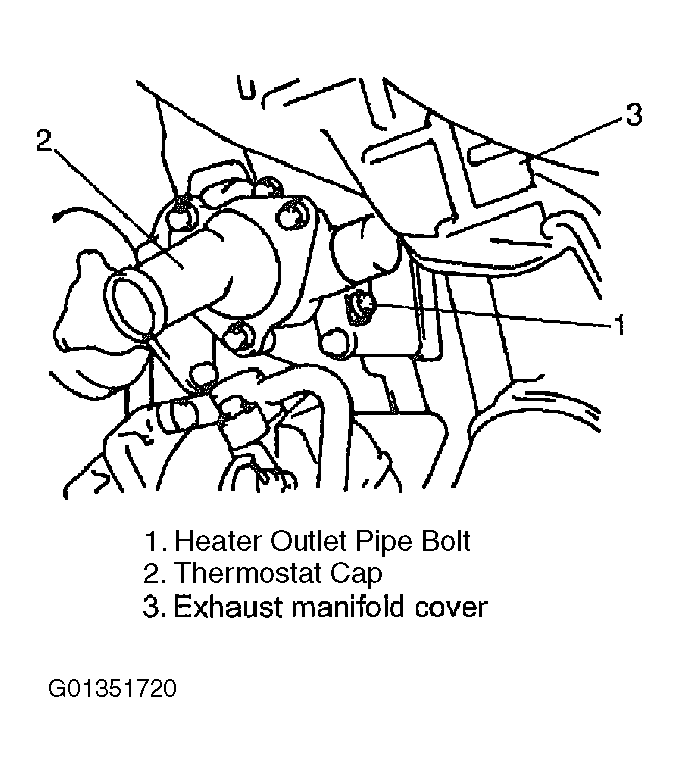

Fig 1: Identifying Thermostat Cap, Heater Outlet Pipe Bolt & Exhaust Manifold Cover
Courtesy of SUZUKI OF AMERICA CORP.
Remove generator belt by loosening tensioner pulley. See GENERATOR BELT .

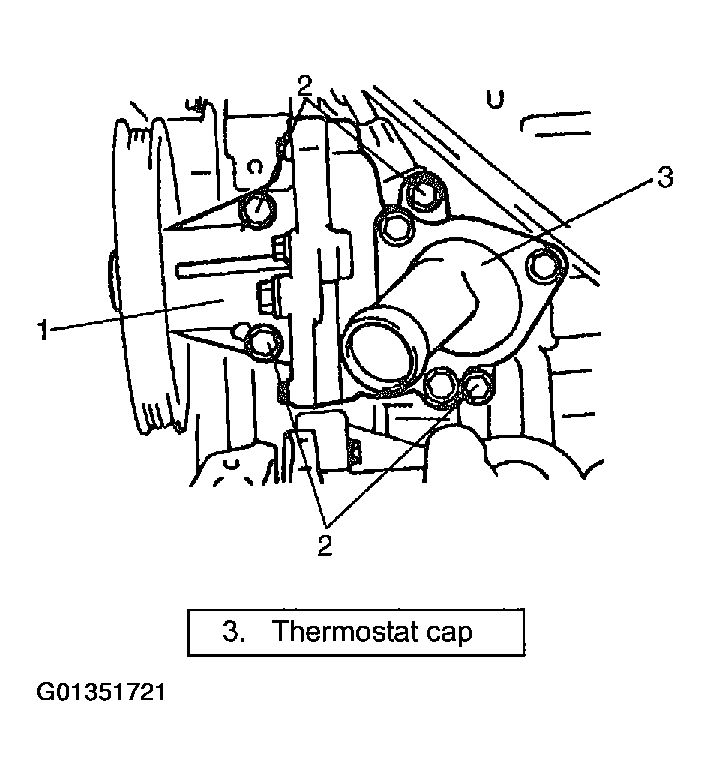

Remove water pump assembly (1) by removing its 4 bolts (2).
NOTE: Do not lose dowel pin when removing water pump assembly (1).
