Water Pump Inspection

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not disassemble water pump. If any repair is required on pump, replace it as assembly.

Rotate water pump by hand to check for smooth operation. If pump does not rotate smoothly or makes abnormal noise, replace it.

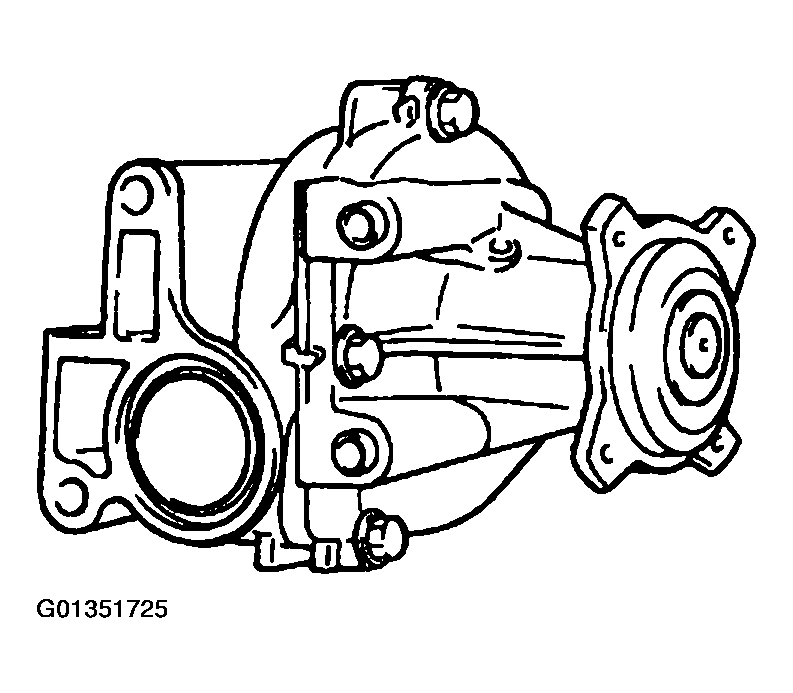

Fig 1: Identifying Water Pump
Courtesy of SUZUKI OF AMERICA CORP.
Inspect impeller (2) of water pump (1) for damage. Replace as necessary.
NOTE: Do not disassemble water pump to check the water pump impeller.

Fig 2: Identifying Water Pump Impeller
Courtesy of SUZUKI OF AMERICA CORP.
