Checking Coolant Level

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

To check level, lift hood and look at "see-through" coolant reservoir.
It is not necessary to remove radiator cap to check coolant level.
When engine is cool, check coolant level in reservoir.
A normal coolant level should be between "FULL" and "LOW" marks on reservoir.
If coolant level is below "LOW" mark, remove reservoir cap and add proper coolant to reservoir to bring coolant level up to "FULL" mark.
Reinstall cap.

NOTE:

If recommended quality antifreeze is used, there is no need to add extra inhibitors or additives that claim to improve system. They may be harmful to proper operation of system.
When installing reservoir cap, align arrow marks on reservoir and cap.

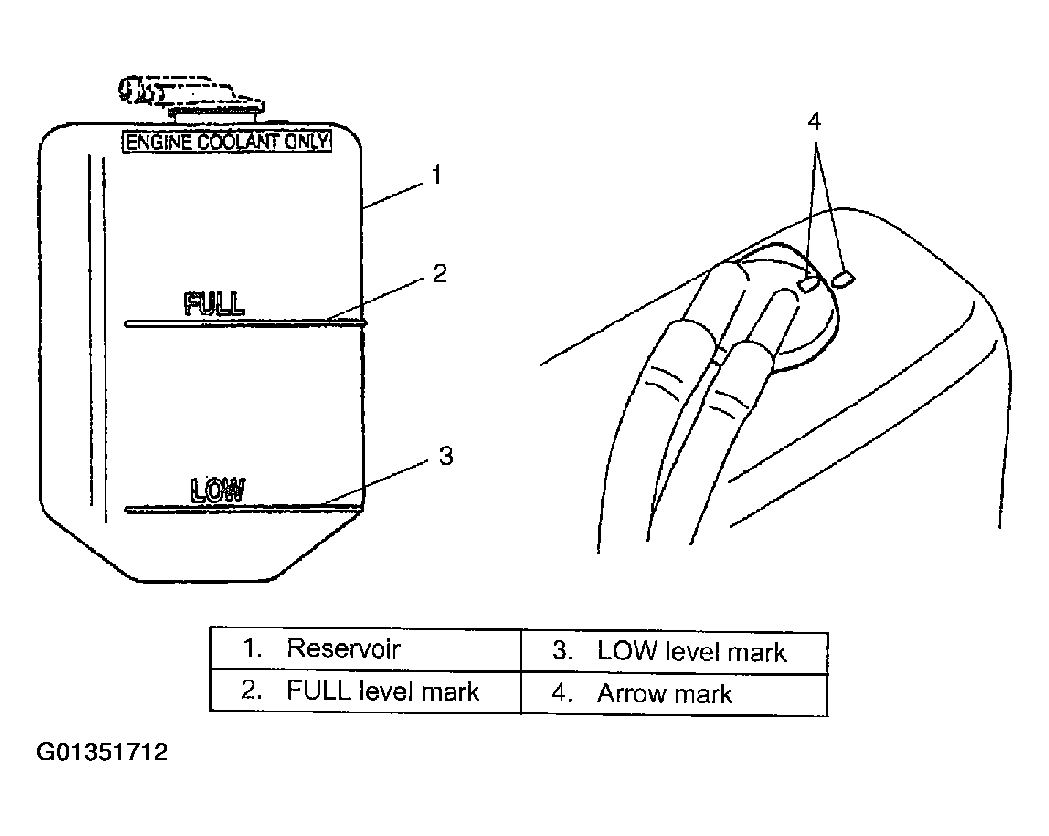

Fig 1: Identifying "FULL" & "LOW" Reservoir Marks - Identifying Reservoir Cap Alignment Marks (Arrows)

Courtesy of SUZUKI OF AMERICA CORP.
