A/C Condenser Fan Motor Relay High-Speed Control System Check: Troubleshooting

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Keep hands, tools, and clothing away from A/C condenser fan to help prevent personal injury. This fan is electric and can come on whether or not the engine is running. The fan can start automatically in response to the ECT sensor with the ignition switch in the "ON" position.

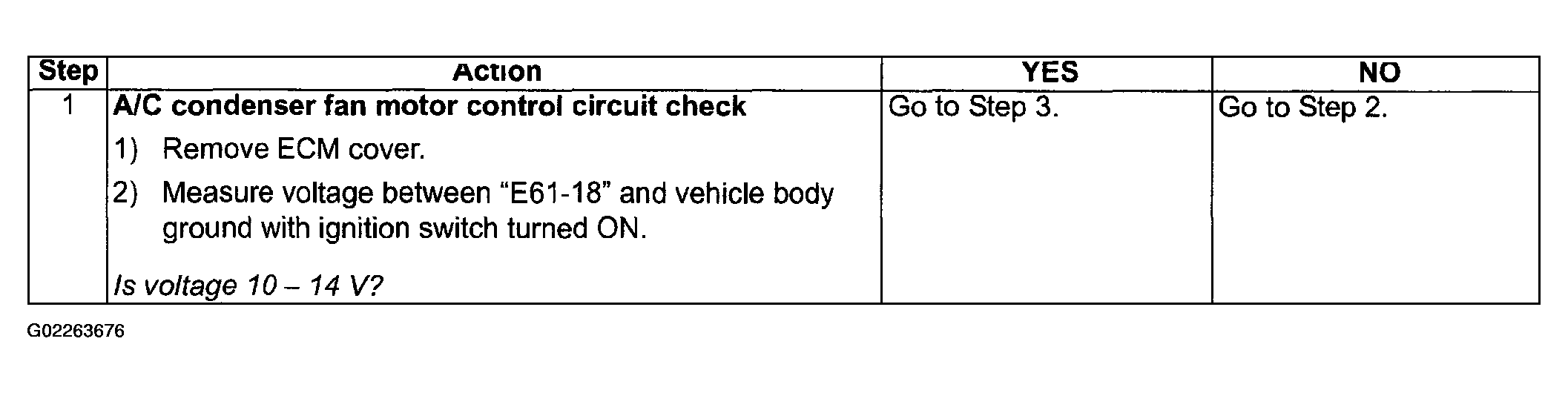

Fig 1: A/C Condenser Fan Motor Relay High-Speed Control System Troubleshooting (1 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

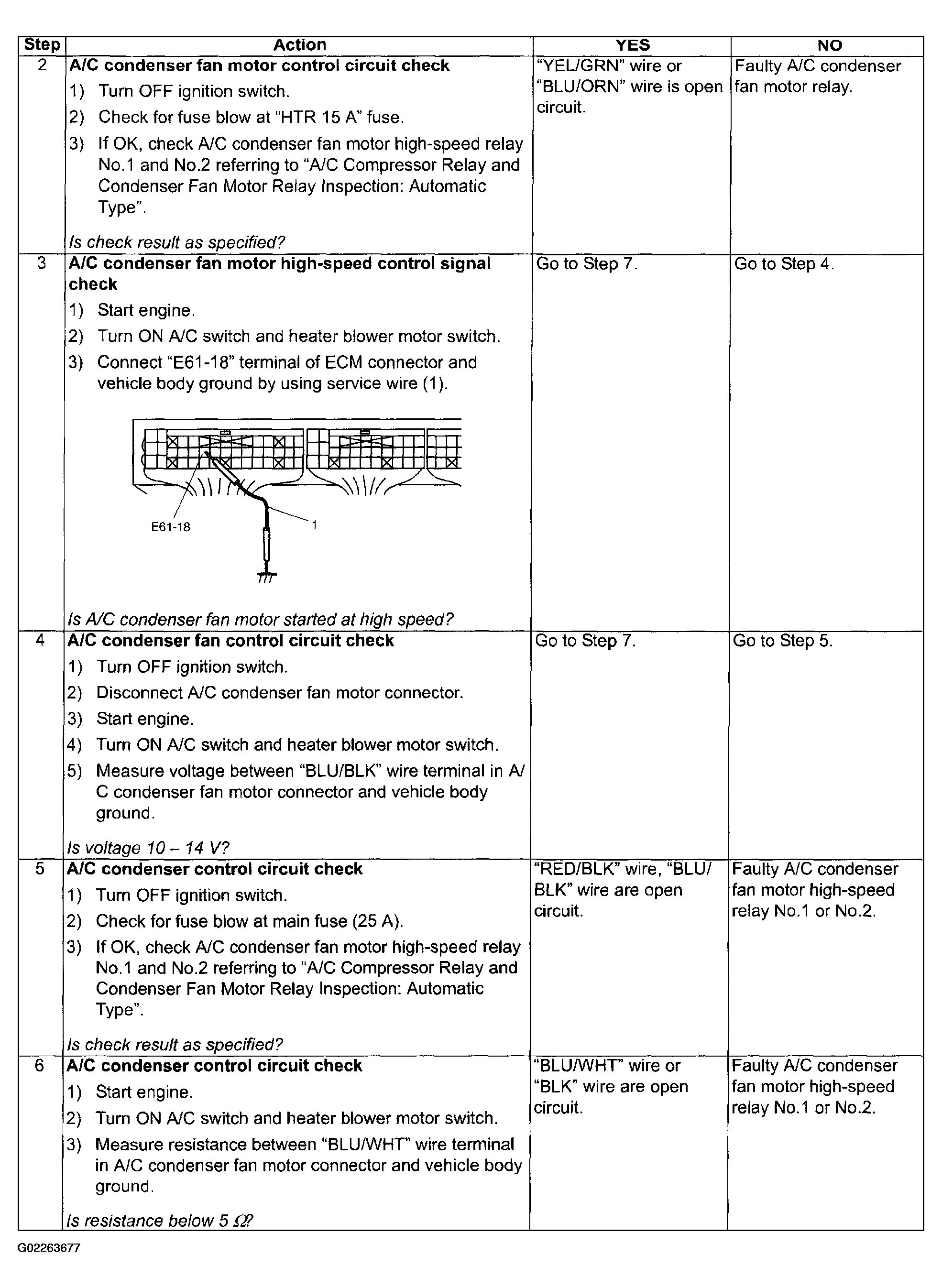

Fig 2: A/C Condenser Fan Motor Relay High-Speed Control System Troubleshooting (2 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

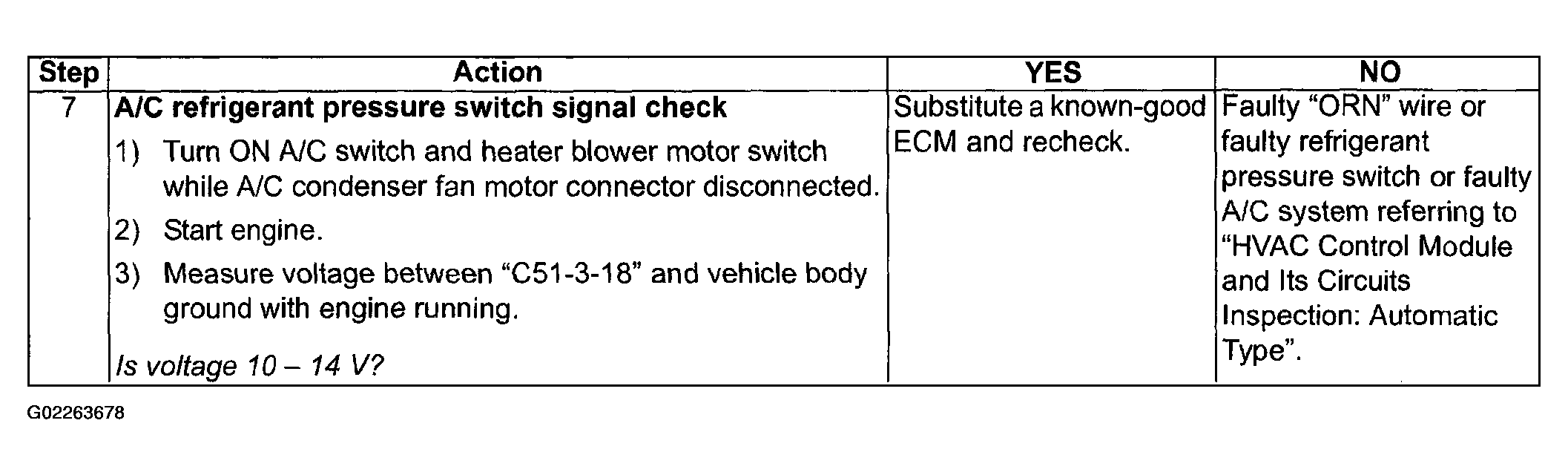

Fig 3: A/C Condenser Fan Motor Relay High-Speed Control System Troubleshooting (3 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.
