Camshaft Position (CMP) Sensor Removal & Installation: Installation

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Install a new O-ring (2) with engine oil applied to CMP sensor (1).

Fig 1: Installing O-Ring
Courtesy of SUZUKI OF AMERICA CORP.

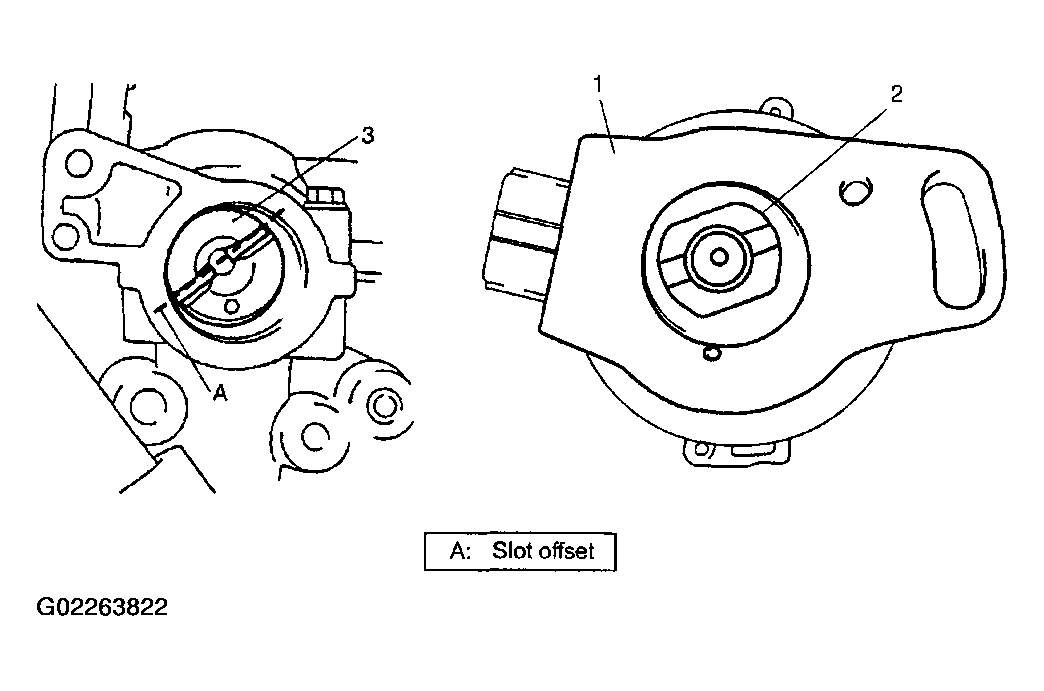

Install CMP sensor (1) to camshaft (3).
Fit the dog of CMP sensor coupling (2) into the slots of camshaft, when installing. The dogs of CMP sensor coupling are offset. Therefore, if the dogs can not be fitted into the slots, turn the CMP sensor shaft by 180 degree and try again.

Fig 2: Aligning Camshaft Position (CMP) Sensor
Courtesy of SUZUKI OF AMERICA CORP.

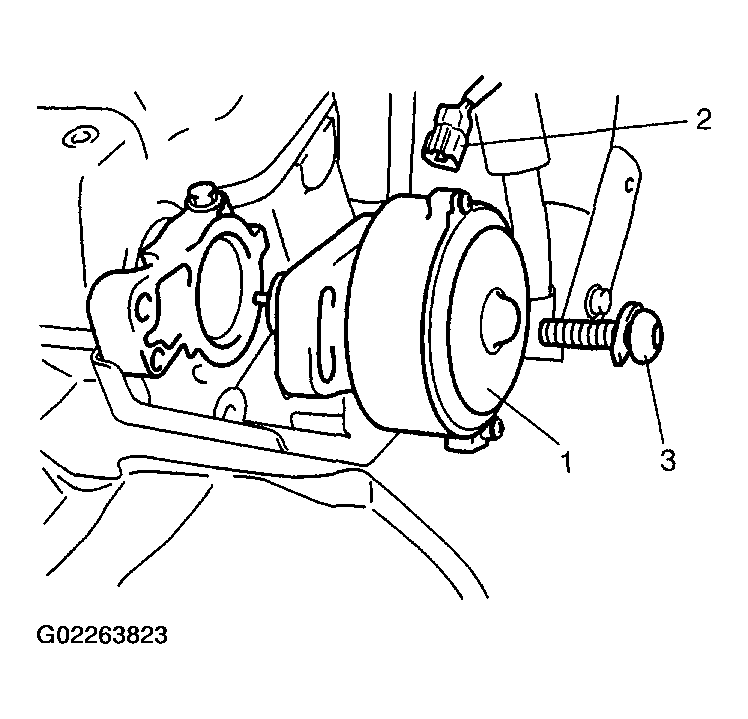

Tighten CMP sensor bolt (3).
Connect CMP sensor coupler (2) to CMP sensor (1).

Fig 3: Installing Camshaft Position (CMP) Sensor
Courtesy of SUZUKI OF AMERICA CORP.

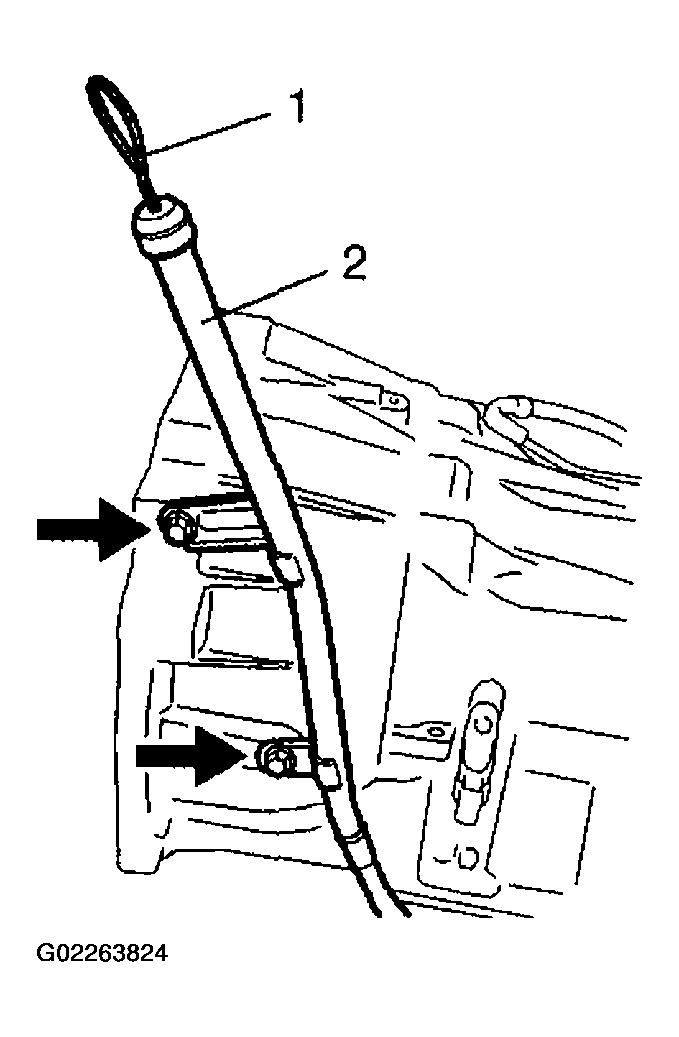

Install A/T fluid level gauge (1) and filler tube (2).

Fig 4: Installing A/T Fluid Level Gauge & Filler Tube
Courtesy of SUZUKI OF AMERICA CORP.
