Throttle Position (TP) Sensor Removal & Installation: Installation
WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

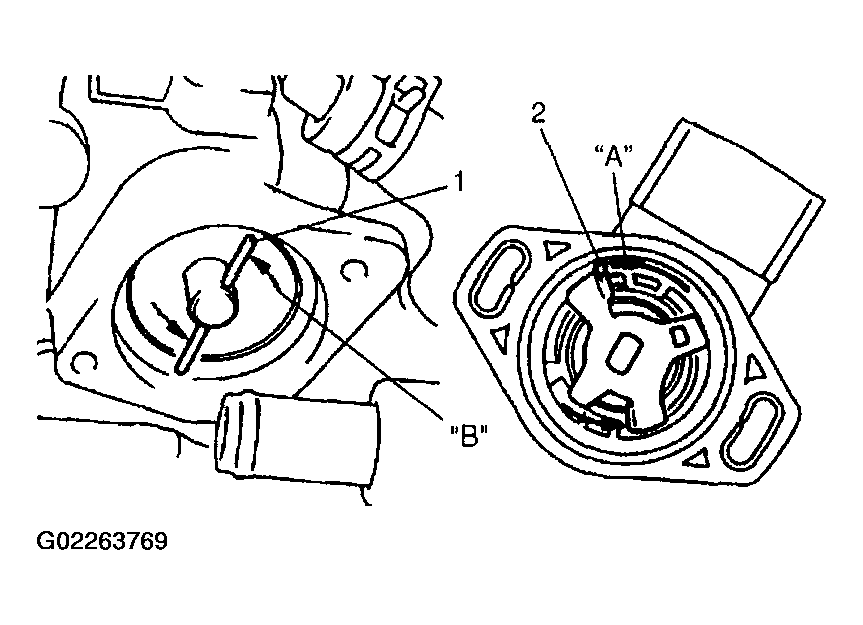

- To install sensor, place it onto throttle body so that sensor pickup lever (2) can engage with throttle body lever (1). "A" should engage with "B".
- Hand-tighten TP sensor screws.
- Connect connector to TP sensor securely.
- Connect battery negative cable to battery.
- Adjust installation angle of TP sensor referring to THROTTLE POSITION (TP) SENSOR ADJUSTMENT .
