Differential Carrier
WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

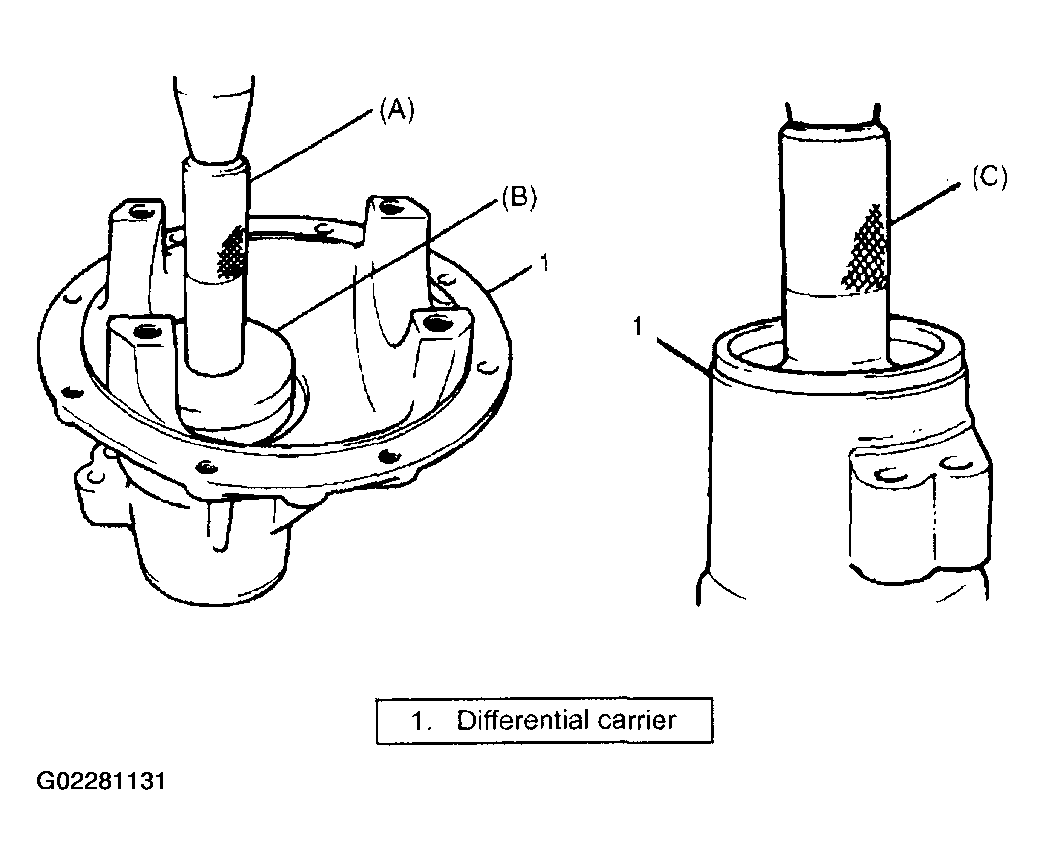

For press-fitting bevel pinion bearing outer races, use special tools as shown in the figure.
CAUTION:
Perform press-fitting carefully so as not to tilt outer race.
Special tool
- (A): 09924-74510
- (B): 09926-68310
- (C): 09913-75510
