Actuator Inspection

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect air hose from pump assembly and install special tool to air hose as shown in figure. Loosen adjusting screw (2) of special tool.
Special tool
1. (A): 09918-18110
Connect compressor air hose to special tool. Blow air and turn adjusting screw (2) to obtain specified pressure.
1. Air pressure specifications (for actuator inspection): 30 kPa (0.3 kg/cm² , 4.25 psi)
CAUTION: Do not apply a pressure exceeding 200 kPa (2.0 kg/cm² , 28.4 psi) which may cause damage to diaphragm.

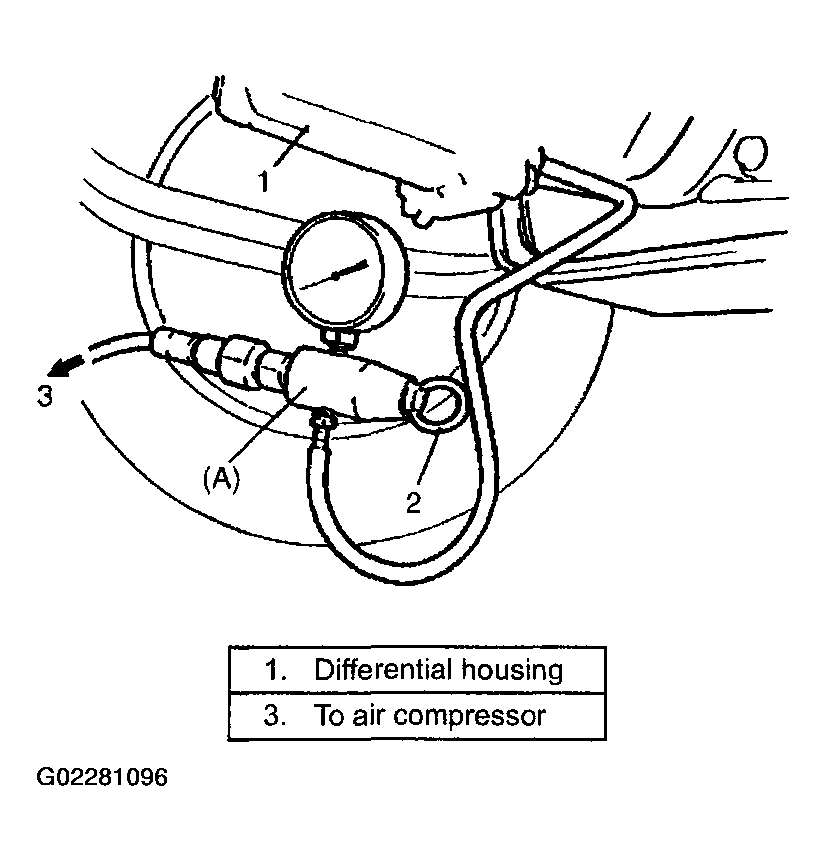

Fig 1: Blowing Air & Turning Adjusting Screw To Obtain Pressure
Courtesy of SUZUKI OF AMERICA CORP.
With the vehicle lifted so that both of the front wheels are off the ground, turn one of the front wheels by hand and check the other wheel, which should act as described below.
If the result is not satisfactory, inspect differential assembly. Refer to FRONT DIFFERENTIAL INSPECTION .
- When the pressure from compressor is applied to actuator:
  The other front wheel should turn in the direction opposite to the tire being turned by hand.
- When the pressure from compressor is not applied to actuator:
  The other front wheel should remain stationary while the tire pushed by hand is turning.
Fig 2: Turning One Of Front Wheels By Hand
Courtesy of SUZUKI OF AMERICA CORP.
