For H27 engine model

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

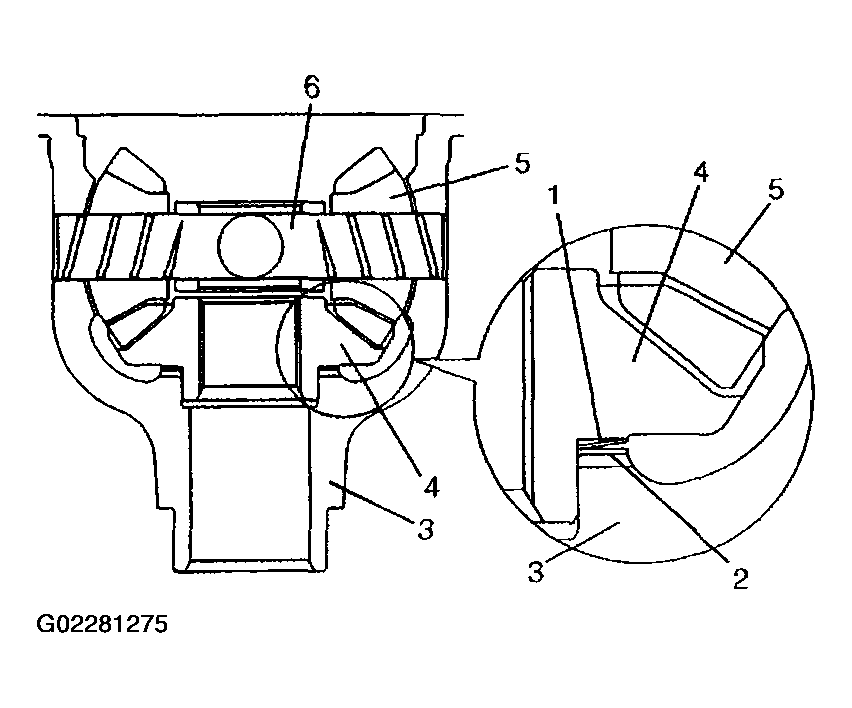

  1. After applying differential oil to differential gear (4), pinions (5), pinion shafts (6), thrust washer (2) and spring washer (1), install them in differential right case (3).

    For correct installing direction of thrust washer (2) and spring washer (1), refer to the figure.

    Fig 1: Installing Differential Gear, Pinions, Pinion Shafts, Thrust Washer & Spring Washer In Differential Right Case
    G02281275Courtesy of SUZUKI OF AMERICA CORP.

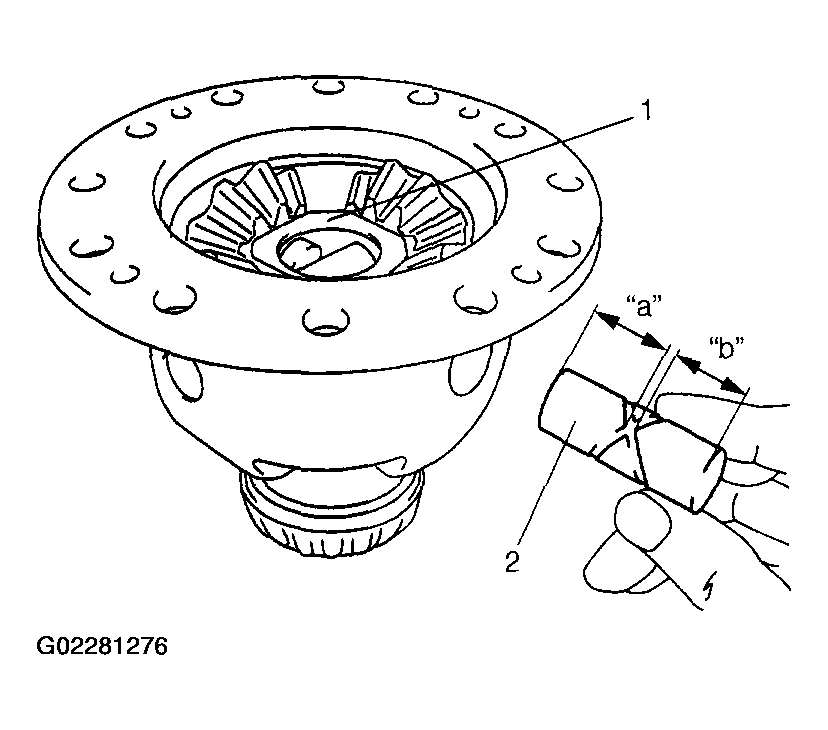

  2. When installing pinion shaft No. 2 (2) (shorter) into differential case and pinion, insert its "a" side into pinion joint (1).
    NOTE: "a" is longer than "b". ("a" > "b")
    Fig 2: Installing Pinion Shaft No. 2
    G02281276Courtesy of SUZUKI OF AMERICA CORP.
  3. Check differential pinion gear (1) for smooth rotation.
    Fig 3: Checking Differential Pinion Gear Rotation
    G02281277Courtesy of SUZUKI OF AMERICA CORP.

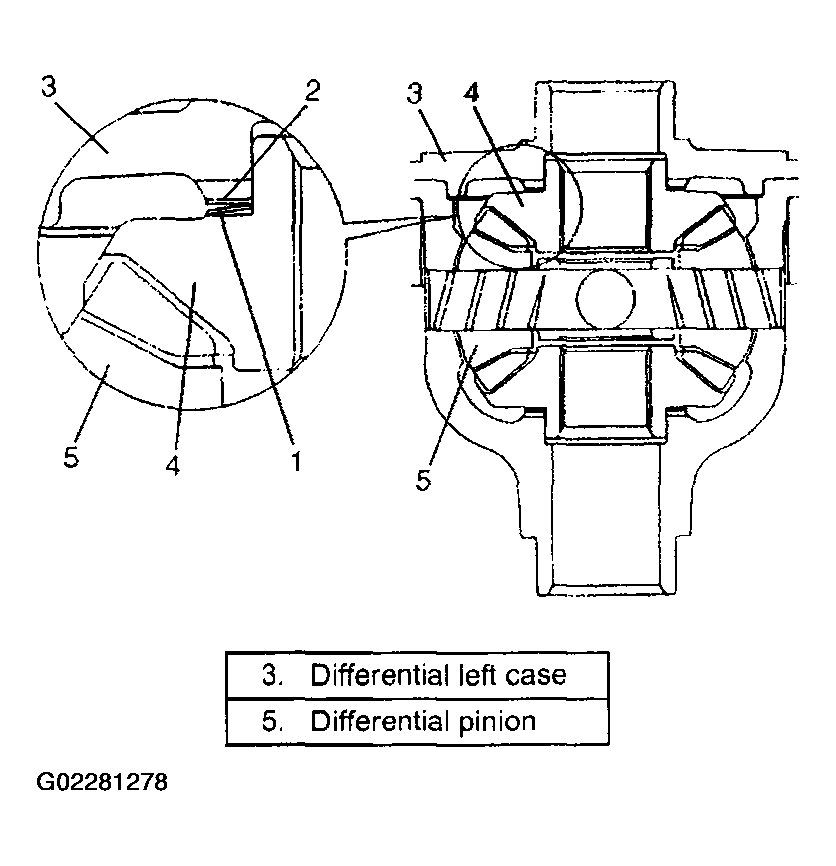

  4. In the same manner as described in Step 1), install thrust washer (2), spring washer (1) and differential gear (4).
    Fig 4: Installing Thrust Washer, Spring Washer & Differential Gear
    G02281278Courtesy of SUZUKI OF AMERICA CORP.
  5. Install differential left case (1) and then tighten screws to specified torque.

    "A":  Thread lock cement 99000-32110

    Tightening torque

    1. Differential case screw (a):  9 N.m (0.9 kg-m, 6.5 lb-ft)
    Fig 5: Installing Differential Left Case
    G02281279Courtesy of SUZUKI OF AMERICA CORP.
  6. Clean and degrease mating surface of drive bevel gear (hypoid gear) (1).
  7. Apply thread lock cement to hatched part of drive bevel gear (1) as shown in the figure.
    1. "A":  Thread lock cement 99000-32110
    Fig 6: Applying Thread Lock Cement To Drive Bevel Gear
    G02281280Courtesy of SUZUKI OF AMERICA CORP.
  8. Put drive bevel gear (3) on differential case (1) and fasten them with bolts (2) by tightening them to specified torque. Use thread lock cement for bolts (2).
    CAUTION: Use of any other bolts than that specified is prohibited.

    "A":  Thread lock cement 99000-32110

    Tightening torque

    1. Bevel gear bolt (a):  Tighten 40 N m (4.0 kg-m, 29.5 lb-ft) + 50° (H27 engine model)
    Fig 7: Installing Drive Bevel Gear On Differential Case
    G02281281Courtesy of SUZUKI OF AMERICA CORP.

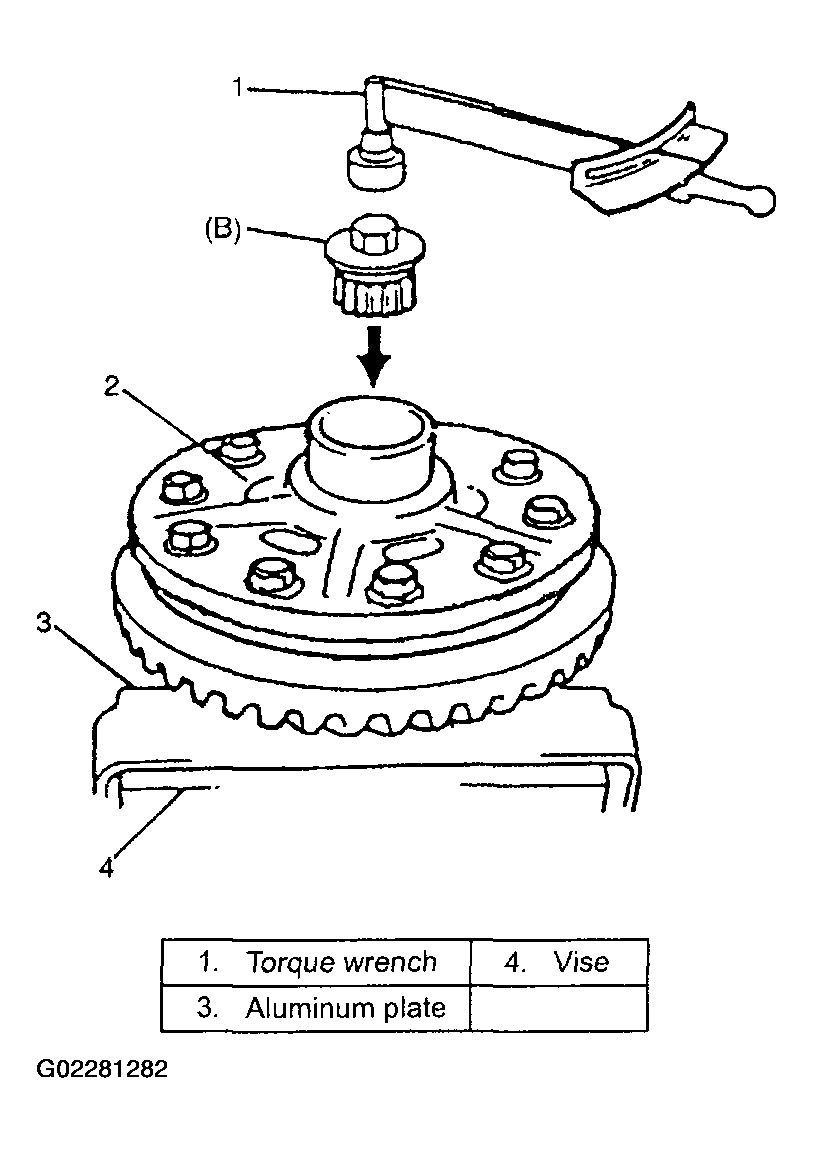

  9. Install special tool to differential case assembly (2) and check that preload is within specification. If preload exceeds specified value, check if foreign matter is caught or gear is damaged.

    Special tool

    1. (B):  09928-06510

    Side gear preload

    1. Max:  2.5 N m (0.25 kg-m, 1.8 lb-ft)
    Fig 8: Installing Special Tool To Differential Case Assembly
    G02281282Courtesy of SUZUKI OF AMERICA CORP.
