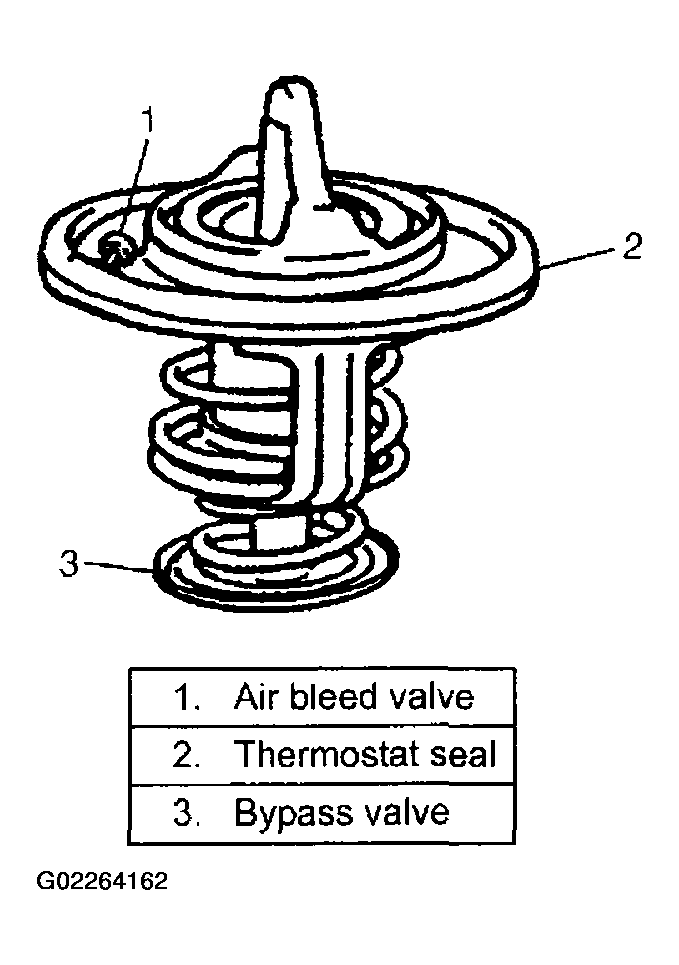

Thermostat Description
WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
Temperature at which valve begins to open
80 - 84°C (176 - 183°F)
Temperature at which valve becomes fully open
95°C (203°F)
Valve lift
More than 8 mm (0.315 in) at 95°C (203°F)
Courtesy of SUZUKI OF AMERICA CORP.
