Special Tool

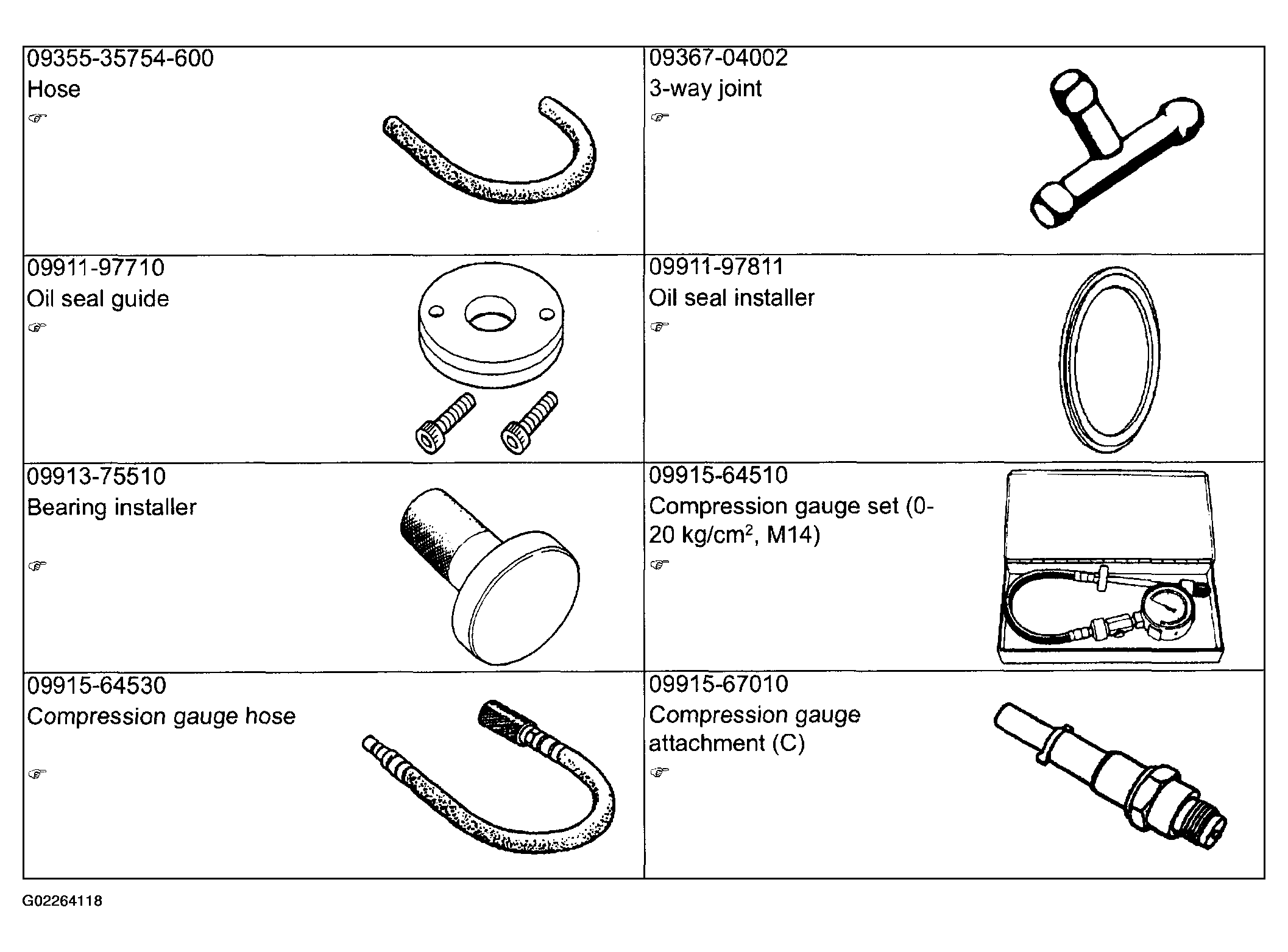

Fig 1: Special Tools (1 Of 3)
G02264118Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: Special Tools (2 Of 3)
G02264119Courtesy of SUZUKI OF AMERICA CORP.

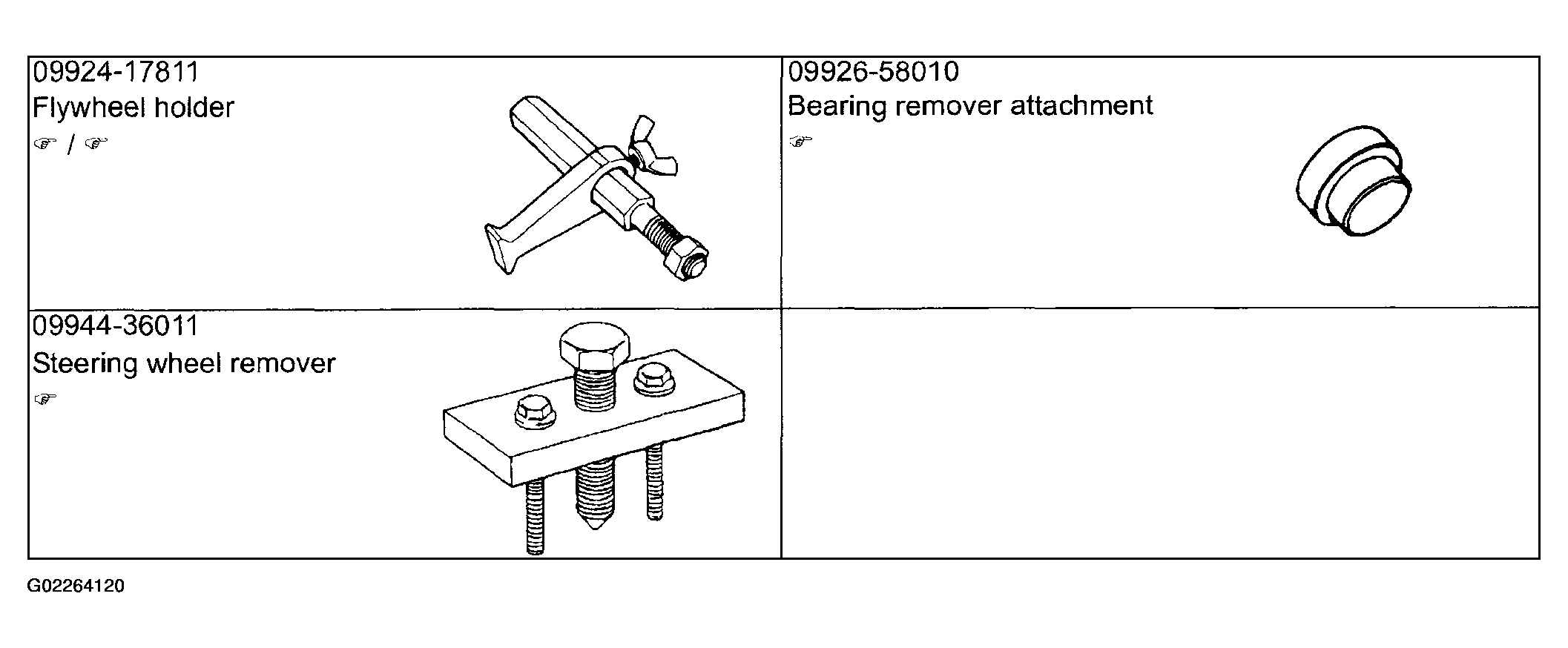

Fig 3: Special Tools (3 Of 3)
G02264120Courtesy of SUZUKI OF AMERICA CORP.
