Valves & Cylinder Heads Components

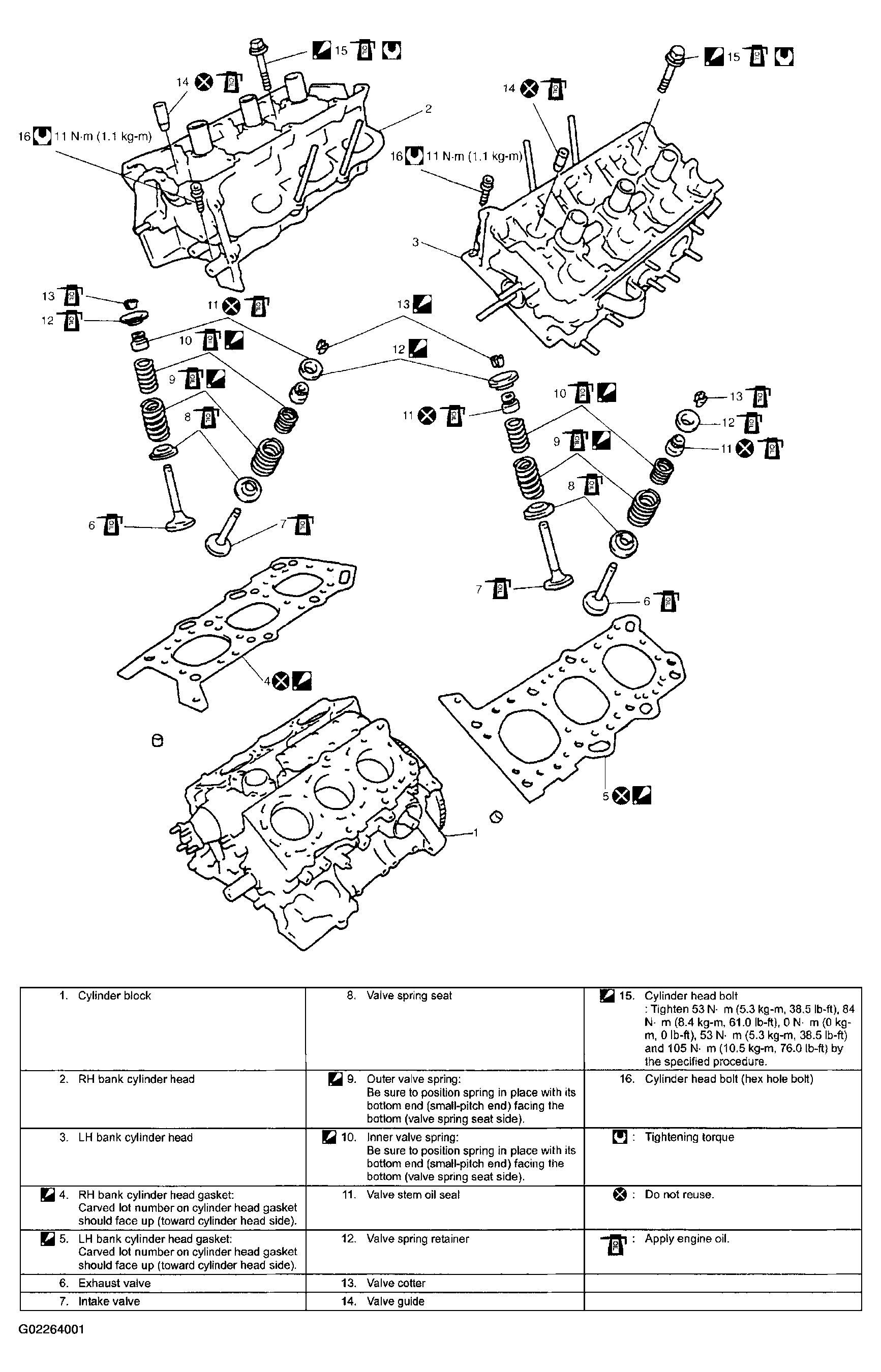

Fig 1: Exploded View Of Valves & Cylinder Heads Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
