Timing Chain Cover Components
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Timing Chain Cover Components

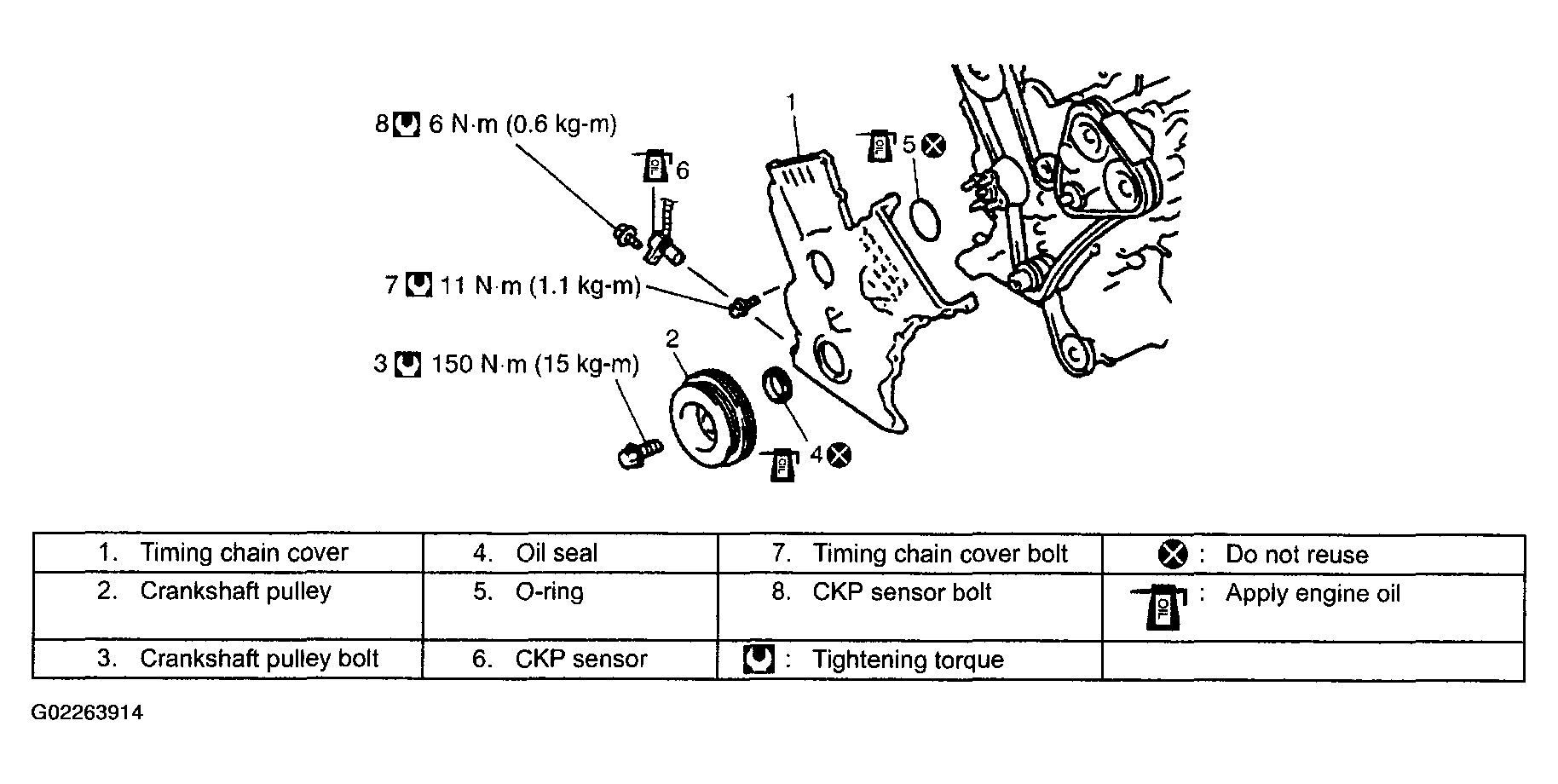

Fig 1: Exploded View Of Timing Chain Cover Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
