Throttle Body & Intake Manifold Components

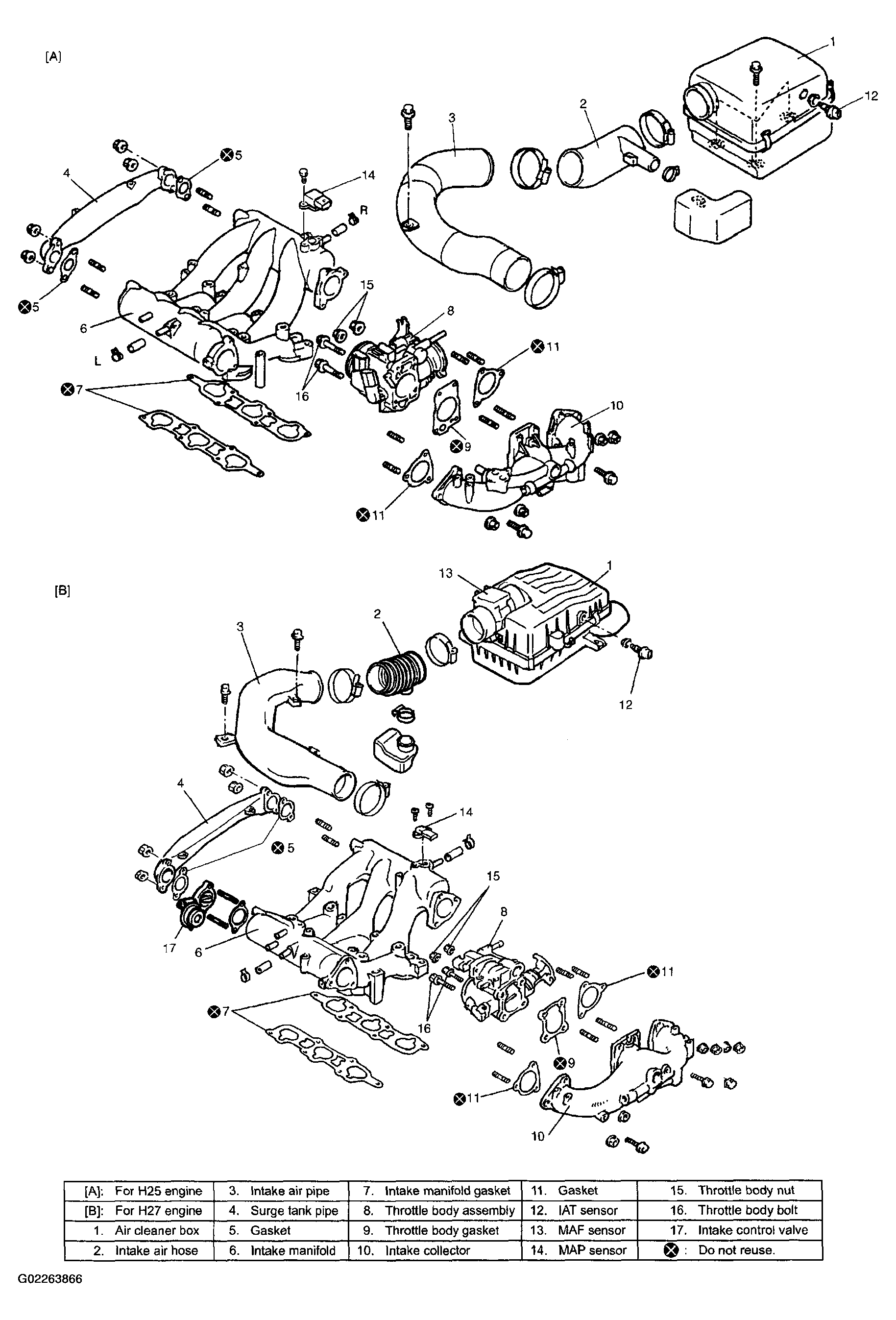

Fig 1: Exploded View Of Throttle Body & Intake Manifold Components
G02263866Courtesy of SUZUKI OF AMERICA CORP.
