1st Timing Chain & Chain Tensioner Components

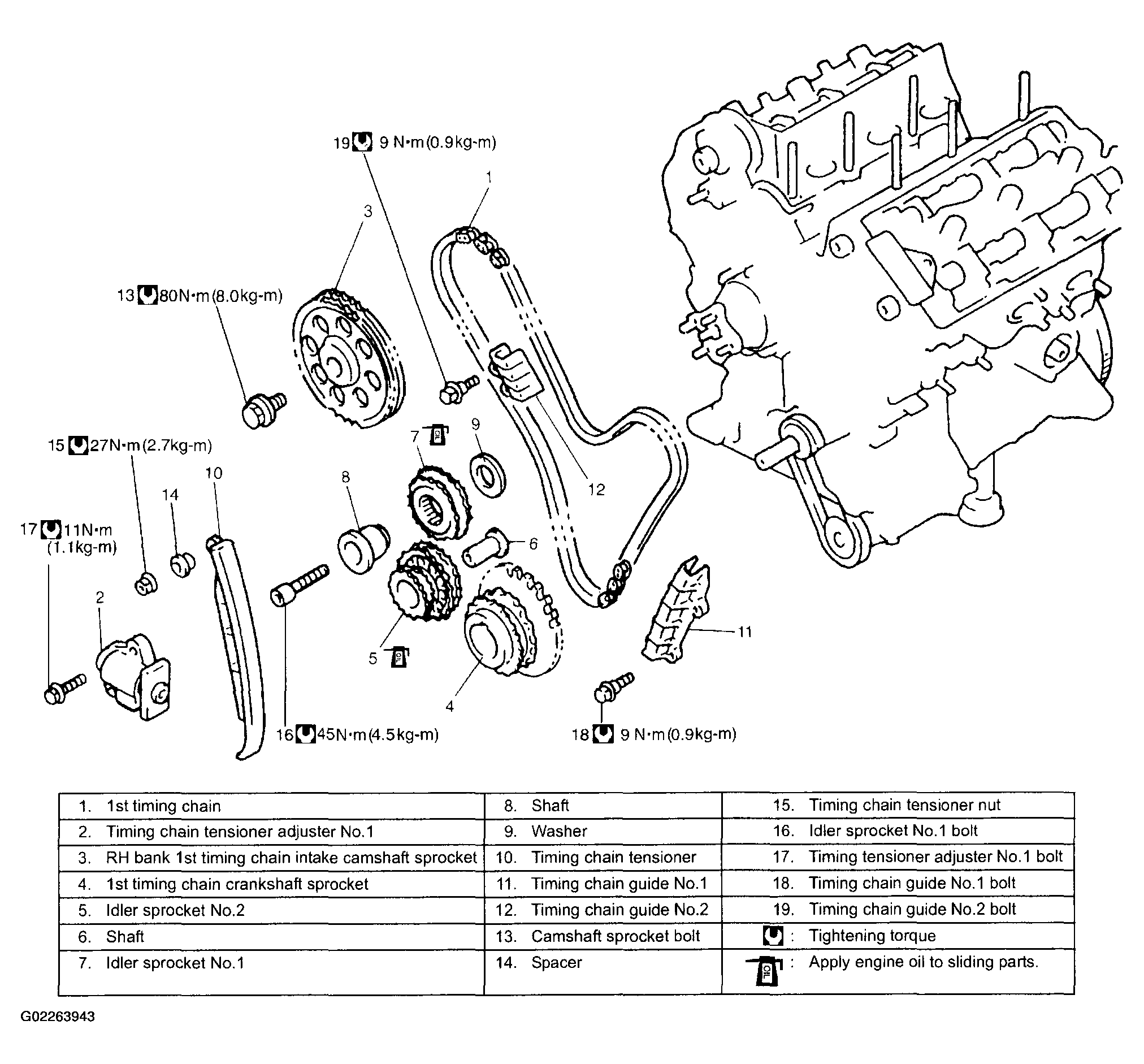

Fig 1: Exploded View Of 1st Timing Chain & Chain Tensioner Components
G02263943Courtesy of SUZUKI OF AMERICA CORP.
