Power Sun Roof: Overhaul

NOTE: Refer to exploded view for sun roof frame and rail assembly unit overhaul. See Fig 1 .

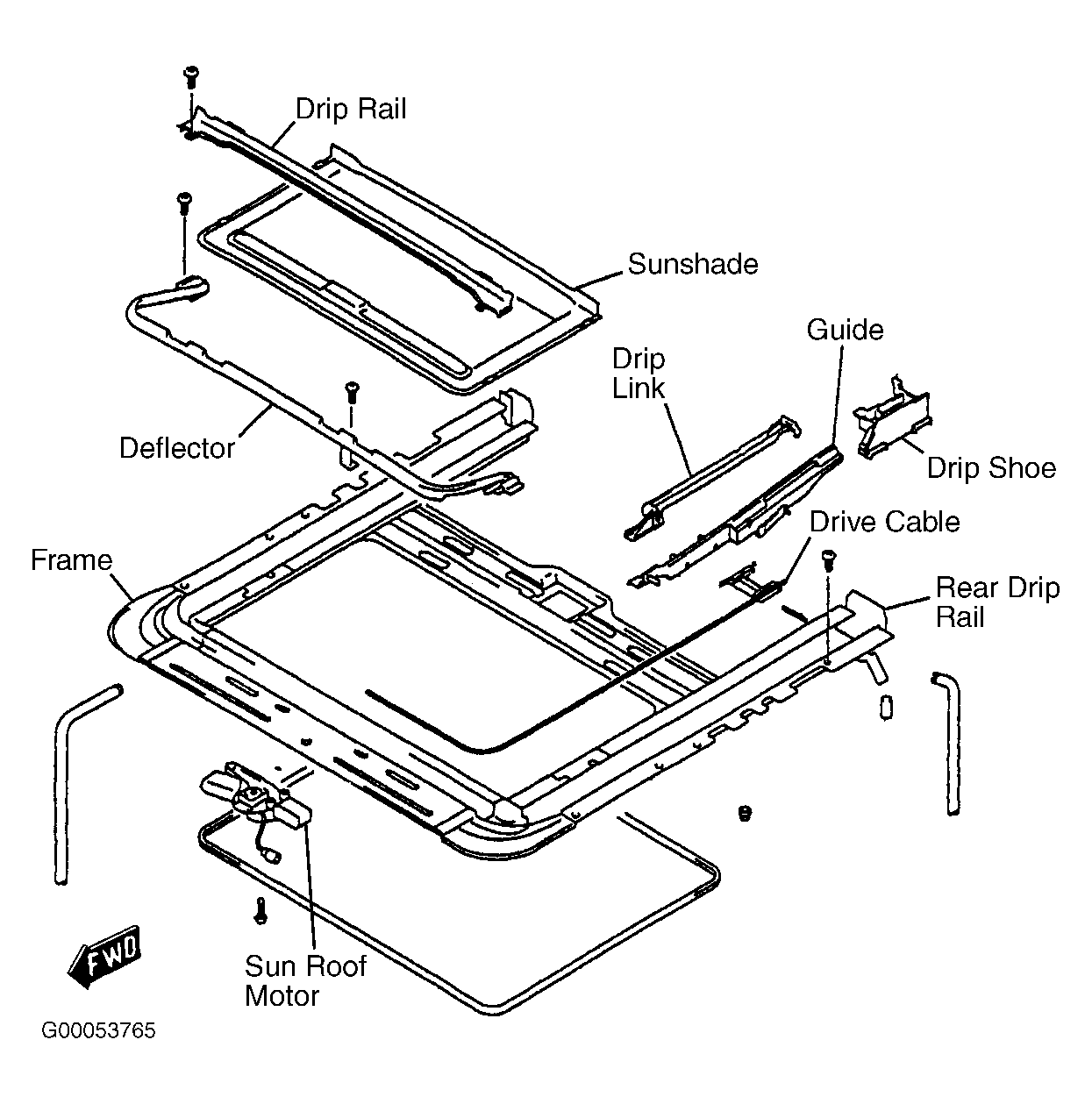

Fig 1: Exploded View Of Sun Roof Frame Rail & Guide Assembly
G00053765Courtesy of SUZUKI OF AMERICA CORP.
