Sun Roof Switch Panel

Remove sun roof switch panel from headliner. Disconnect sun roof switch panel 6-pin in-line connector. Using DVOM, check for continuity between specified terminals of sun roof switch panel, while depressing appropriate sun roof switch panel switch. See Fig 1 . See SUN ROOF SWITCH CONTINUITY table. If any readings does not indicate continuity when specified, replace faulty sun roof switch panel.

SUN ROOF SWITCH CONTINUITY

Switch (Position) ⁽¹⁾

Terminal No.

Slide Switch

Open

3 & 4

4 & 6

Tilt Switch

4 & 5

Down

2 & 4

⁽¹⁾	When both sun roof switch panel switches are in rest position, continuity should not exist between any terminals.

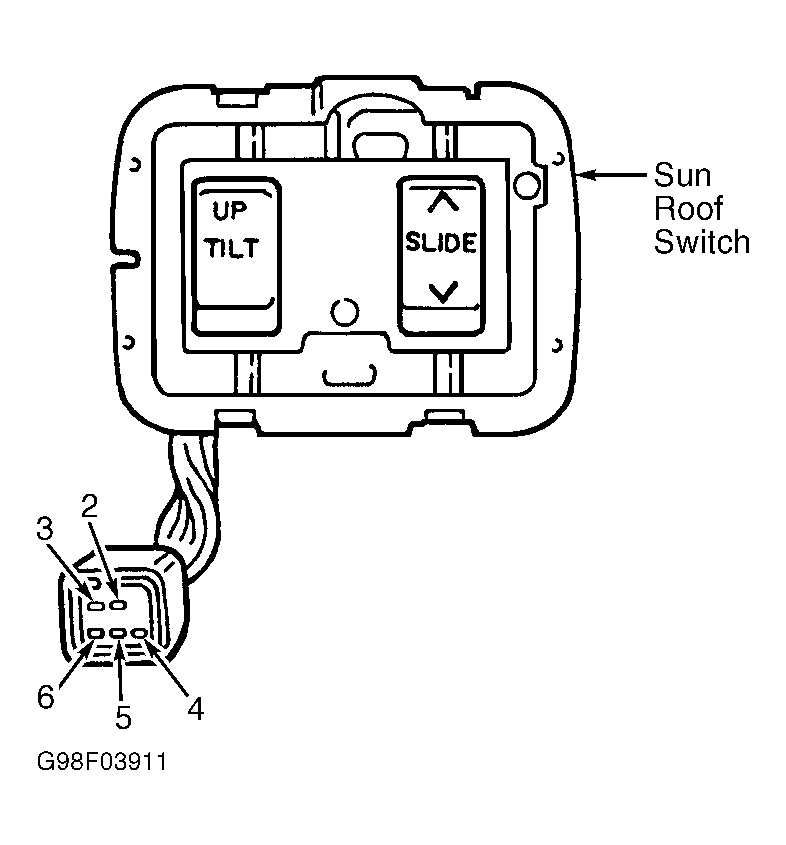

Fig 1: Identifying Terminals Of Sun Roof Switch Panel

Courtesy of SUZUKI OF AMERICA CORP.
