Grand Vitara & Vitara
- Turn ignition switch to OFF position. Disconnect CC ECU harness connector. Check for poor connection at CC ECU harness connector terminal No. 1 (Blue/Yellow). See Figure . Repair as necessary. If connection is okay, go to next step.

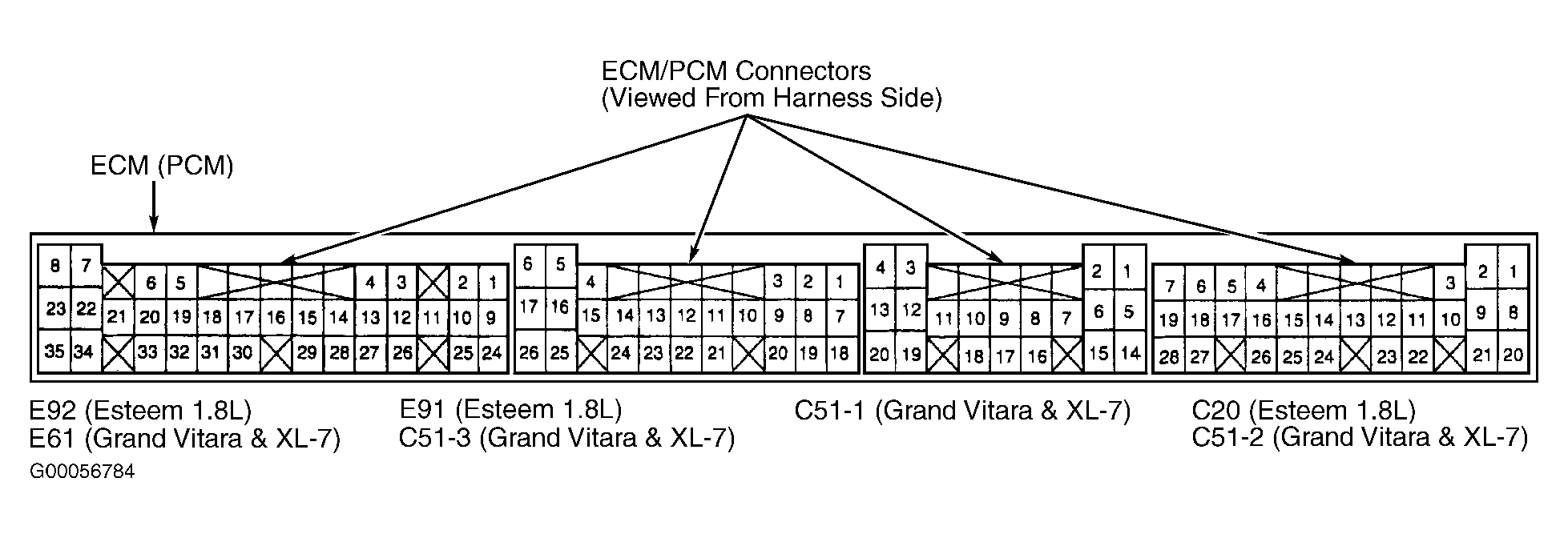

- Check continuity of Blue/Yellow wire between Vehicle Speed Sensor (VSS) connector terminal No. 1 and PCM connector terminal No. 1 (Blue/Yellow wire). See WIRING DIAGRAMS and Fig 1 . Repair as necessary.
