Clutch Pedal Position Switch: Installation

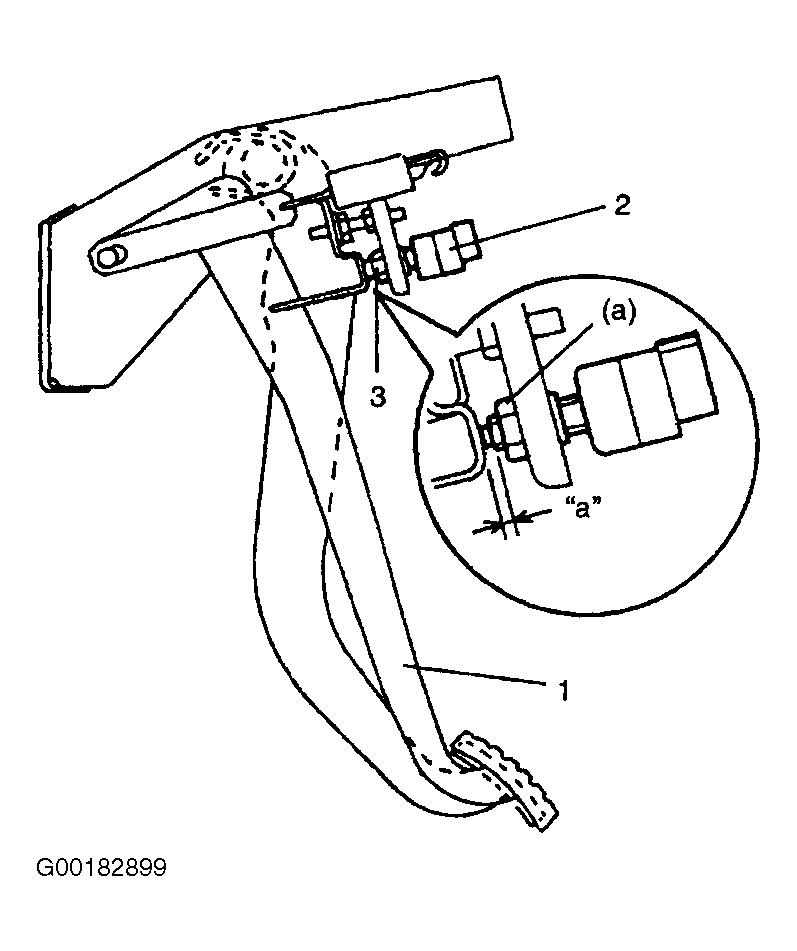

- Install CPP switch (2) pedal bracket.
- With clutch pedal (1) released, adjust switch position so that clearance between end of thread and clutch pedal bracket is .06-.08 in (a): (7.5 N.m)
- Tighten lock nut (3) to .06-.08 IN (1.5-2.0 mm).
Courtesy of SUZUKI OF AMERICA CORP.
- Connect connector to CPP switch securely.
- Install CPP switch (1) to pedal bracket (2).
- Pull up clutch pedal (3).
- Adjust switch position so that clearance between end of thread and clutch peal bracket is .06-.08 in (1.5-2.0 mm)
- Tighten lock nut to specified torque (a): 5.5 ft. lbs. (7.5 N.m).
- Connect connector to CPP switch (1) securely.
Courtesy of SUZUKI OF AMERICA CORP.
