"Power" Light Comes on Steadily
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
"Power" Light Comes on Steadily
"POWER" Light Comes ON Steadily

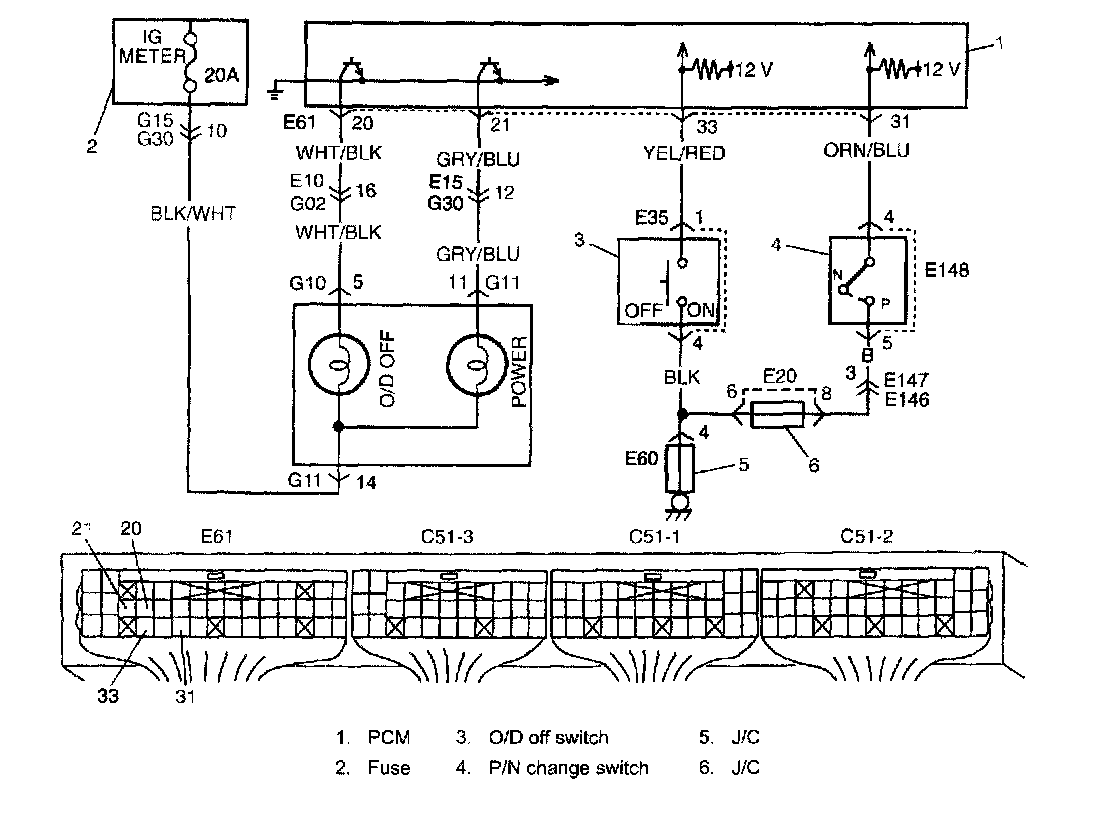

Wiring Diagram

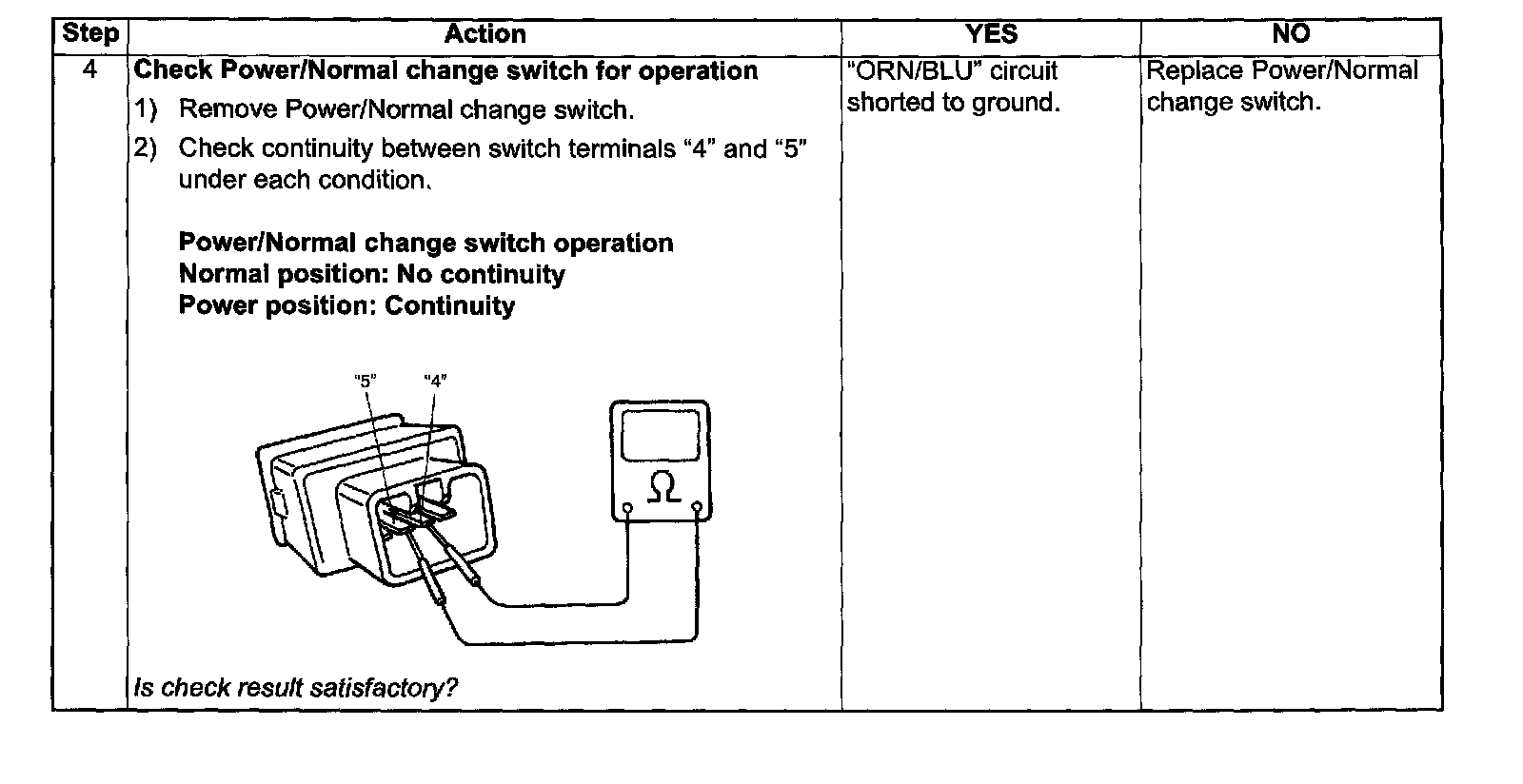

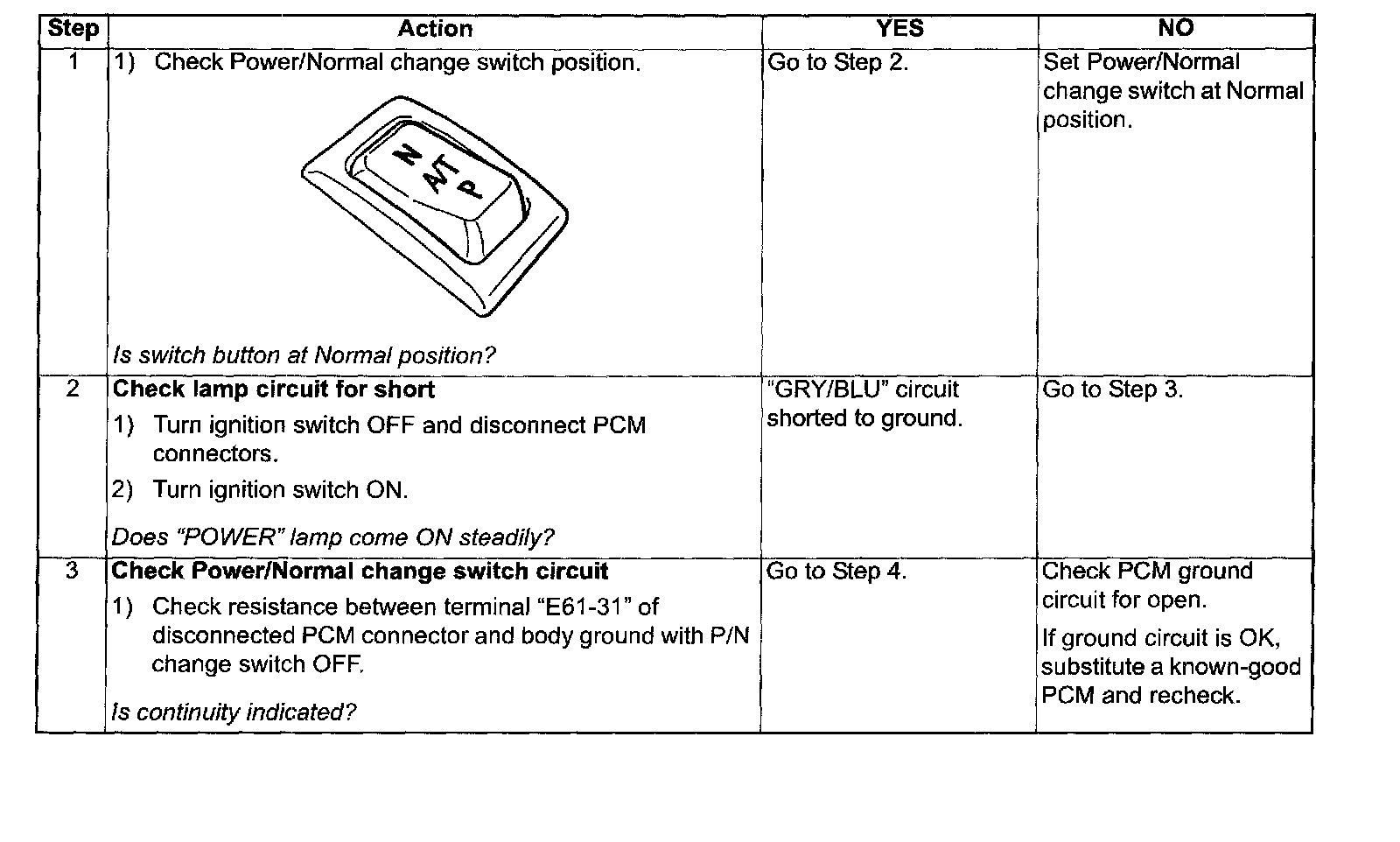

Troubleshooting
