"POWER" Light Doesn't Light at Ignition Switch on

"POWER" Light Doesn't Light at Ignition Switch ON but Engine Starts Up

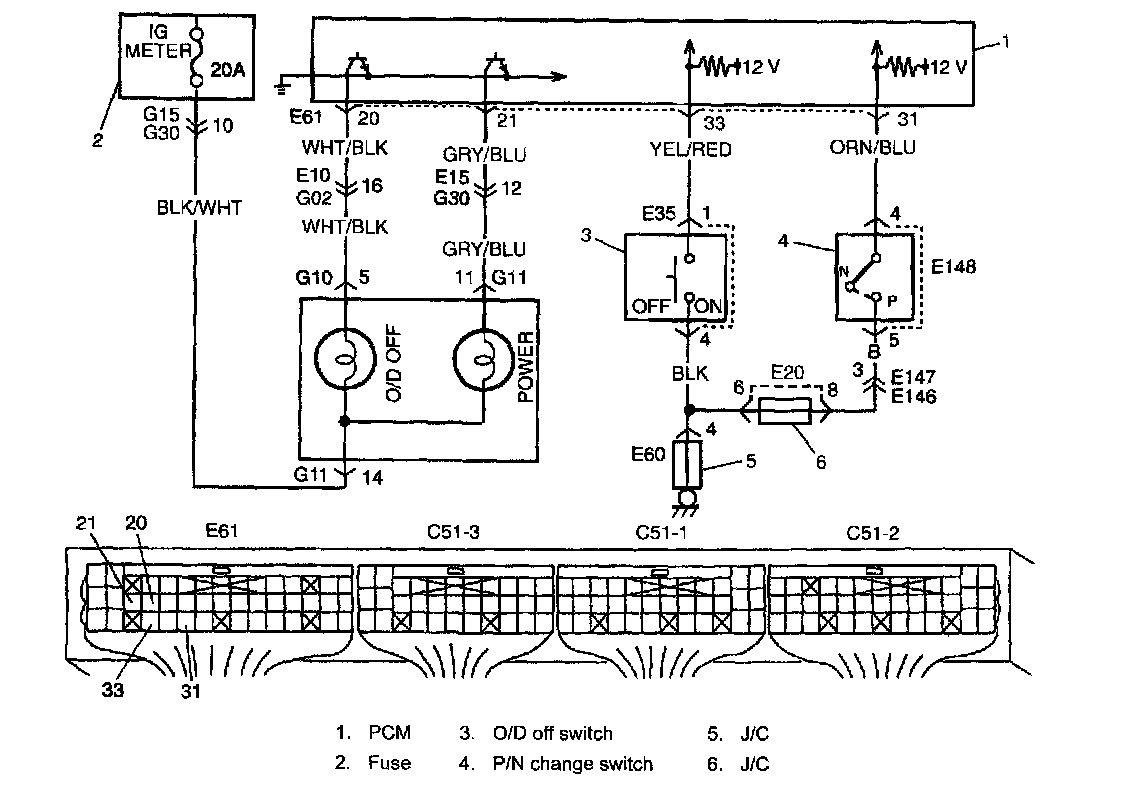

Wiring Diagram





Troubleshooting
