Schematic and Routing Diagram

Automatic Gear Shift Diagram
Automatic shift schedule as a result of shift control is shown. In case that select lever is shifted to "L" at a higher than 55 km/h or 34 mph speed, 2nd or 3rd gear is operated and then down shifts to "1st" at a speed lower than that. No up shift is available in "L".
The same as, the select lever is shifted to "2" at a higher than 105 km/h (65 mph) speed, 3rd gear is operated and then down shifts to "2nd" at a speed lower than that.

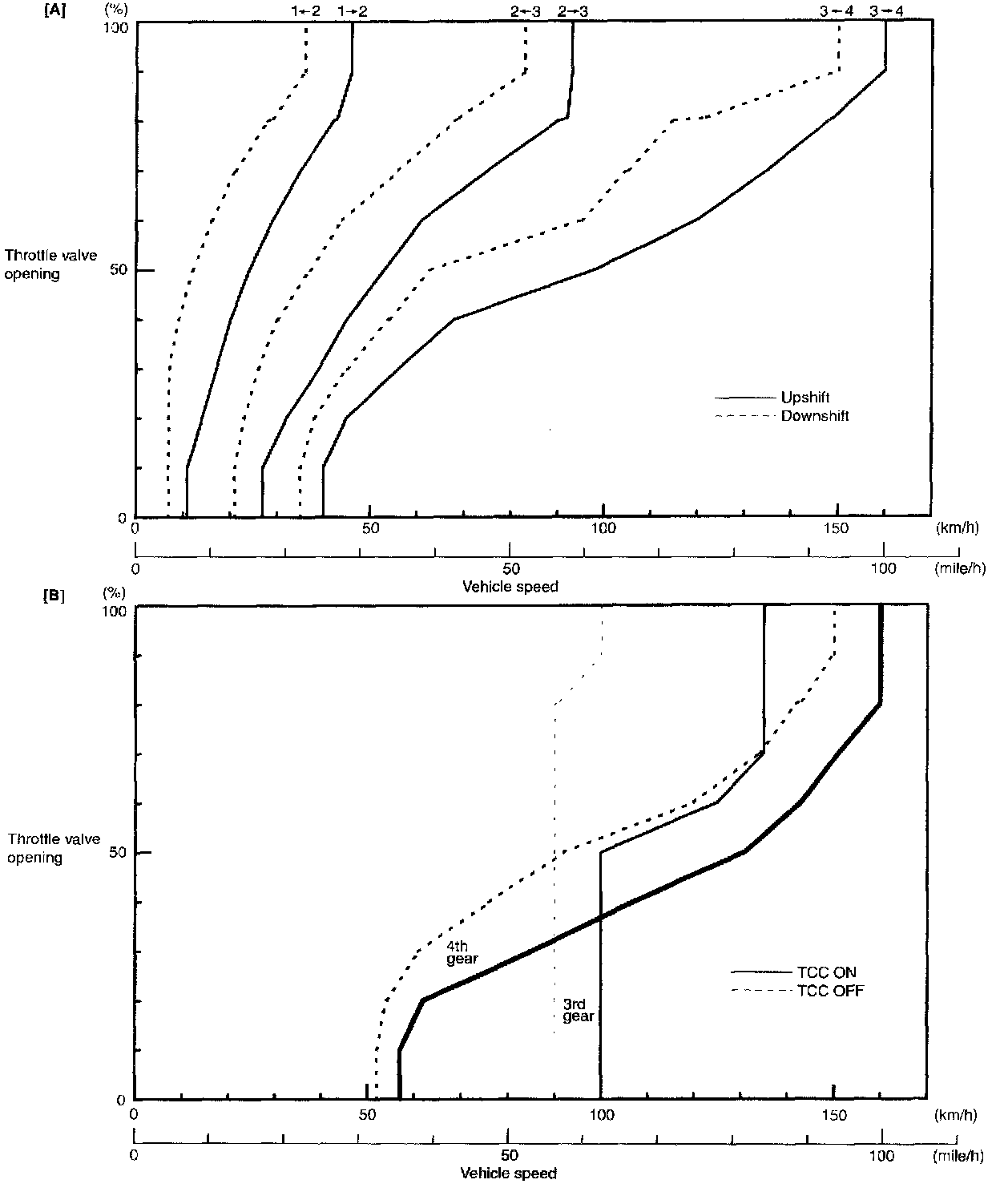

[Power Mode]





Gear Shift Diagram [A] and TCC Lock-Up Diagram [B]





[Normal Mode]





Gear Shift Diagram [A] and TCC Lock-Up Diagram [B]

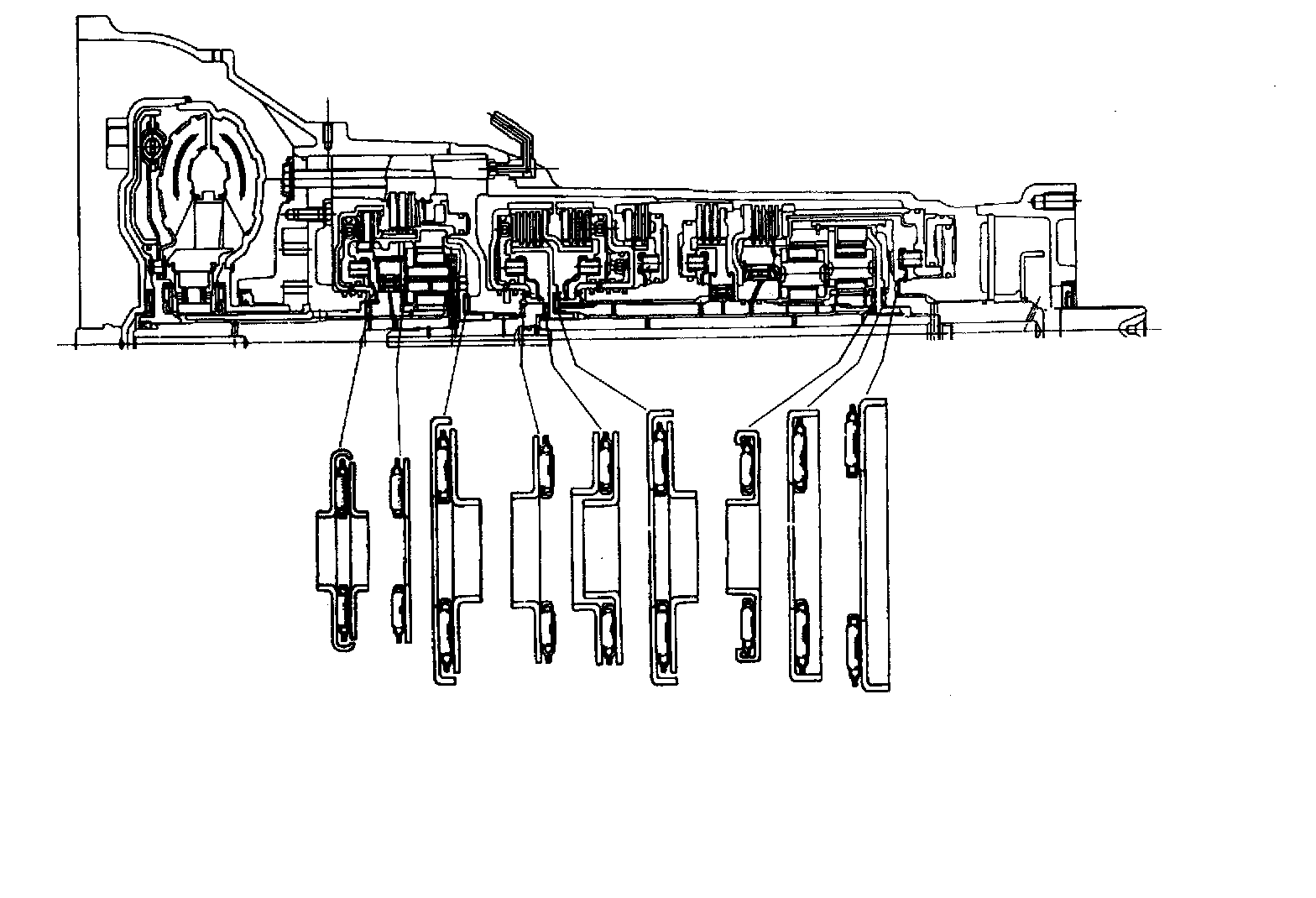

Bearing and Race Installation Diagram
