Fail Safe Operation

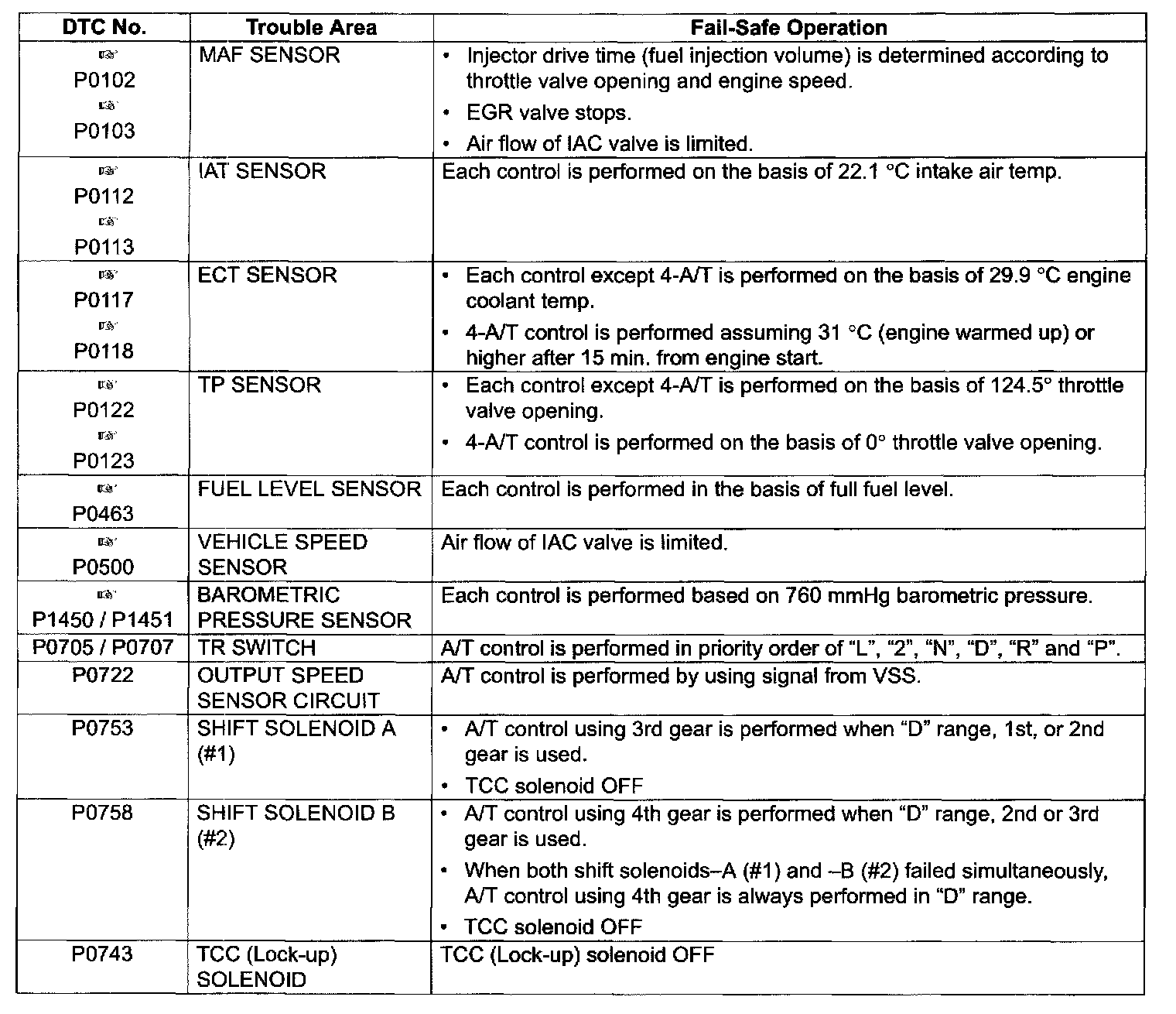

DTC No P0102 - P0743:




When any of the above DTCs is detected, ECM (PCM) enters fail-safe mode as long as malfunction continues to exist but that mode is canceled when ECM detects normal condition after that.
