Idle Air Control (IAC) System Check

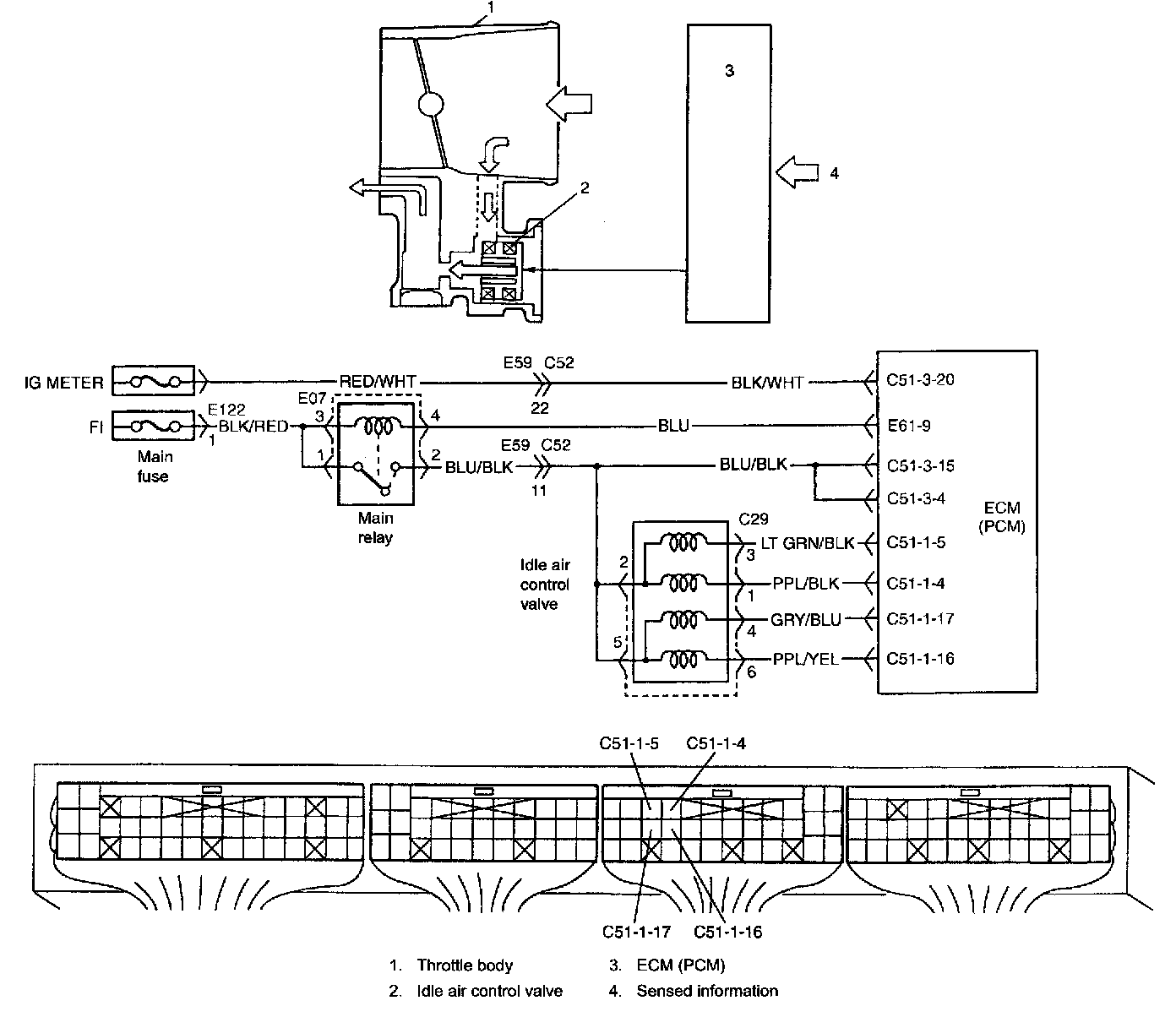

System / Wiring Diagram:




System / Wiring Diagram

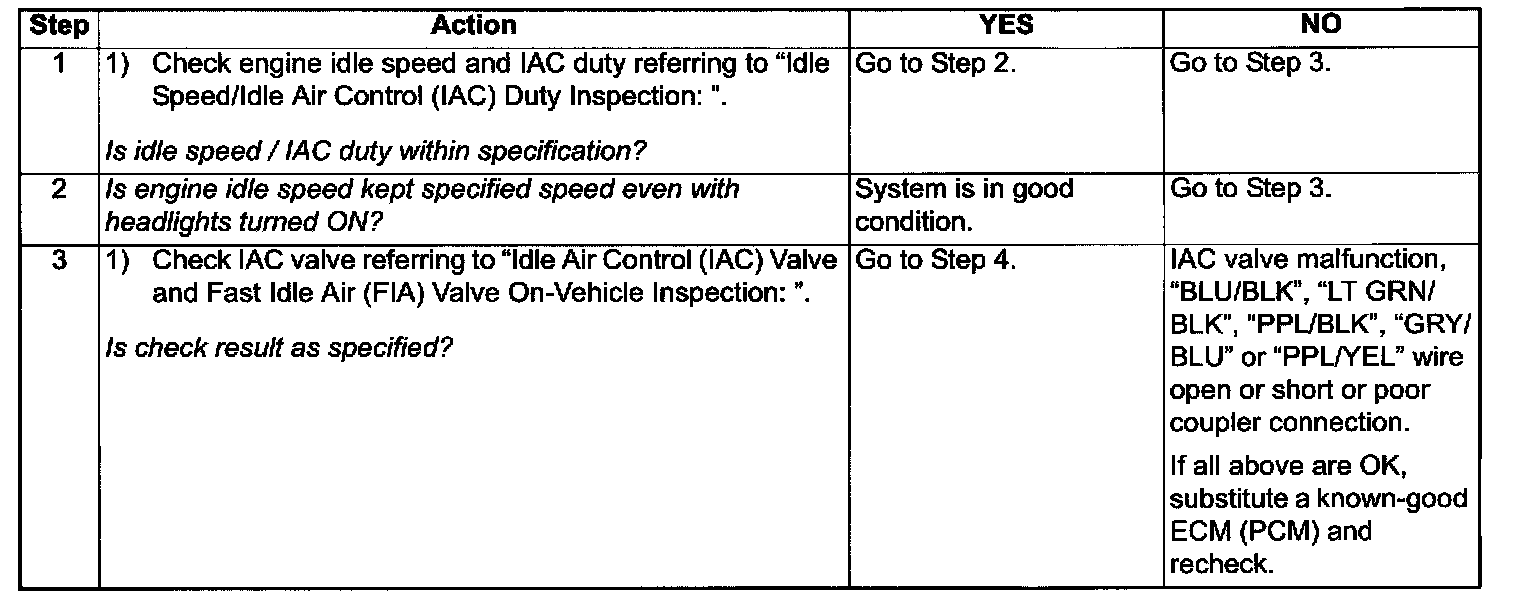

Step 1 - 3:

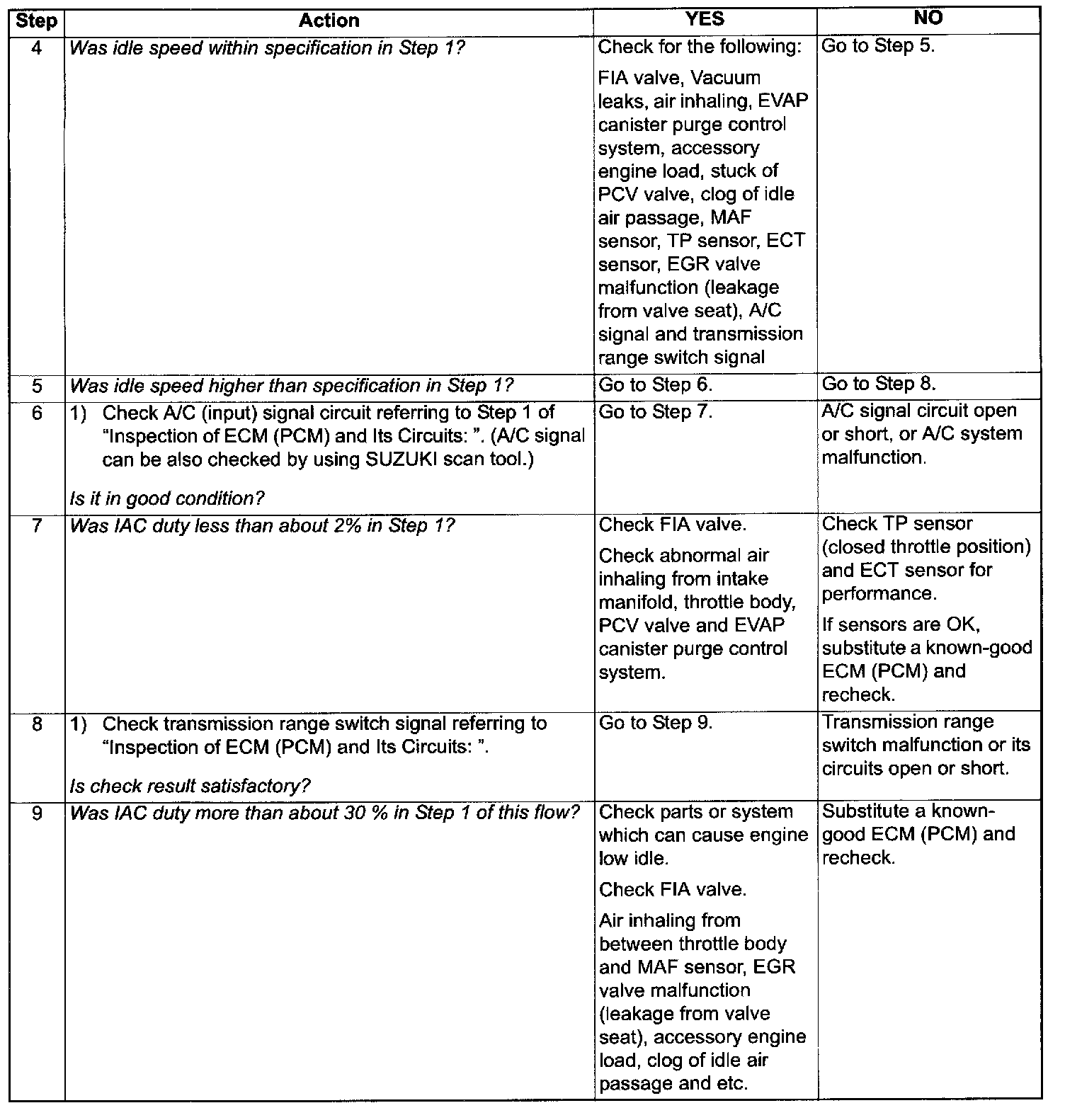

Step 4 - 9:




Troubleshooting
