Diagnosis By Symptom - A/C System

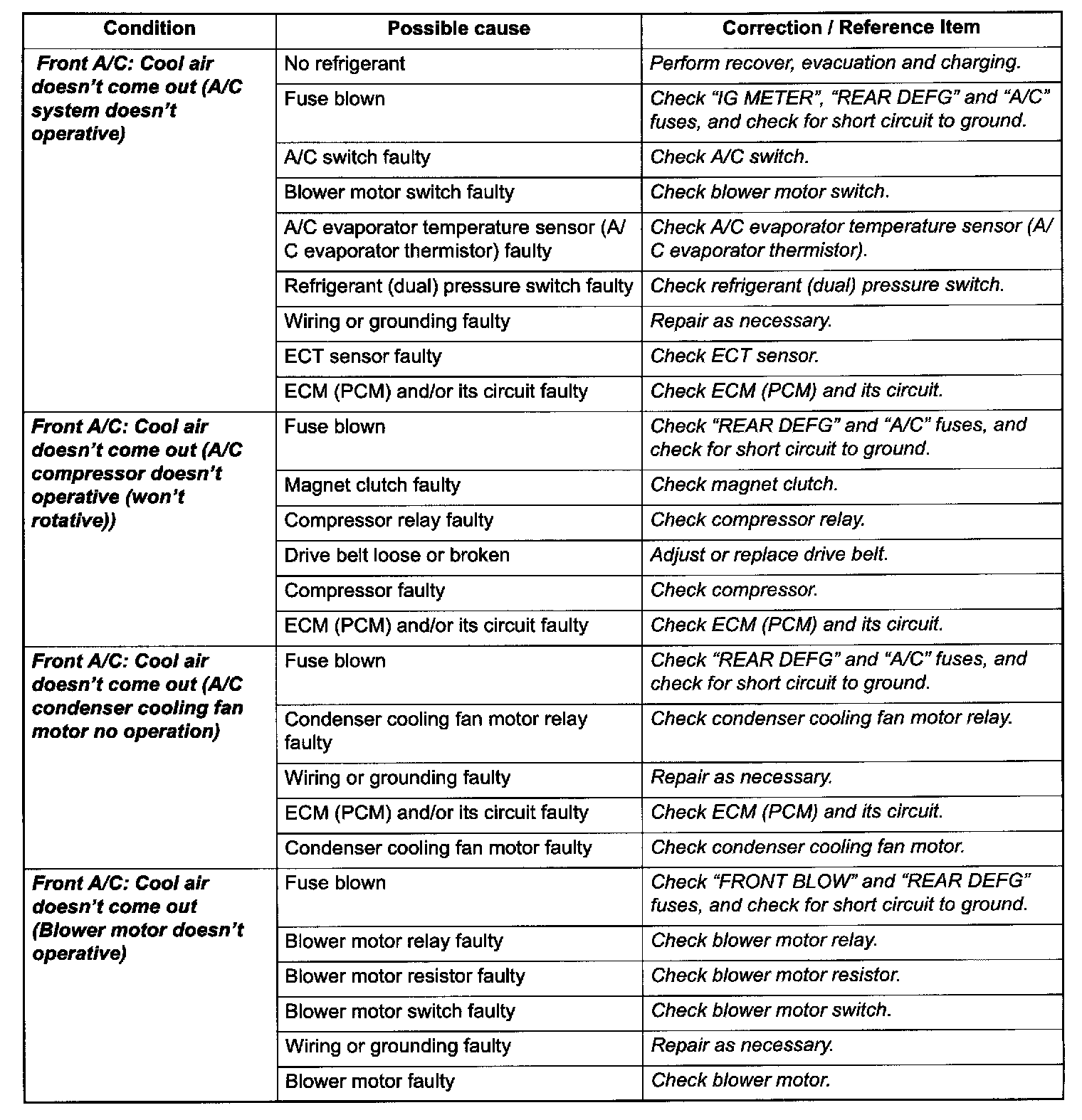

Main (Front) A/C System Condition / Possible Cause Part - 1:

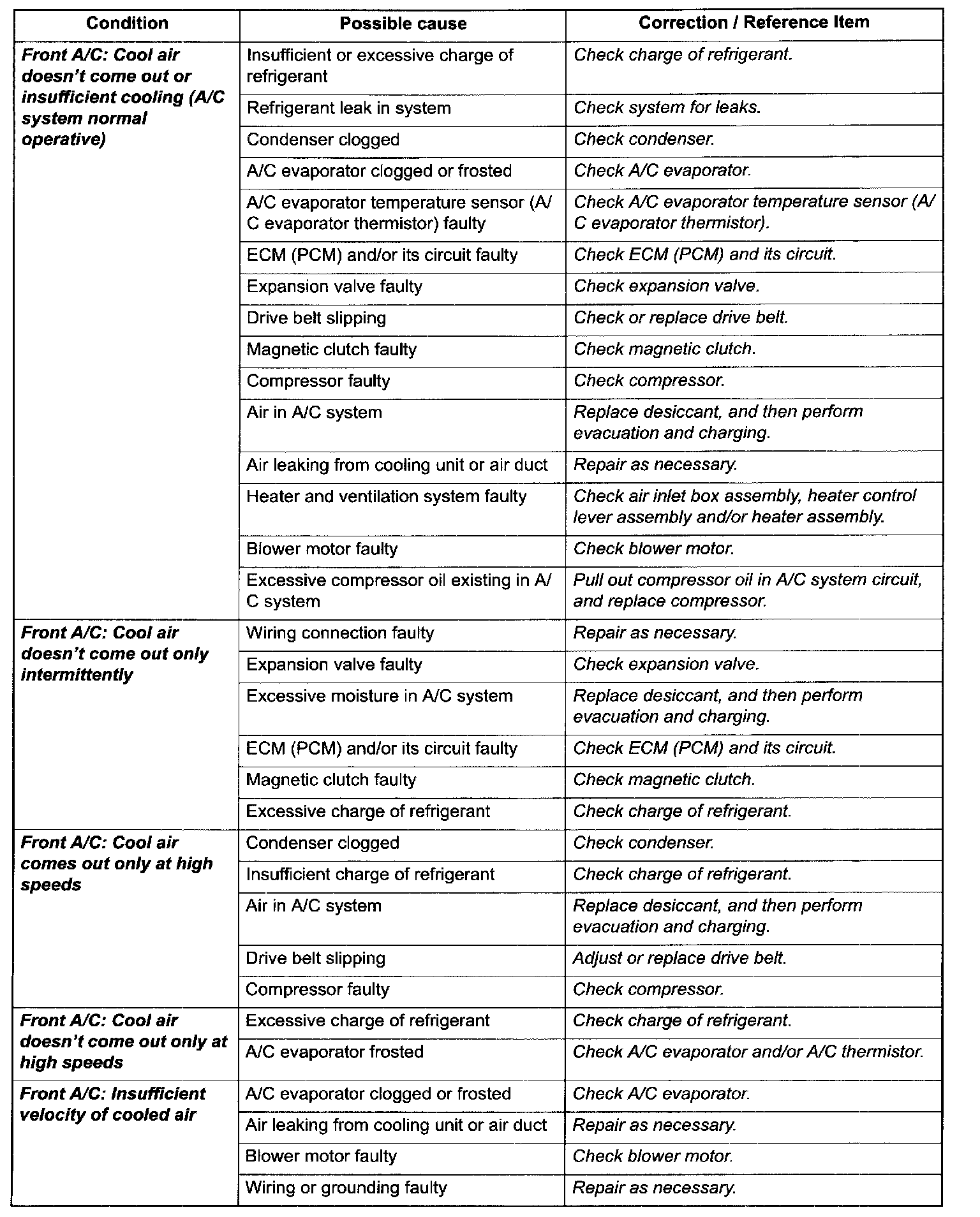

Main (Front) A/C System Condition / Possible Cause Part - 2:

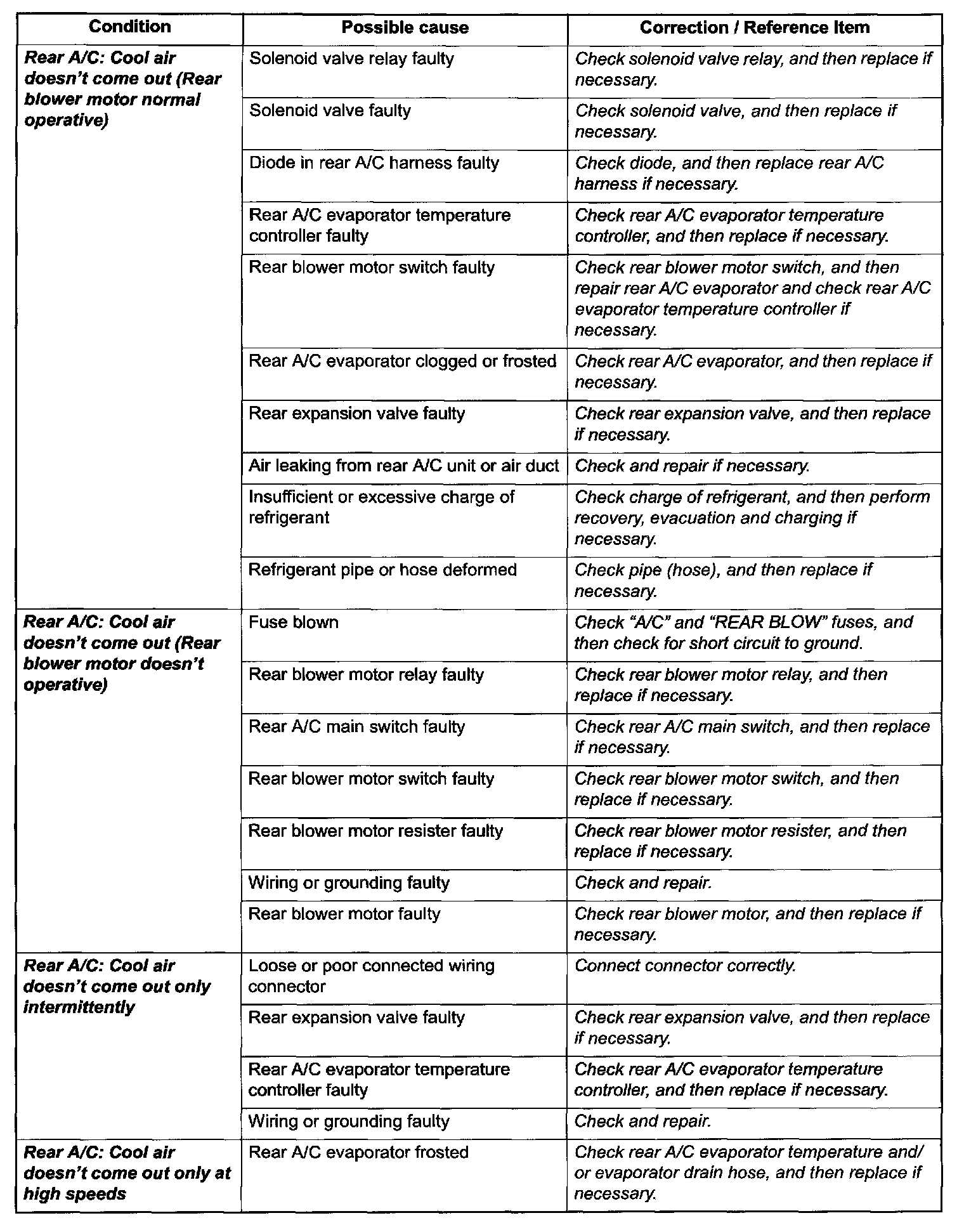

Rear A/C System Condition / Possible Cause Part - 1:



Rear A/C System Condition / Possible Cause Part - 2:
