Mirrors

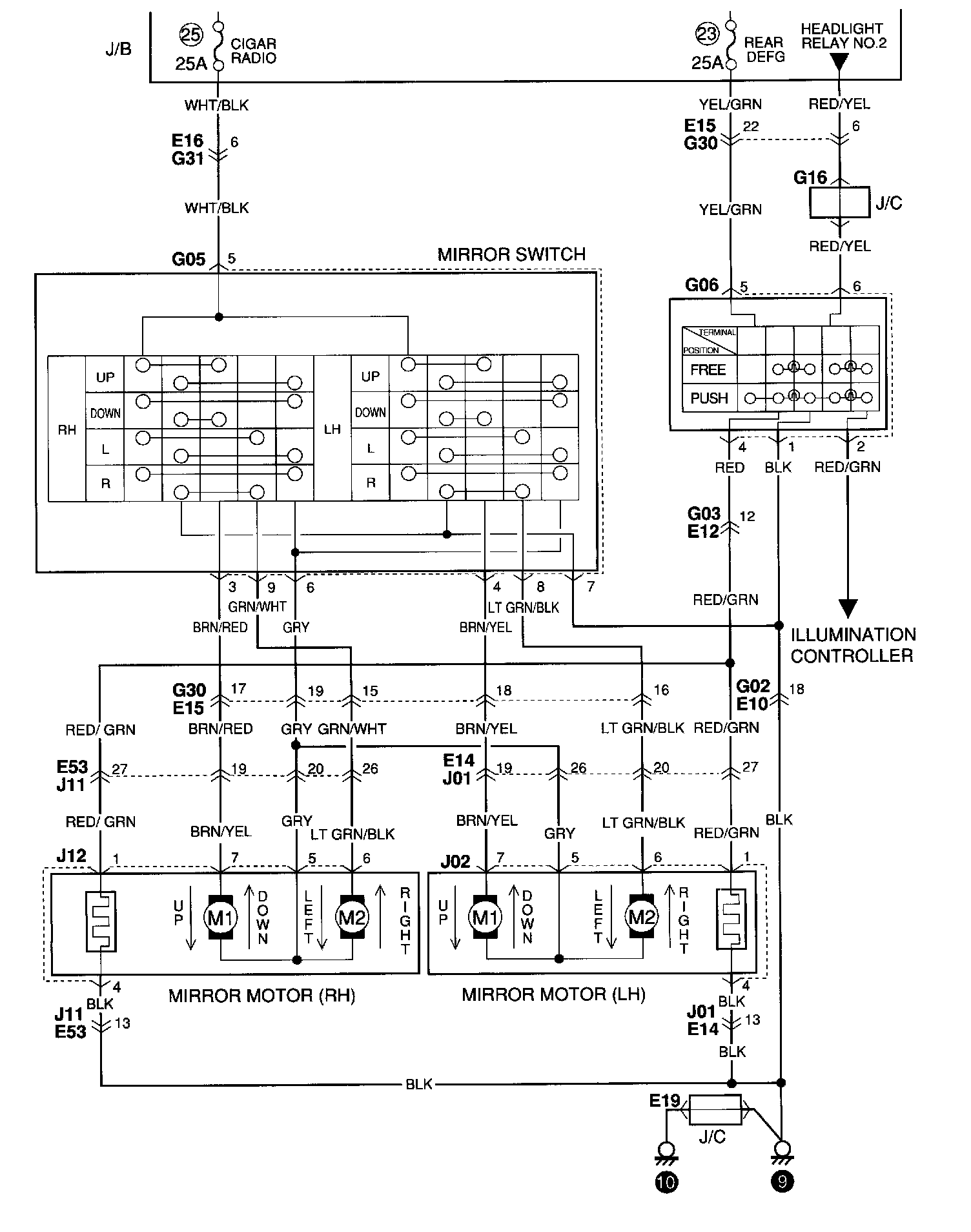

Remote Controlled / Headed Mirror Circuit Diagram:

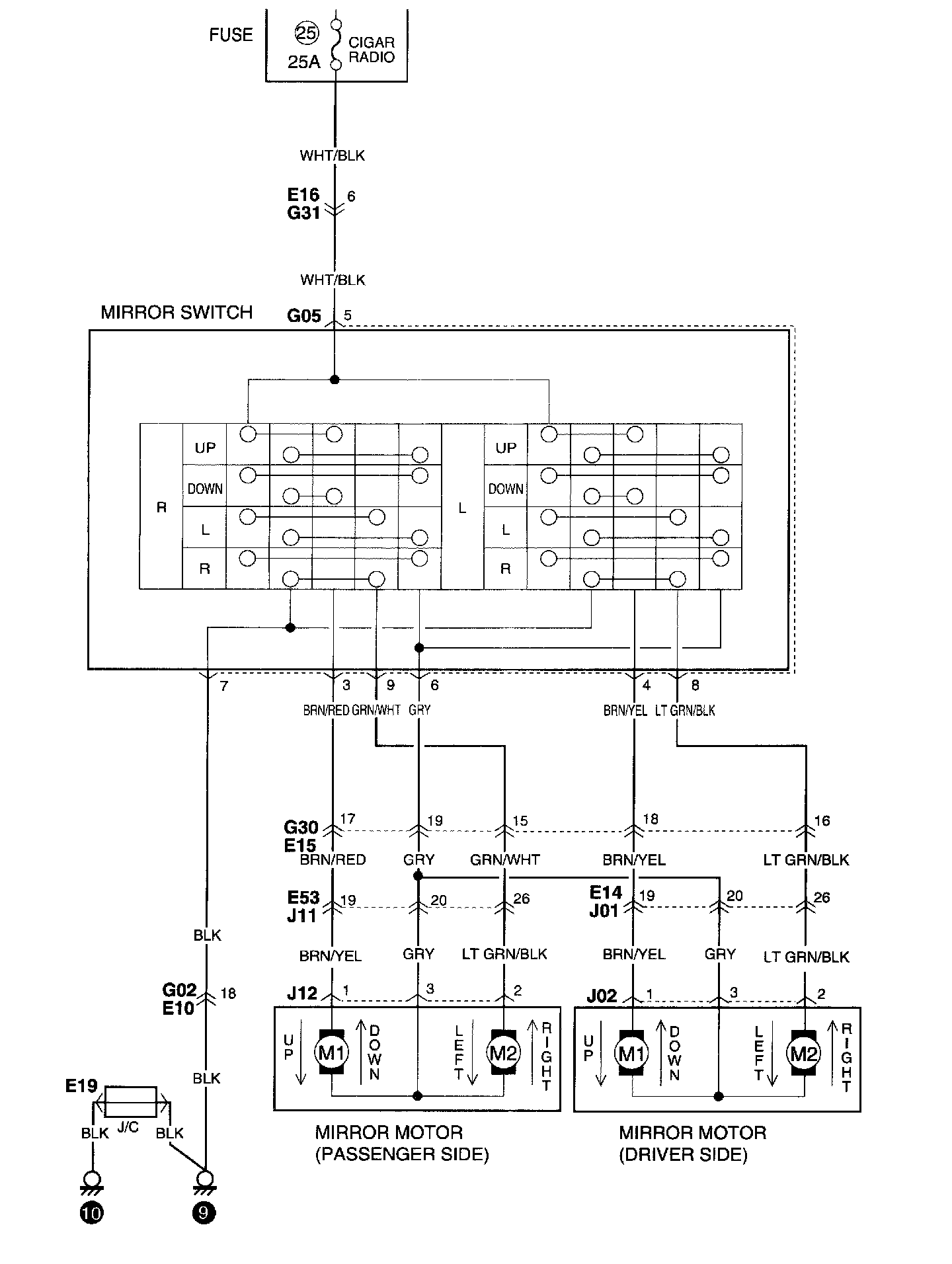

Remote Controlled Mirror Circuit Diagram:
