Heating and Air Conditioning

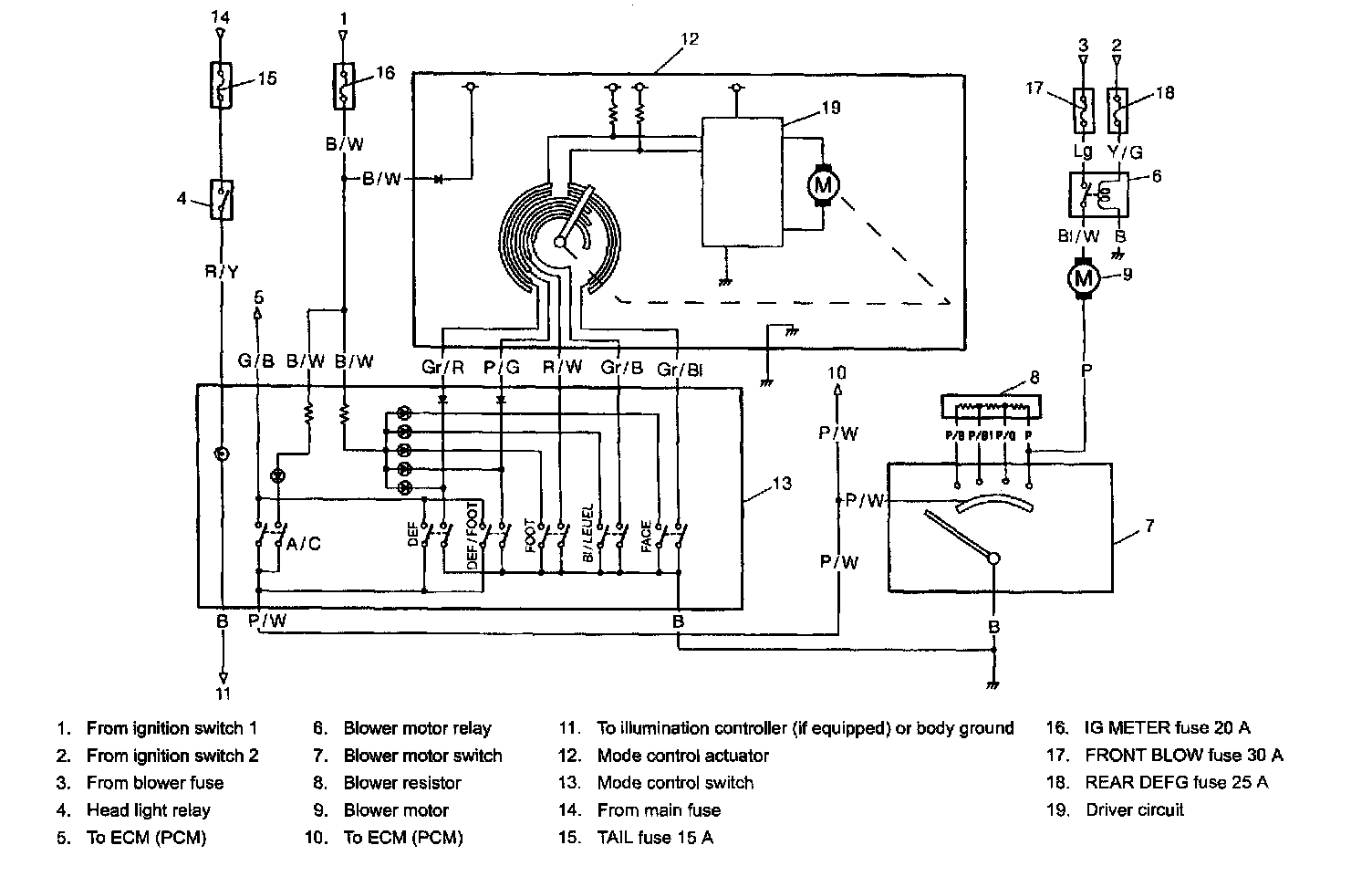

Heater And Ventilation Wiring Circuit Diagram:

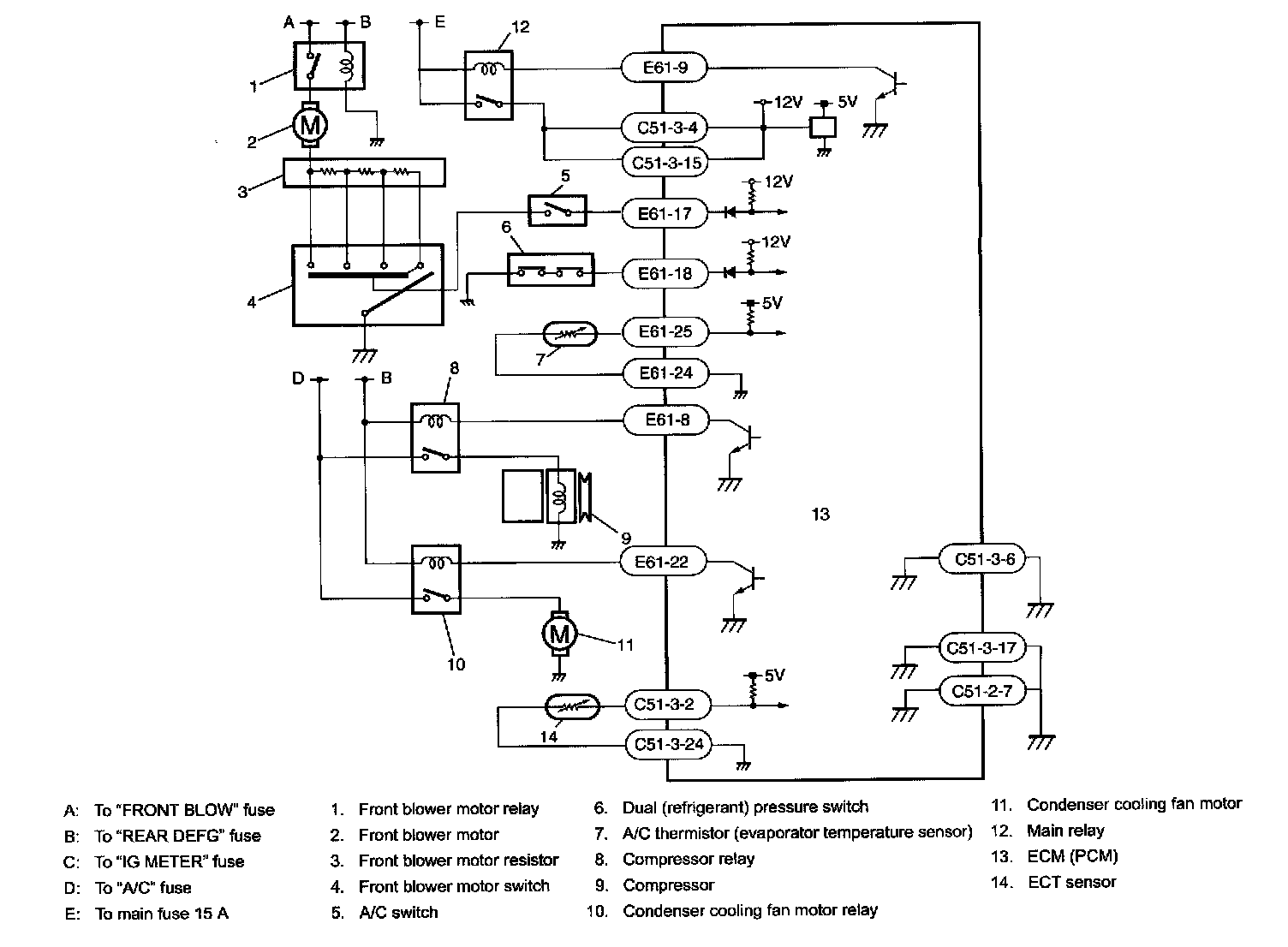

A/C System Wiring Circuit Diagram:

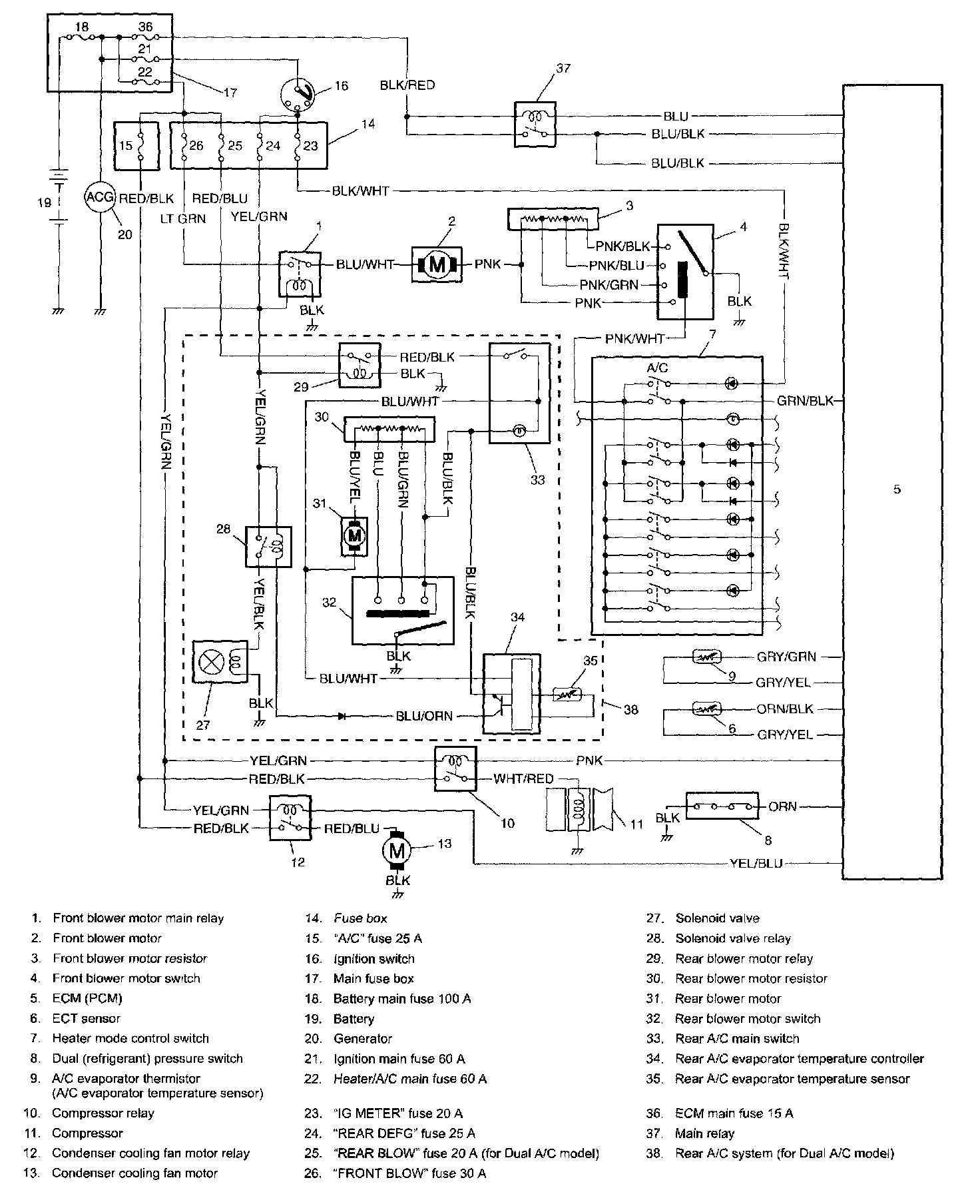

System Circuit:

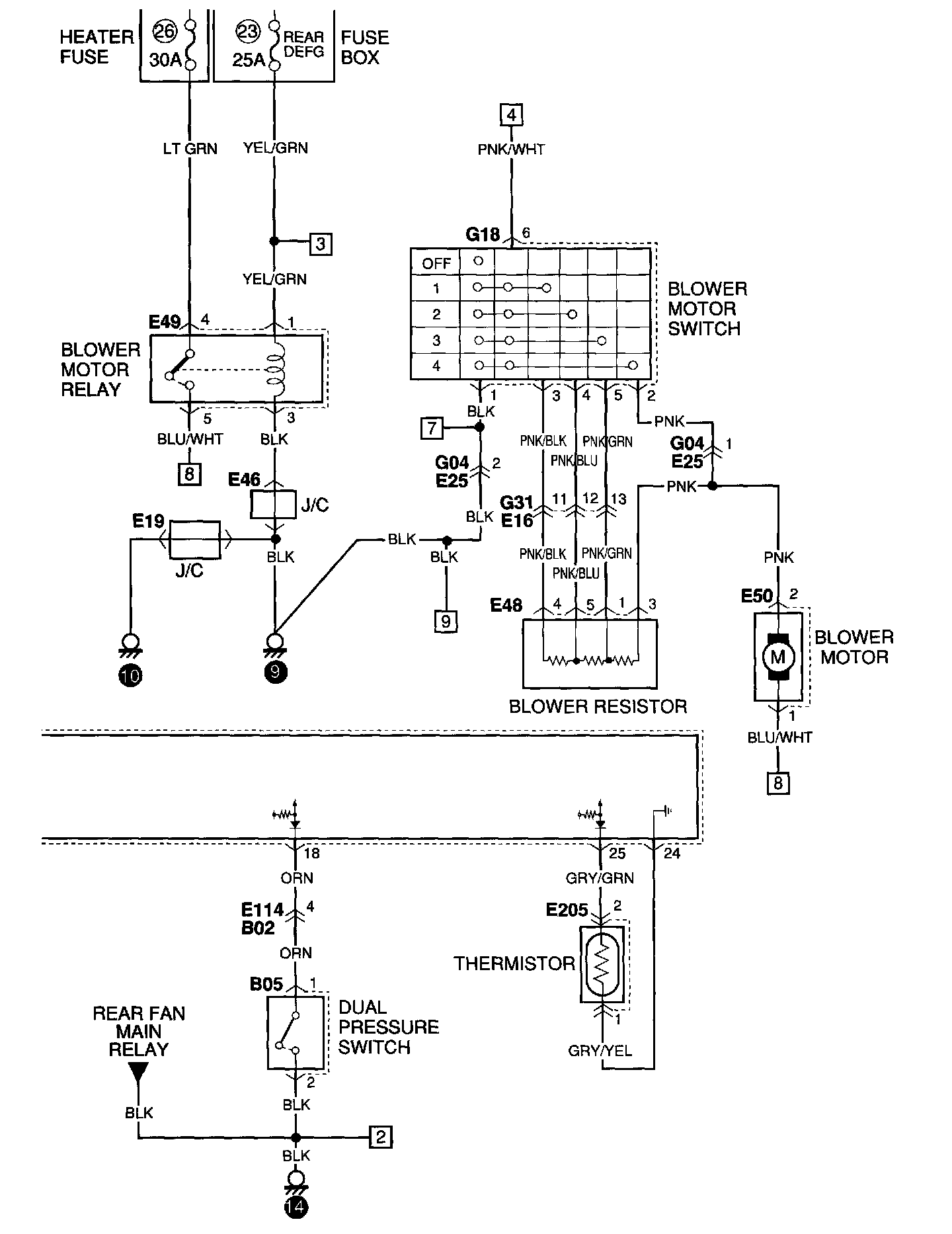

Air Condition / Heater Circuit Diagram Part 1:

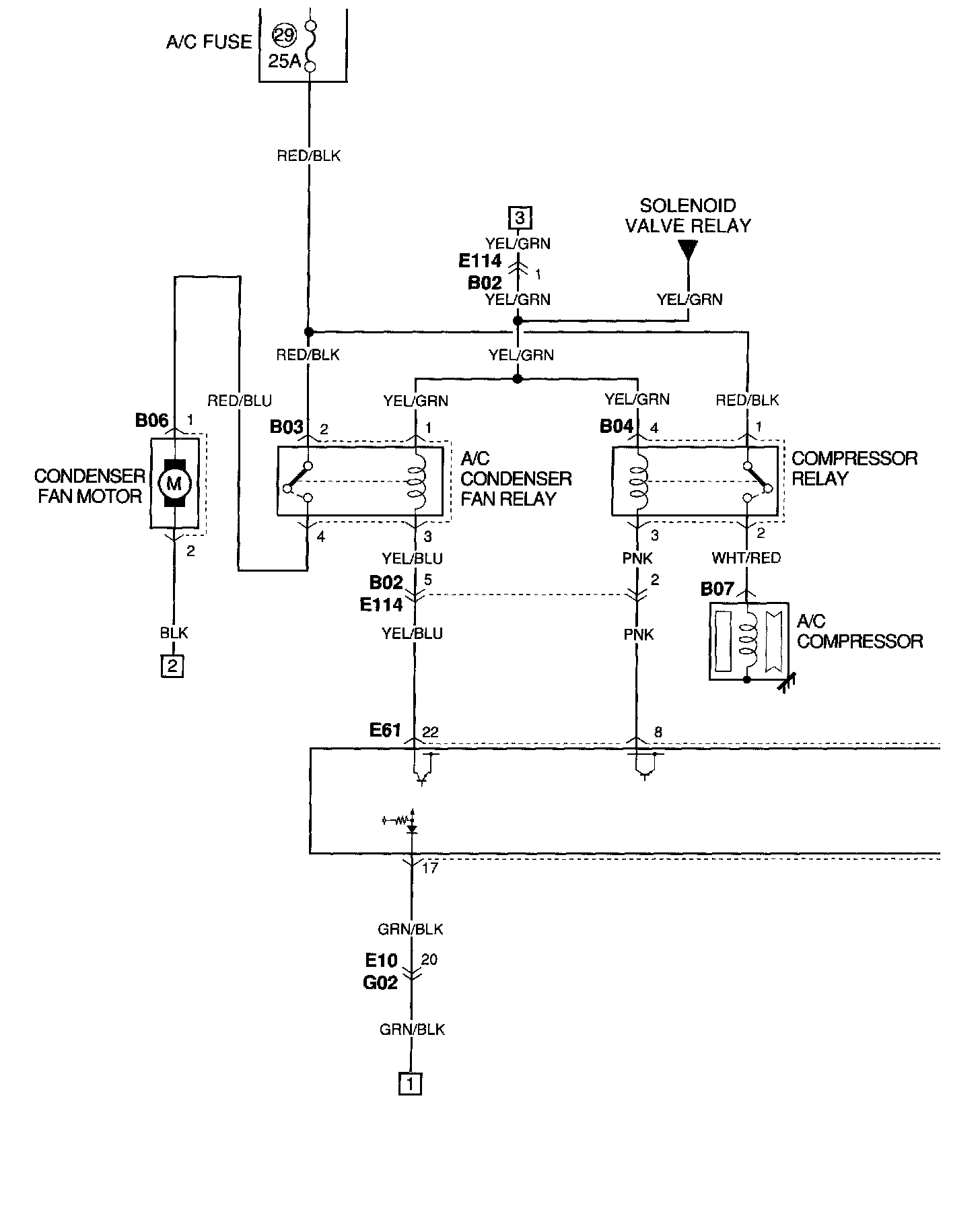

Air Condition / Heater Circuit Diagram Part 2:

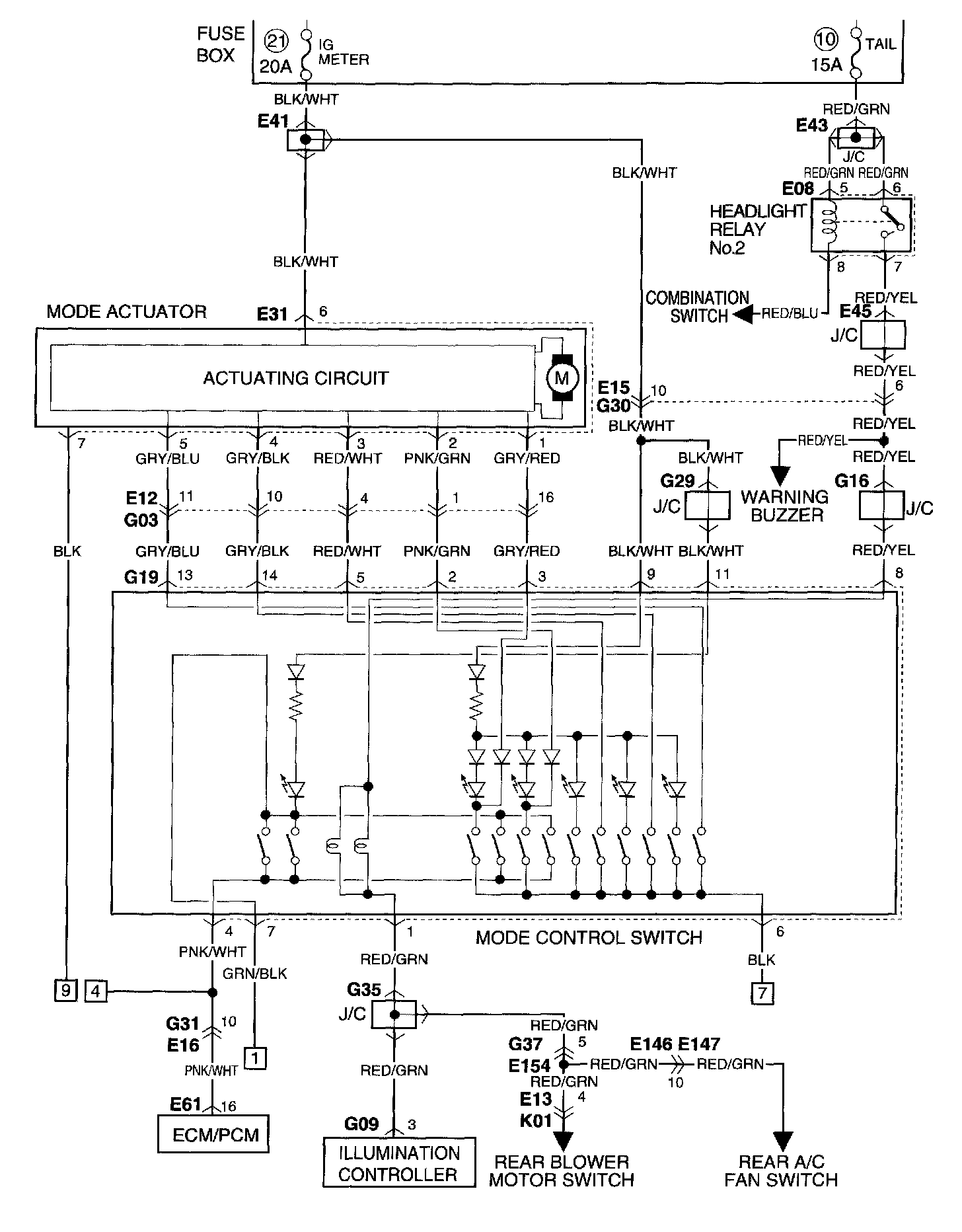

Air Condition / Heater Circuit Diagram Part 3:

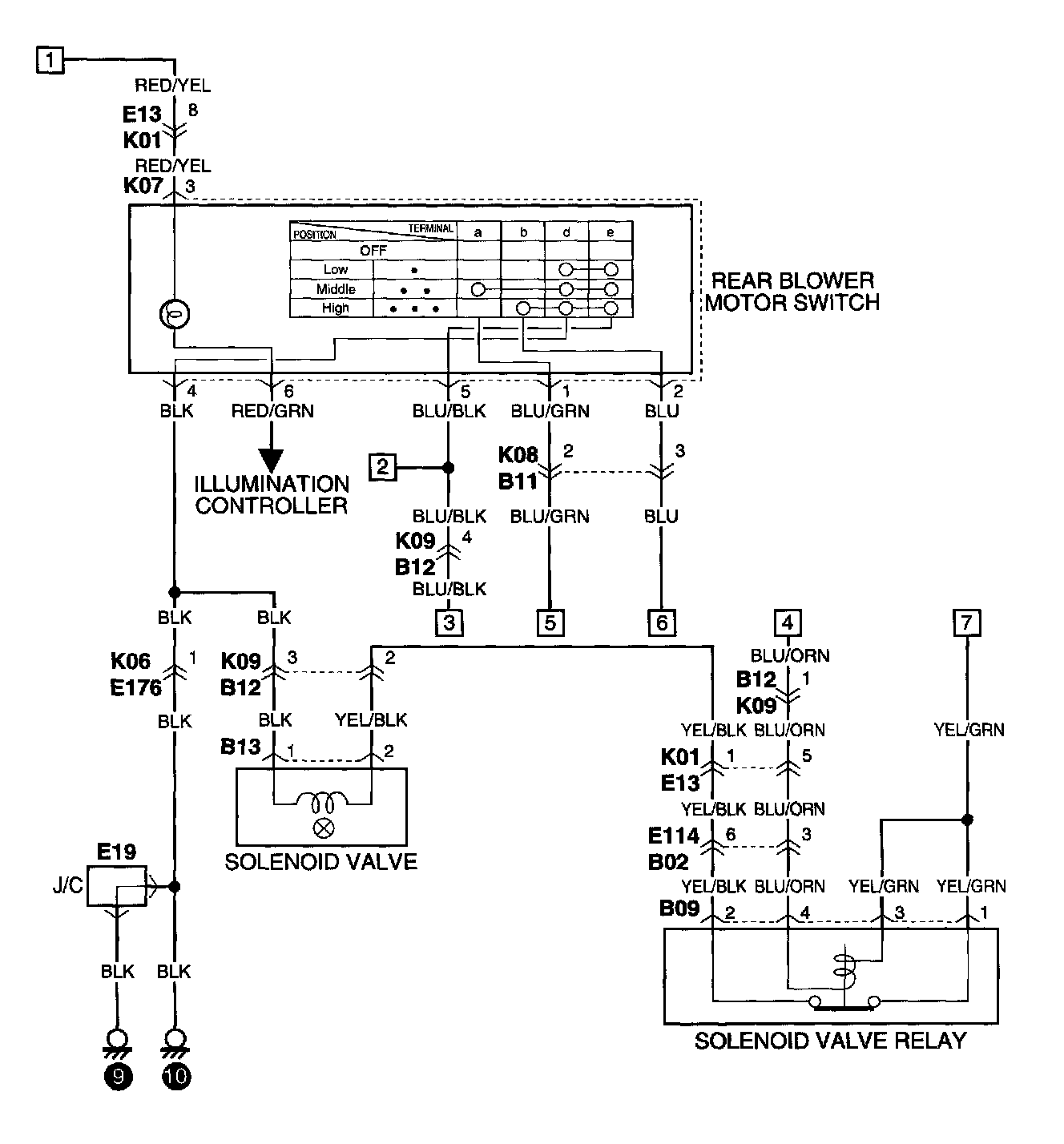

Rear Air Condition Circuit Diagram Part 1:

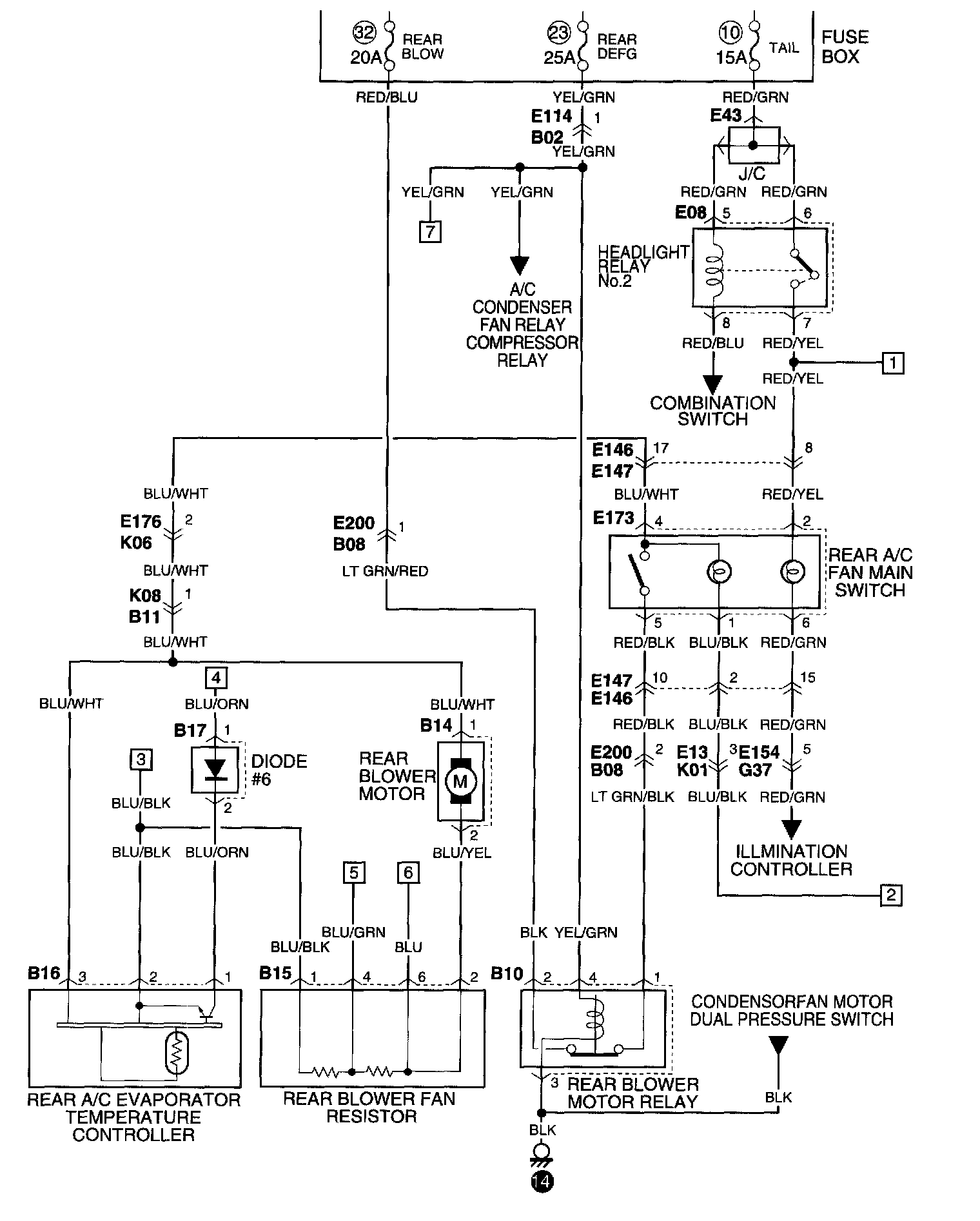

Rear Air Condition Circuit Diagram Part 2:
