L Connectors

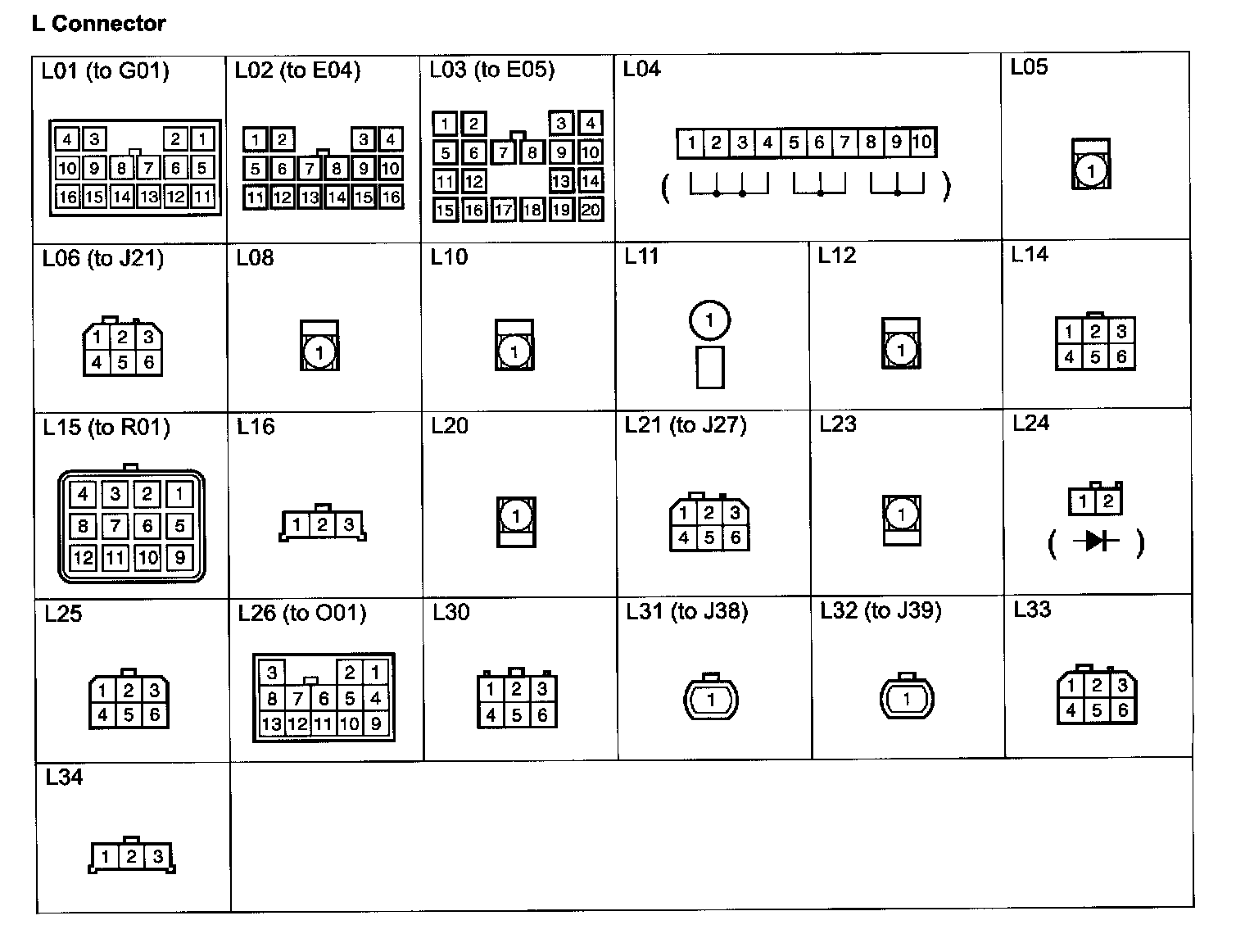

NOTE: The illustrations below show the harness side connectors, but not the component side connectors.

L01 - L34:
