Heating and Air Conditioning
Terminal Arrangement Of ECM (PCM):

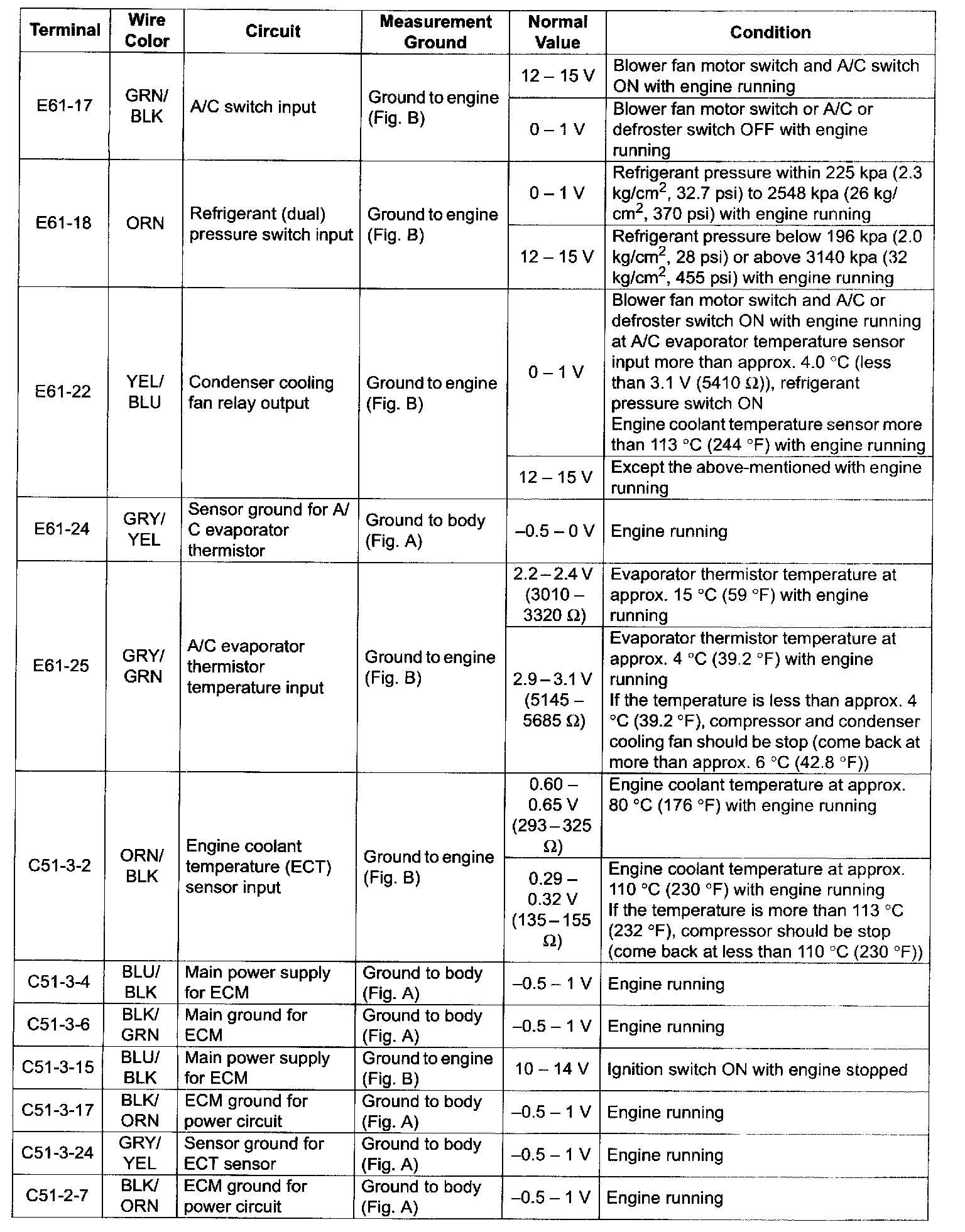

ECM (PCM) Voltage Values Table For Relation Of A/C Control Part - 1:
ECM (PCM) Voltage Values Table For Relation Of A/C Control Part - 2:
