P0461

DTC P0461: Fuel Level Sensor Circuit Performance

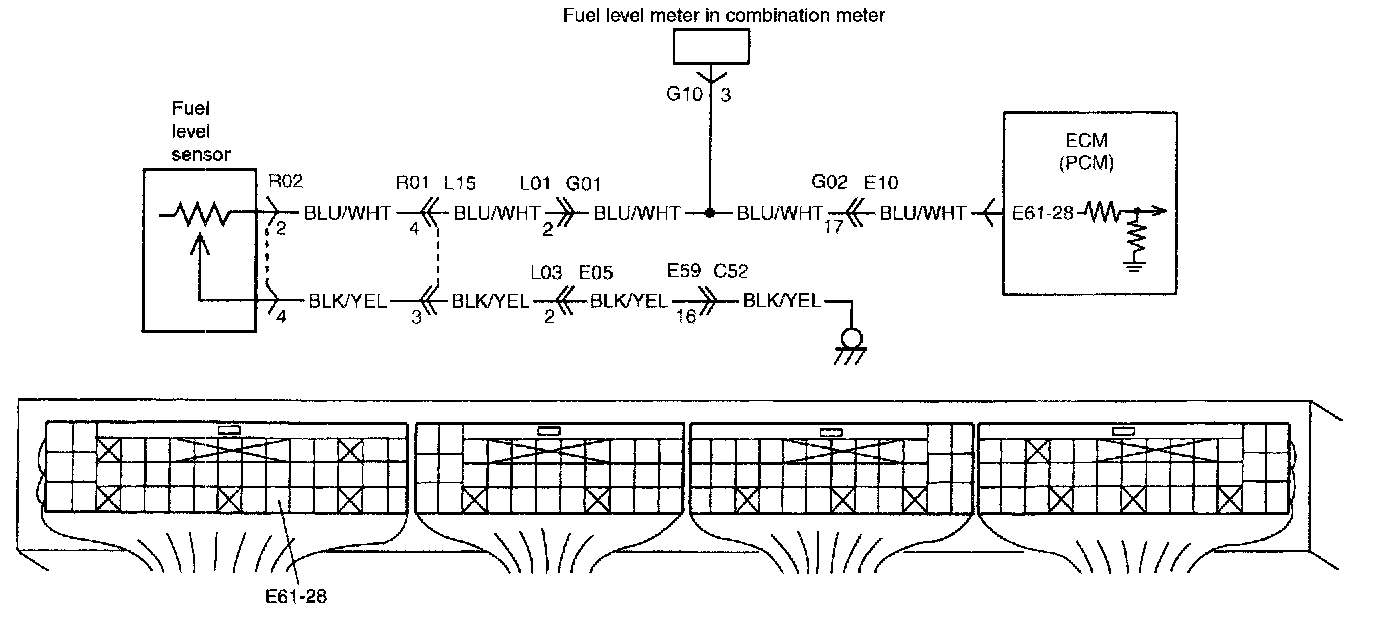

Wiring Diagram:




Wiring Diagram

DTC Detecting Condition / Trouble Area:




DTC Detecting Condition and Trouble Area

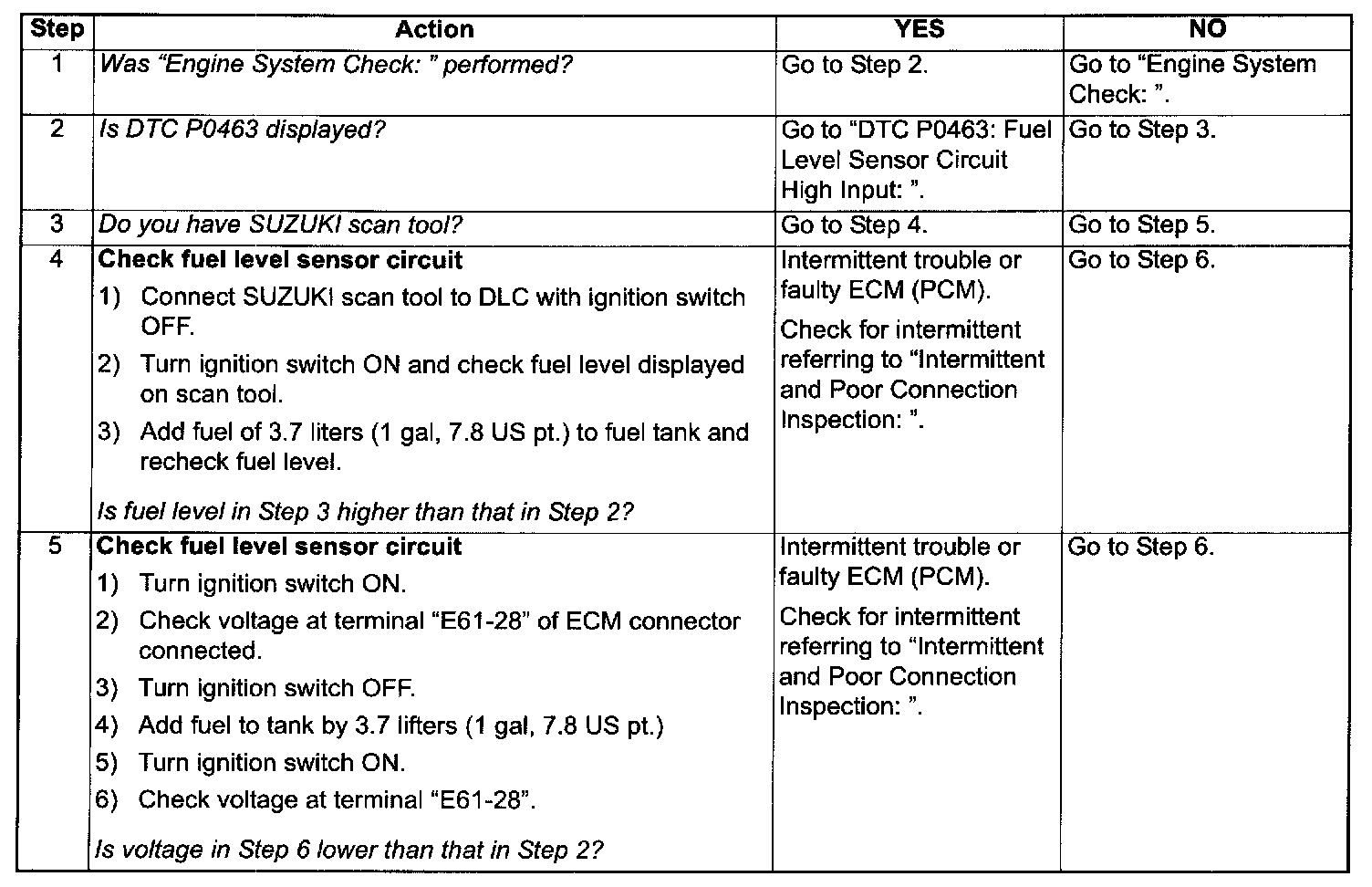

Step 1 - 5:

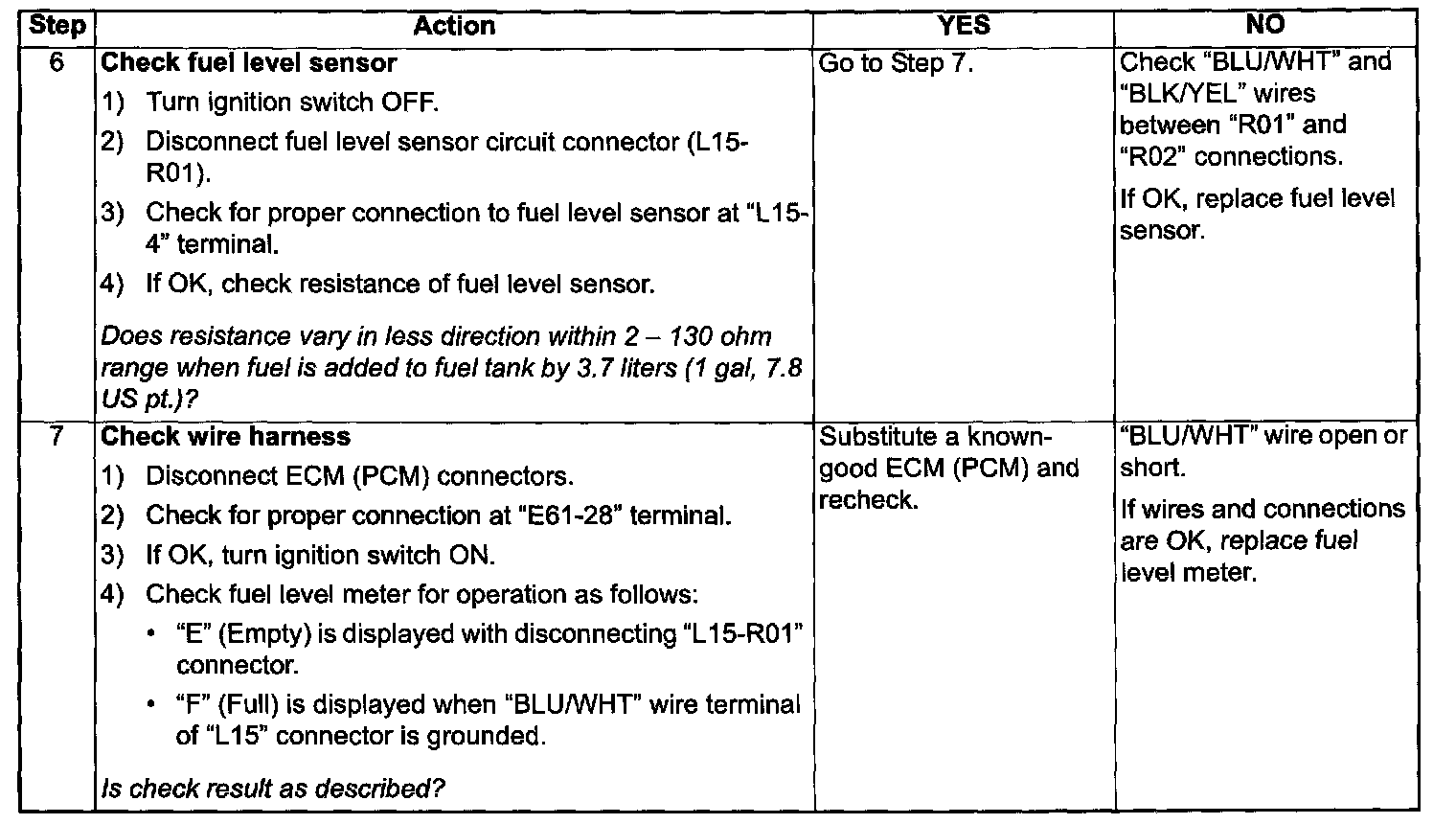

Step 6 - 7:




DTC Troubleshooting
